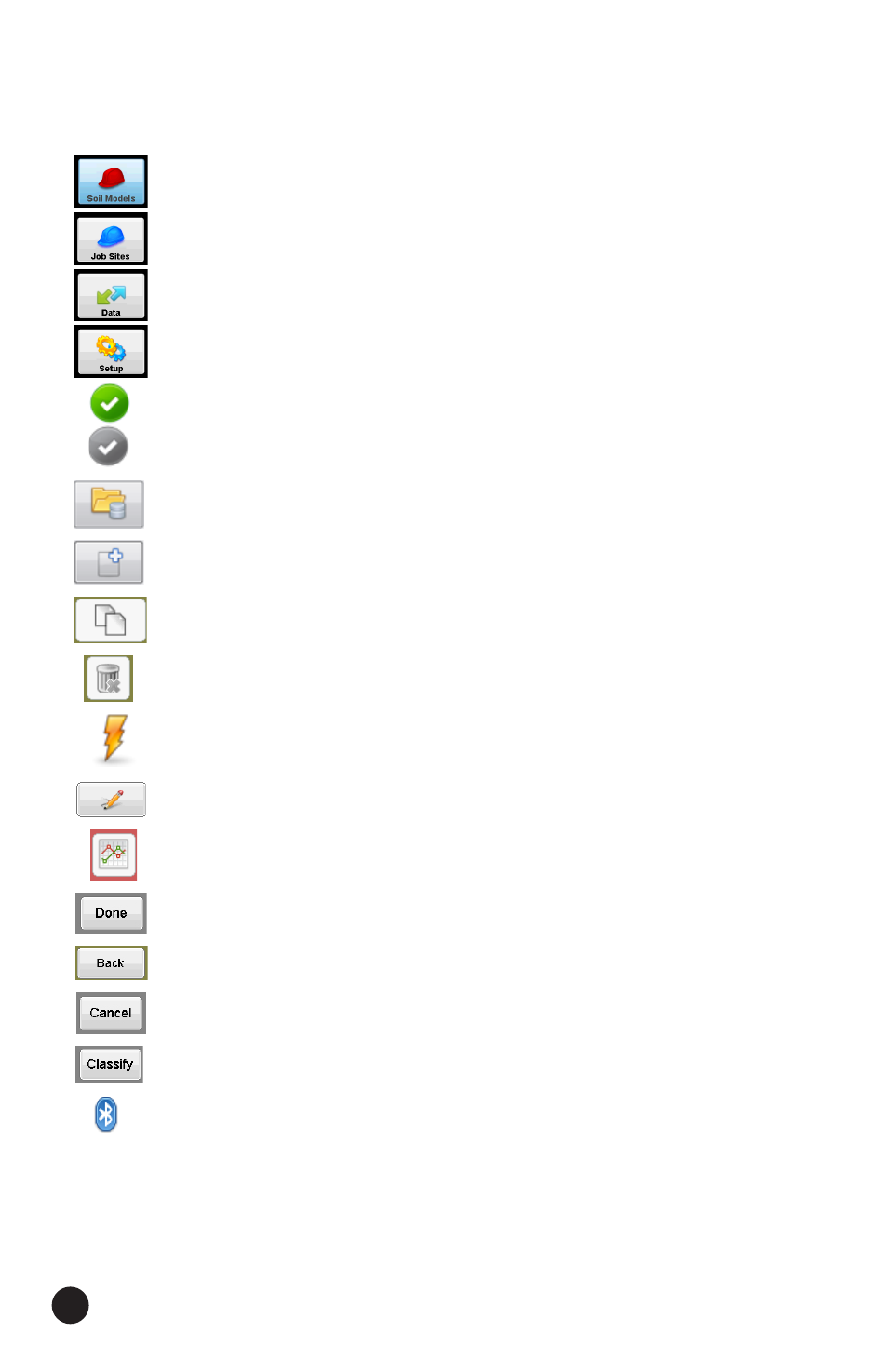

EDG Screen Icons
Takes you to the Soil Models Screen where
you can create and store Soil Models data
Takes you to the Job Sites Screen where
you can create and store Job Sites data
Takes you to the Data Screen where you can
transfer data to and from the EDG
Takes you to the Setup Screen where you can set Date,
Time, Engineering info, Humboldt Contact data
OK or Select buttons. Used to select current Soil Model
or Job Site. When selected circle is gray. Also used to
OK information typed into keyboards.
Add button, used to add a new Soil Model or Job Site
Copy button, used to copy an existing Soil Model or Job Site
Trash button, used to delete Soil Model or Job Site
Test button, used to run a test for either Soil Models or Job Sites
Edit button, used to edit selected Soil Model or Job Site data
Graphs button, used to view and edit Fit details of Soil Models
Done button, used to complete an operation
Back button, used to return to the previous screen
Cancel button, used to cancel current operation
Classify button, used to view and edit Soil Classifications
of Soil Models
Blue Tooth Connectivity Icon
Projects button, used to access list of Soil Models or Job Sites
