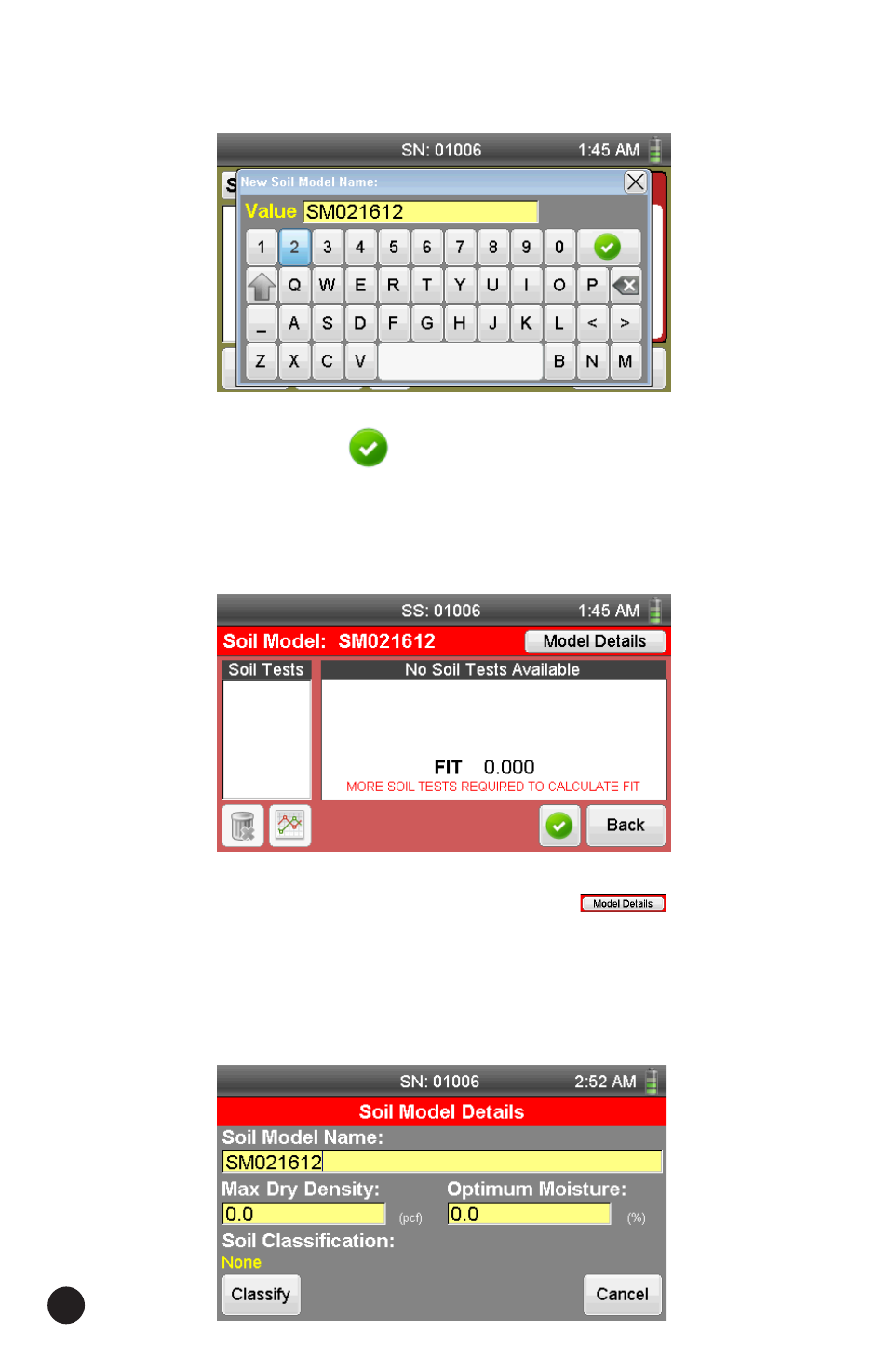

7. Type in a name for this Soil Model, which can be up to 8 characters
long, i.e. soil type, date, location, test reference number, etc.
8. Press the Select button to save the Soil Model you have created.
9. Once saved, a screen with your soil model name will appear with no
data; stating: "No Soil Tests Available".
10. On this screen, press the Model Details button on the top
right of the screen.
This screen is used to record your Soil Model Details (Proctor Data), as
well as the Unified Soil Classification information or soil characteristics,
if desired.
