Humboldt H-4114SD.3F Electrical Density Gauge User Manual
Page 29
24. Performing Soil Tests

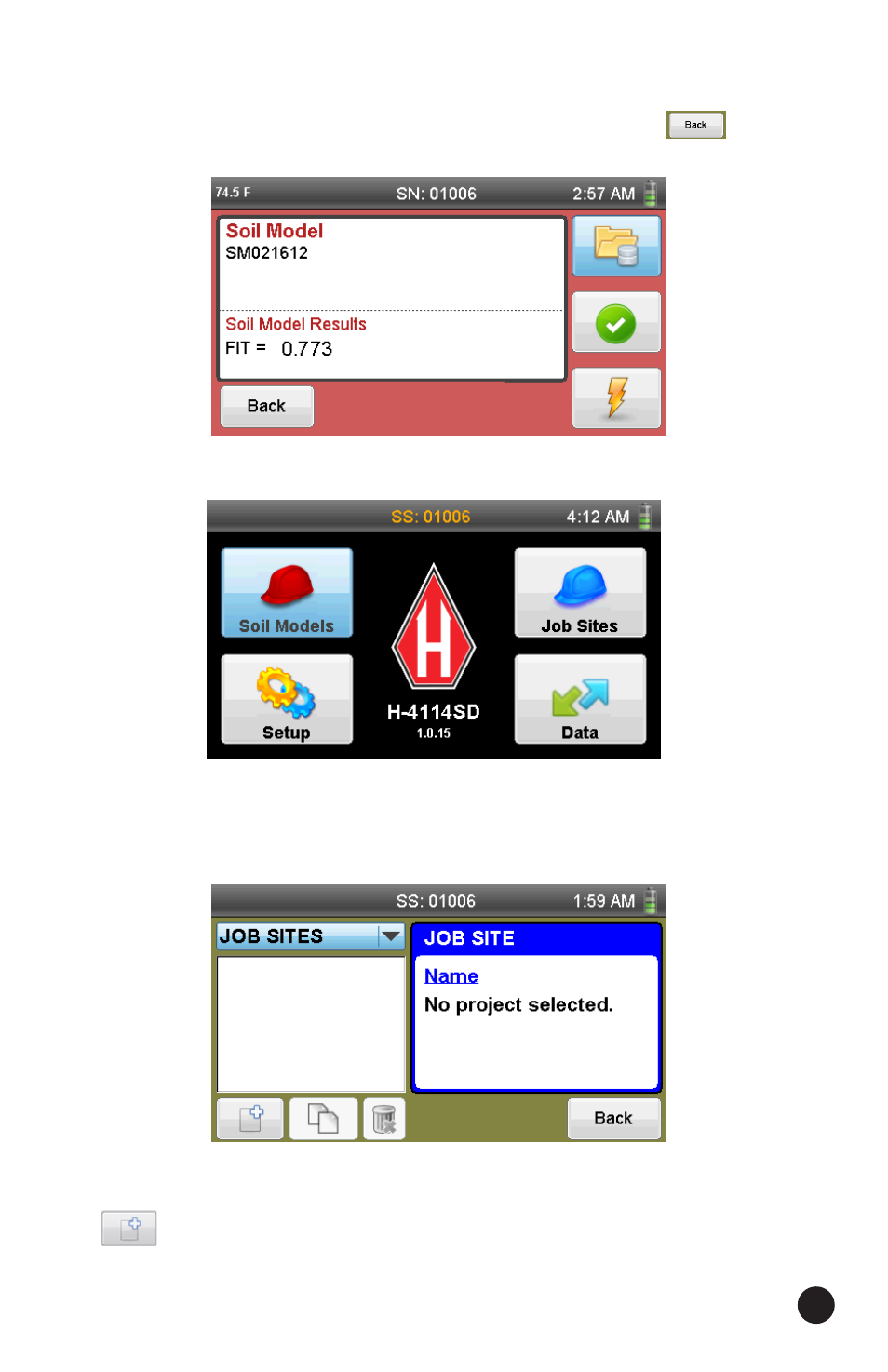

To begin Soil Testing with the EDG, if you are still on the screen below
after completing your soil model, press the Back button
.
You will see the home screen below:
And, If you have turned the gauge off before beginning your Soil
Testing, you will also see this screen. Press the Job Sites button with
the blue helmet. You will see this screen:
From this screen, create a new Job Site by pressing the Add button
in the lower left of the screen.
26
