Humboldt H-4114SD.3F Electrical Density Gauge User Manual
Page 27

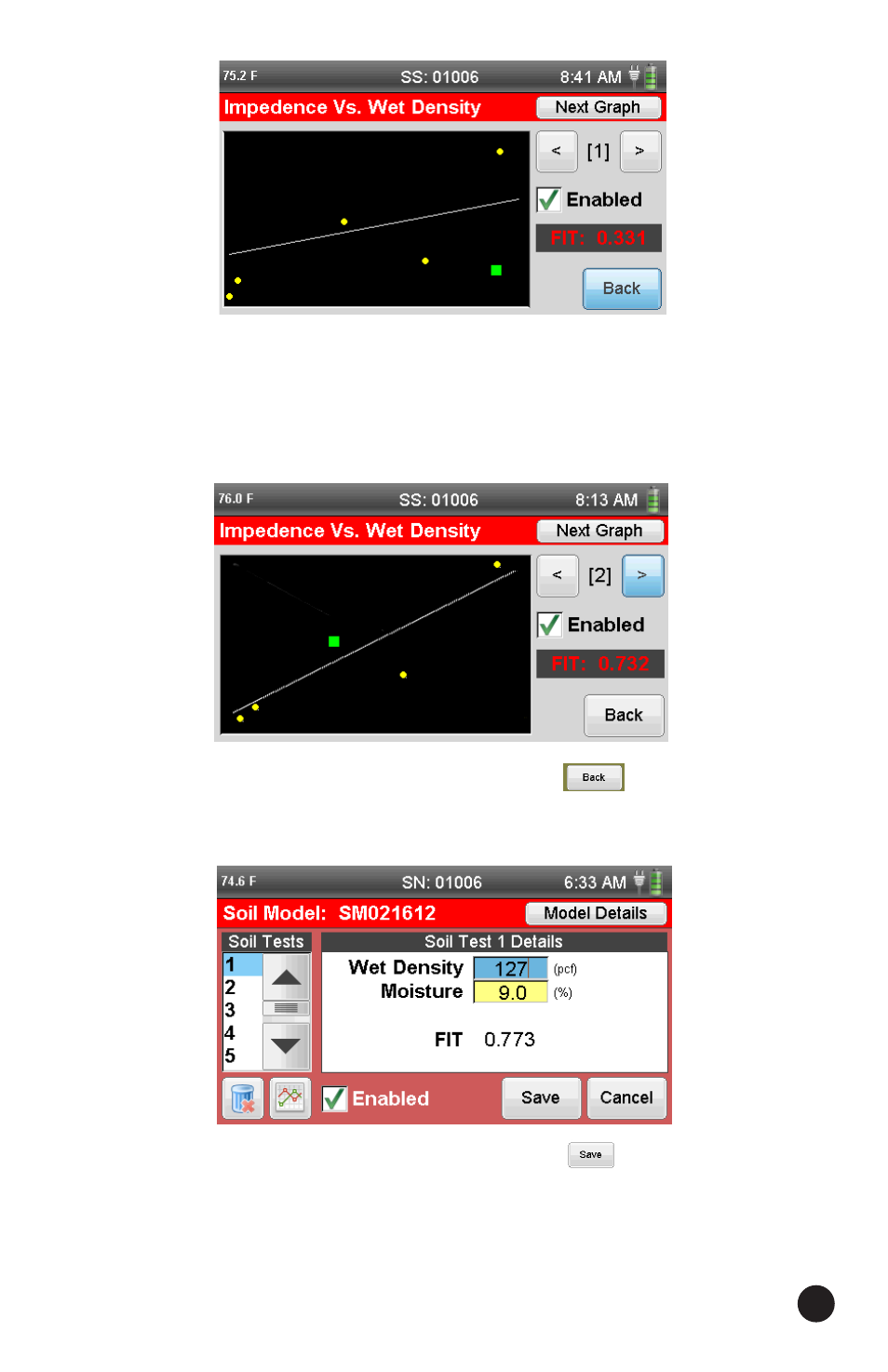

By turning off outlying point 1 on the Graph, the Curve is redrawn and
the FIT improves to 0.732, as shown in the Graph below. This creates
a much tighter and more accurate Curve, which will result in more
accurate readings when using the EDG.
To save these changes, press the Back button
, which will return
you to this screen:
To save these changes, press the Save button
, which will return
you to this screen:
24
