Dell™ OptiPlex™ 760 Service Manual
I/O Panel
I/O Panel
Removing the I/O Panel
1. Follow the procedures in Working on Your Computer .
2. Remove the computer cover (see Removing the Computer Cover ).
3. Remove the screw that secures the I/O panel. Press the release button to slide the card away from the front of the computer.
4. Disconnect all of the cables from the I/O panel, and remove the panel from the computer.
Replacing the I/O Panel
1. To replace the I/O panel, follow the removal procedure in the reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
NOTE: Note the routing of all cables as you remove them so that you can re-route them correctly when installing the new I/O panel.
CAUTION: When sliding the I/O panel out of the computer, be extremely careful. Carelessness may result in damage to the cable connectors and
the cable routing clips.

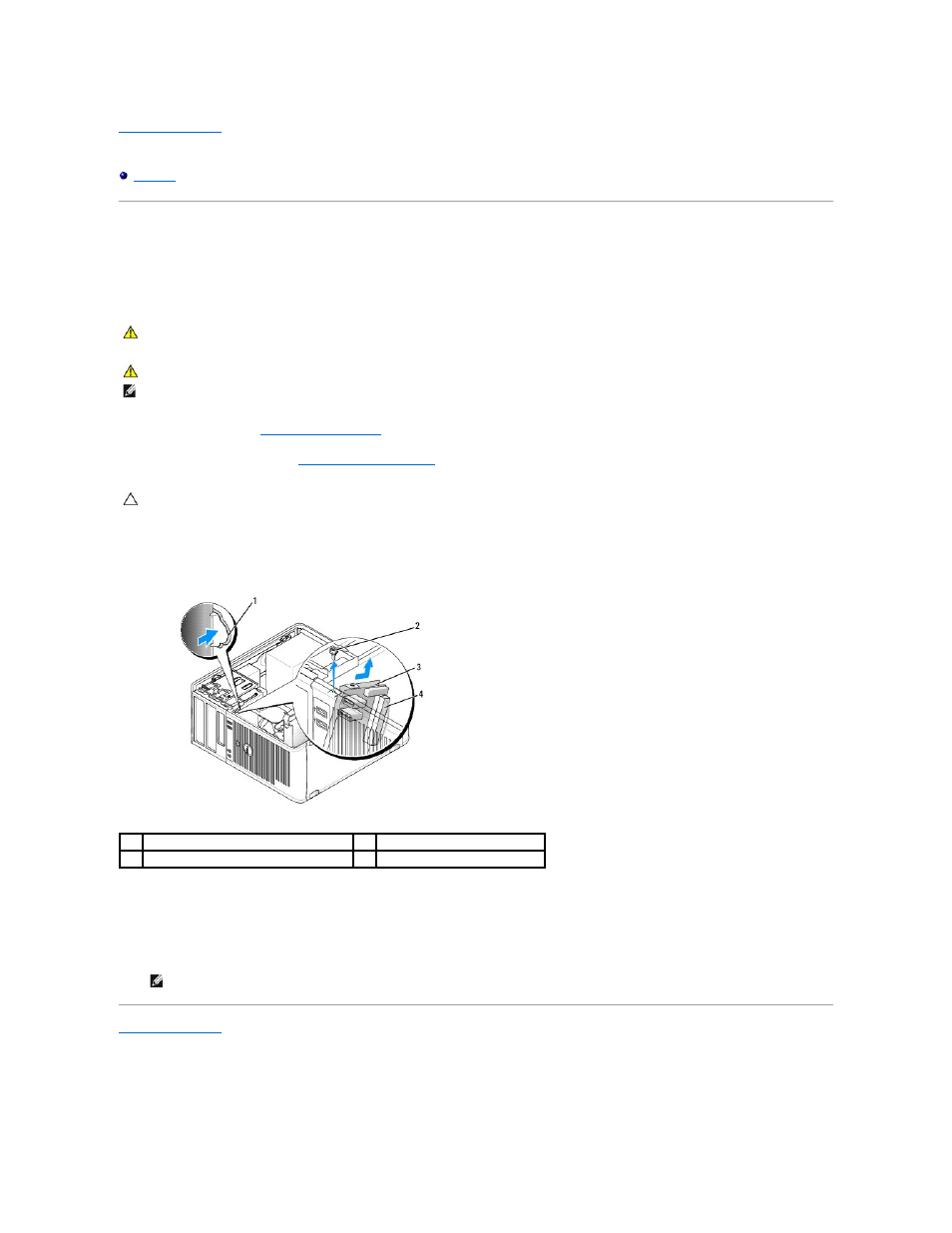

1 I/O panel release button 2 securing screw
3 I/O panel 4 I/O cable connector
NOTE: Use the guides on the I/O panel bracket to help position the I/O panel in place, and use the notch on the I/O panel bracket to help seat
the panel.
