Dell™ OptiPlex™ 760 Service Manual
I/O Panel
Removing the I/O Panel
1.
Follow the procedures in
Working on Your Computer
.
2.
Remove the computer cover (see
Removing the Computer Cover
).
3.
Remove the screw that secures the I/O panel to the desktop computer.
4.
Gently rotate and slide the I/O panel away from the computer.
5.
Remove the cable from the I/O panel by pulling on the pull tab.
Replacing the I/O Panel
To replace the I/O panel, follow the removal procedures in the reverse order.
Back to Contents Page
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING:
To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
NOTE:
Note the routing of all cables before disconnecting them, so that you can re route them correctly when installing the new I/O panel.
CAUTION:
When sliding the I/O panel out of the computer, be extremely careful. Carelessness may result in damage to the cable connectors and
the cable routing clips.

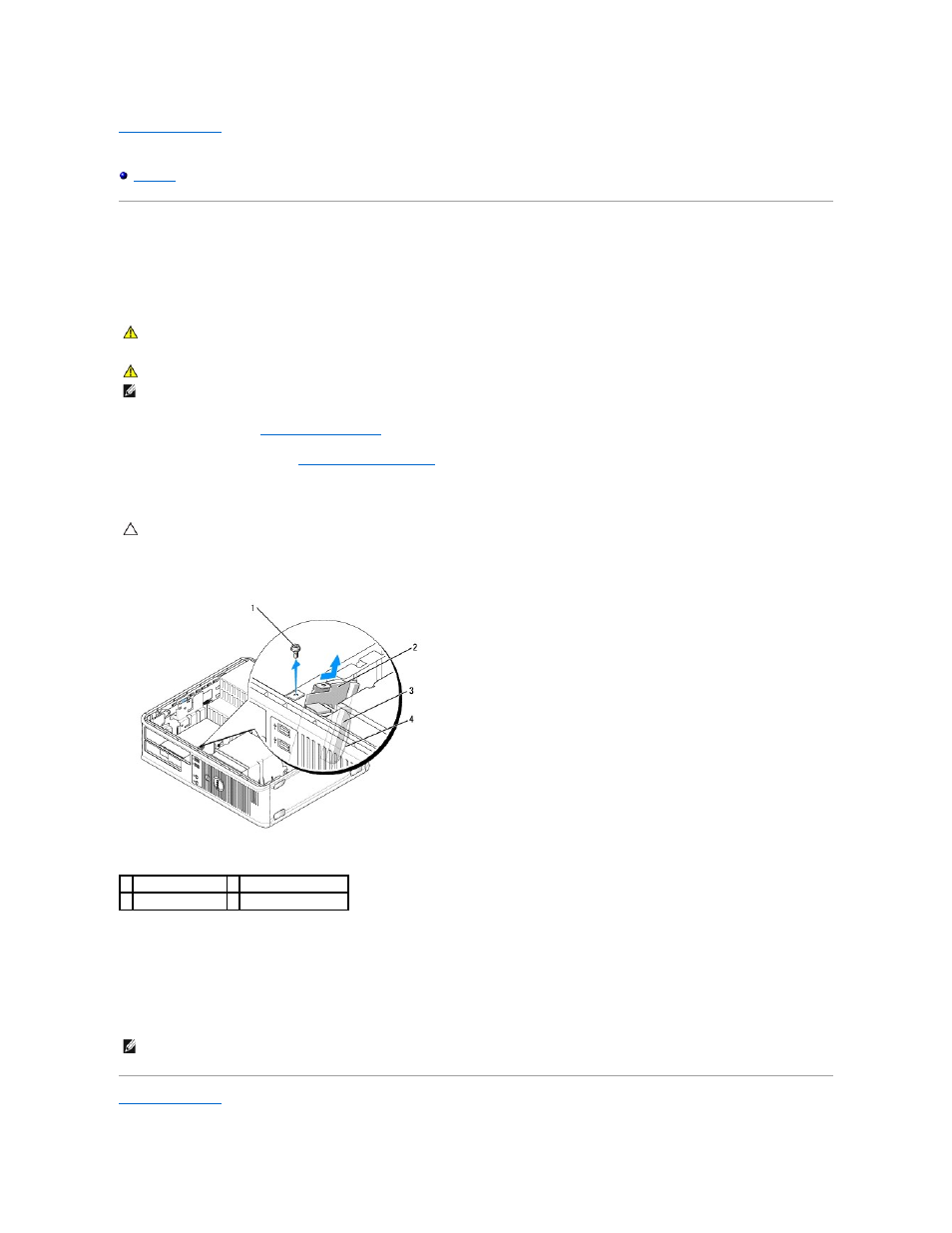

1 securing screw
2 I/O panel
3 I/O cable connector 4 I/O connector pull loop
NOTE:
Use the guides on the I/O panel bracket to help position the I/O panel in place and use the notch on the I/O panel bracket to help seat the card.
