Ethernet Radio Configuration Guide
Section 3 – Using the Configuration Web Server Page 19
If there is a Repeater in your Ethernet radio network, you need to identify how the devices talk and
listen to each other and then configure the Subnet ID fields appropriately for each Ethernet radio

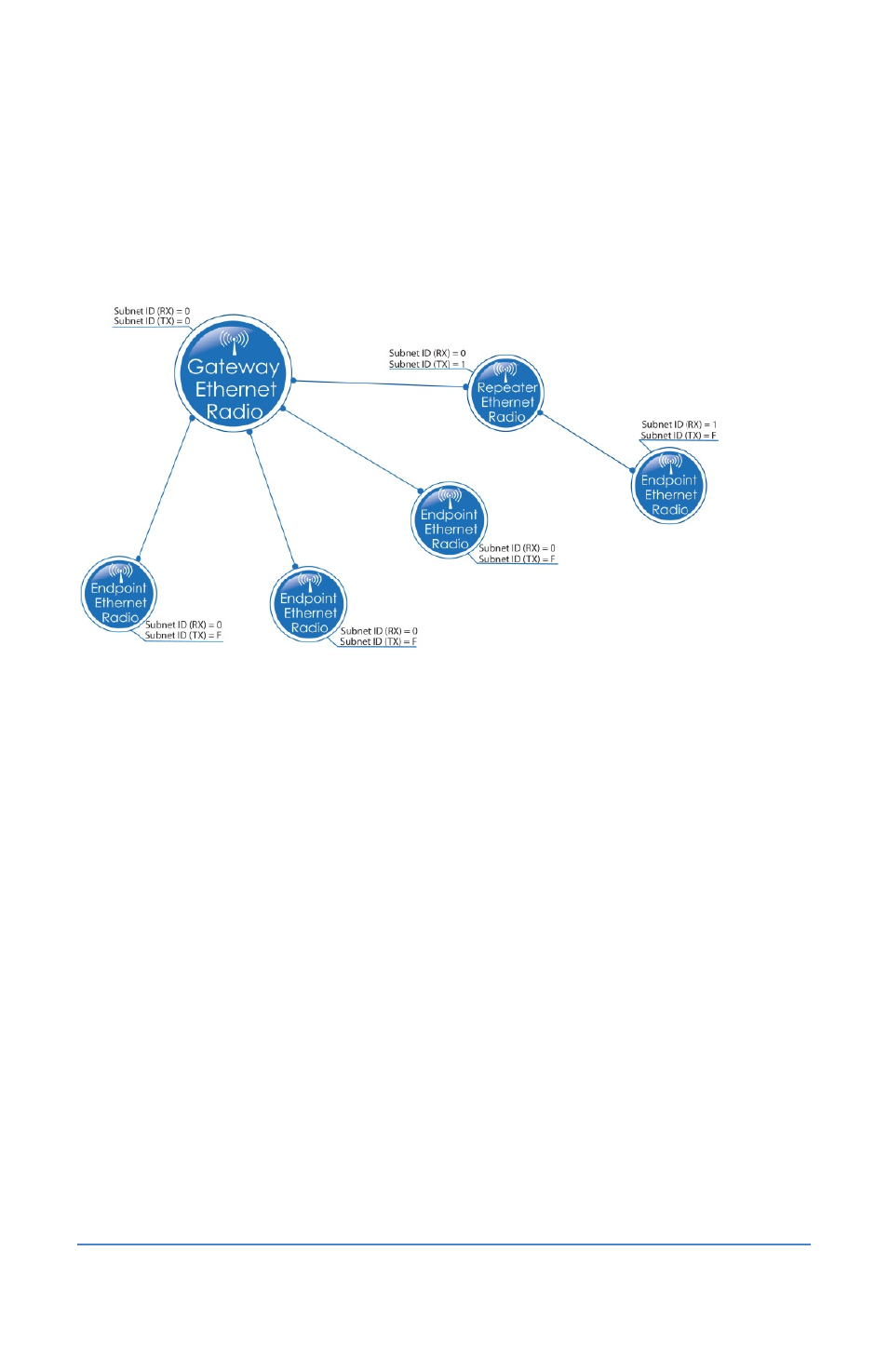

unit. In the example below, notice the Subnet ID values for the individual radios.
Note: While the valid values for the Subnet ID fields don’t have intrinsic meanings, it might be
helpful to think of 0 as the identifier for the Gateway and F as “final,” which indicates that the
device is the final in the line and does not use a subnet ID.
Note: For help with the tasks associated with configuring a Repeater, refer to Section 2 on page 7
of this document.
