Baseline Systems Ethernet Radio User Manual
Installing the ethernet radio unit

BL-ER-X Ethernet Radio Unit for X/XS Cabinet
Installation Guide
1-866-294-5847
Rev 8.19.2014
www.baselinesystems.com
Installing the Ethernet Radio Unit
1. Remove the Ethernet radio unit and the antenna from its packaging.

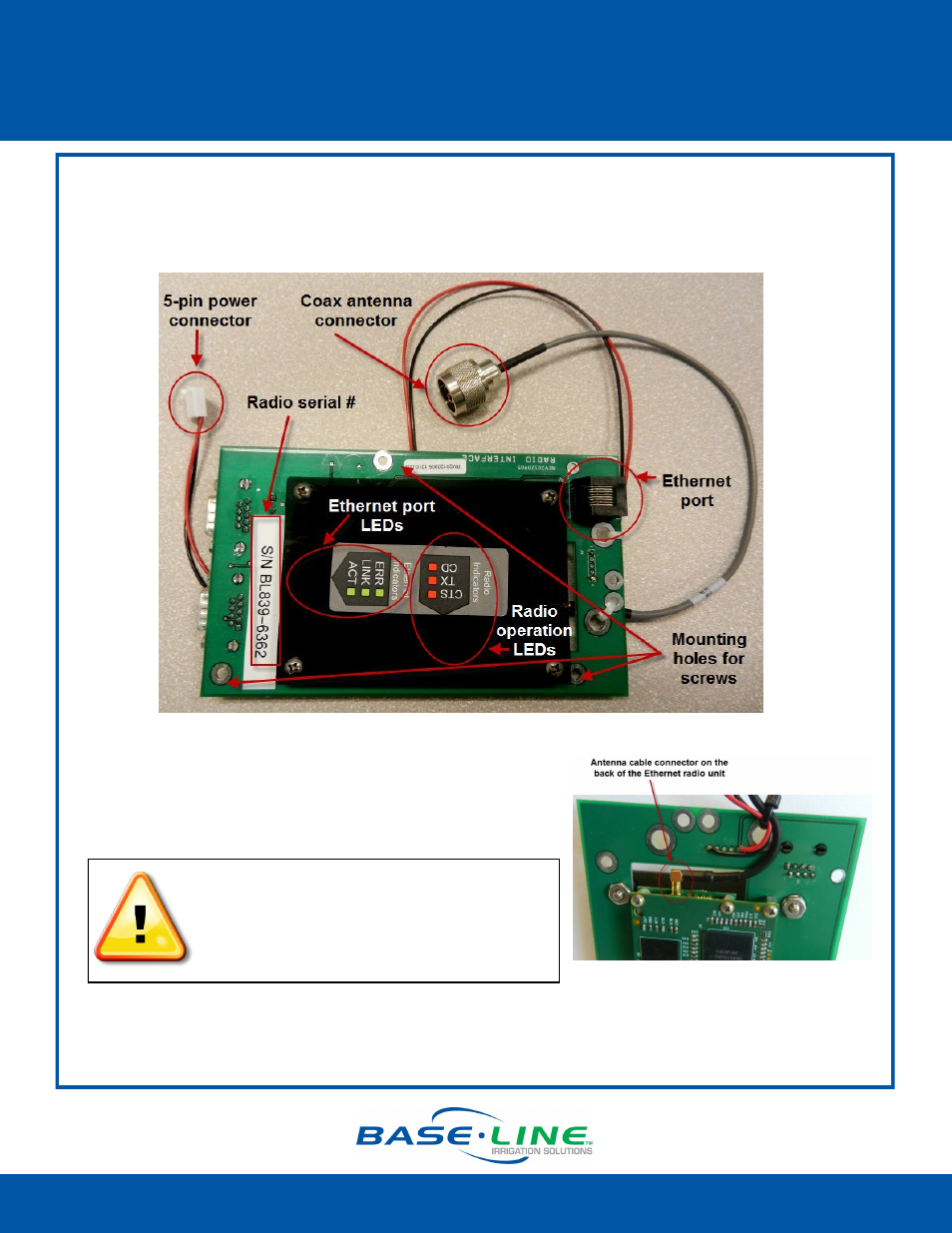

2. Familiarize yourself with the parts labelled in the illustration below.
3. Inspect the antenna cable connection on the back
of the Ethernet radio unit to ensure that it is securely
connected.
Continued
IMPORTANT!
Make sure the antenna cable remains
securely attached to the connector on the Ethernet
radio. If the radio is powered up with a loose or
disconnected antenna, damage may occur to the
circuitry. This damage is not covered by warranty.
Page 1
