Baseline Systems Ethernet Radio User Manual
Baseline Systems Radio

BL-ER-P Ethernet Radio Unit for Pedestal
Installation Guide
1-866-294-5847
Rev 8.19.2014
www.baselinesystems.com

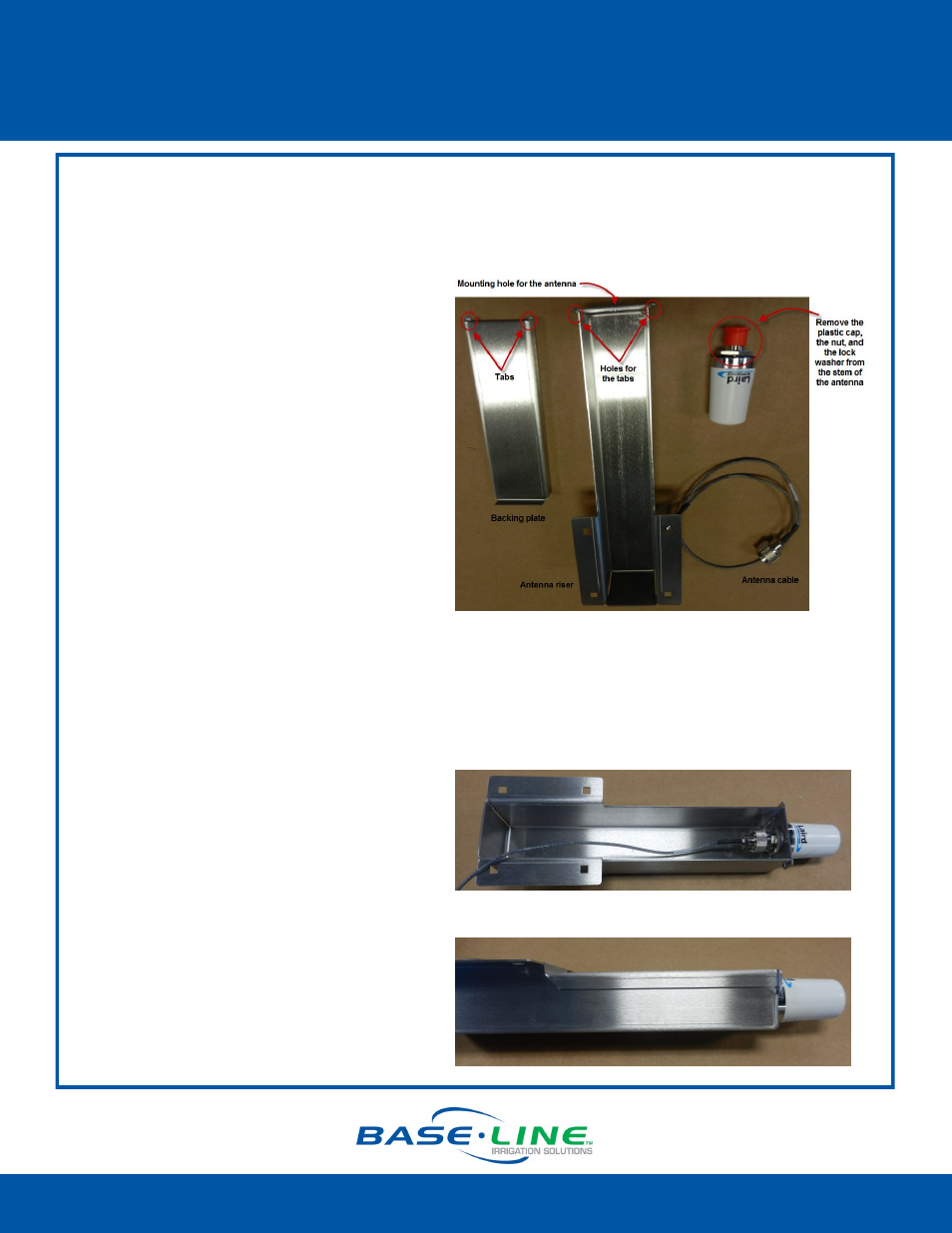

Assemble the Antenna Riser
1. Remove the antenna riser assembly and the antenna from its packaging.
2. Remove the plastic cap, the nut, and the lock washer from the stem of the antenna.
3. Put the stem of the antenna through the
mounting hole on the top of the
antenna riser so the antenna is
positioned on top of the riser.
4. Put the lock washer onto the stem of the
antenna, and then thread the nut onto
the stem. Use a wrench to tighten the
nut sufficiently to ensure that the
antenna makes good contact with the
antenna riser.
5. Remove the Ethernet radio unit from its
packaging.
6. Locate where the antenna cable is
connected on the Ethernet radio unit, and then gently unplug the connector from the
radio.
7. Return the Ethernet radio unit to its packaging so it stays clean and dry.
8. Thread the coax connector on the antenna cable onto the stem of the antenna and
hand-tighten it. Route the antenna
cable towards the bottom of the
antenna riser.
9. Insert the tabs on the backing plate into
the holes at the top edge of the riser and
make sure the plate is snug along the
back of the riser.
Page 1
