Multi-function Drill Control
38b
The Control Switches

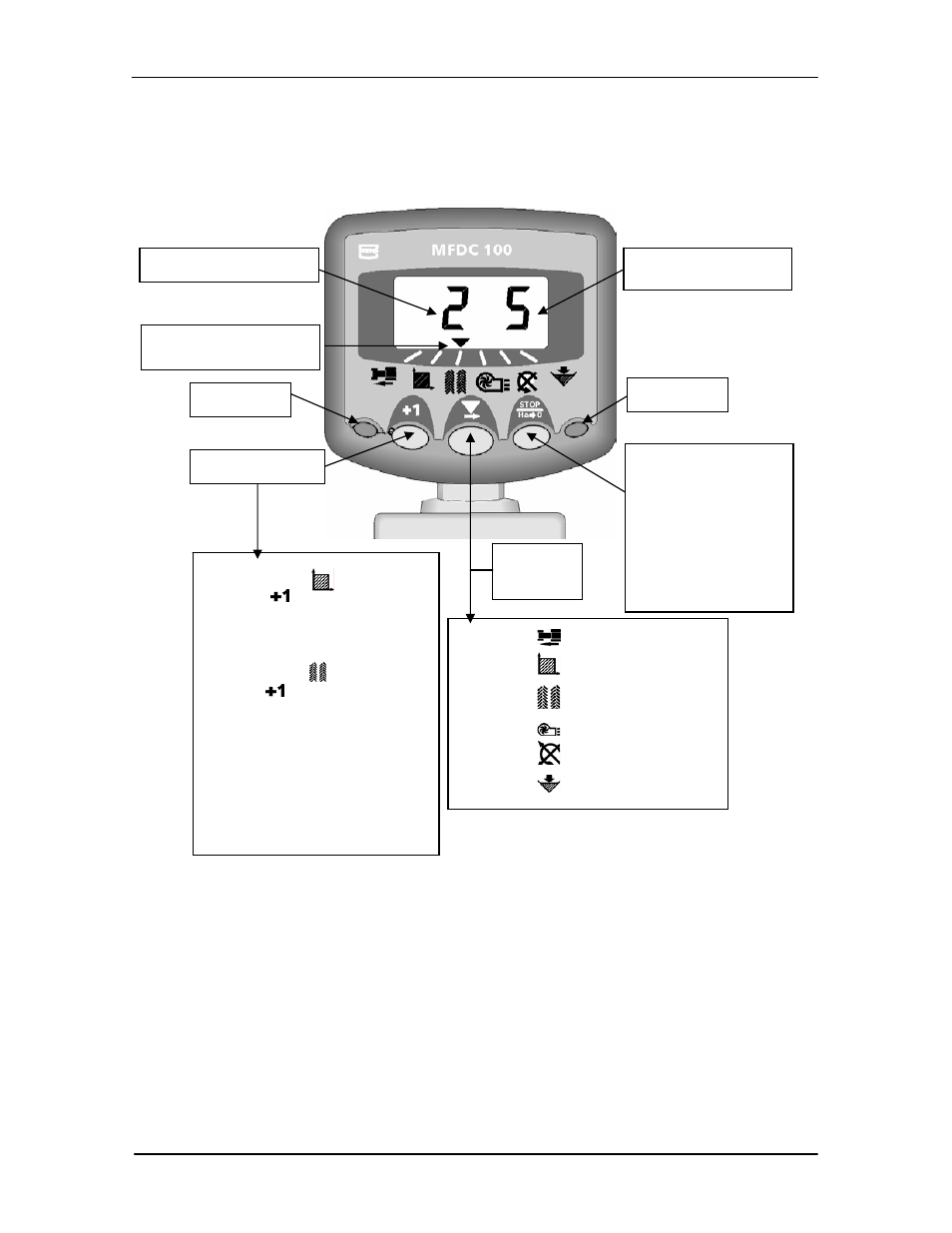

There are three active switches on the front panel used individually or in combination to program set/reset or
select a function. The two small outer buttons have no function.
1. Select the channel then
PRESS to switch between
Area Total 1 and 2.
OR:
2. Select the channel then
PRESS to manually advance
the Bout Number.
OR:
3. HOLD continuously to select the
programming mode. (Normal Mode
is resumed when the button is
released).
Select
Channel
PRESS to override
automatic advance of
bout number if drill is
lifted, (press again to
resume)
OR:
HOLD to reset
currently displayed
Area Total
Channel /
In-Out of Work Indicator
Current Bout No.
Pre-set Tramlining
Bout
Not used
Not used
Program Key
Channel 1
Forward Speed
Channel 2
Area Total 1 or 2
Channel 3
Current/Tramline Bout
Channel 4
Fan RPM
Channel 5
Seed Shaft RPM
Channel 6
Hopper Level Low
