Page 21

19
9/13/2006
NTA 2000D 148-632M
Great Plains Mfg., Inc.

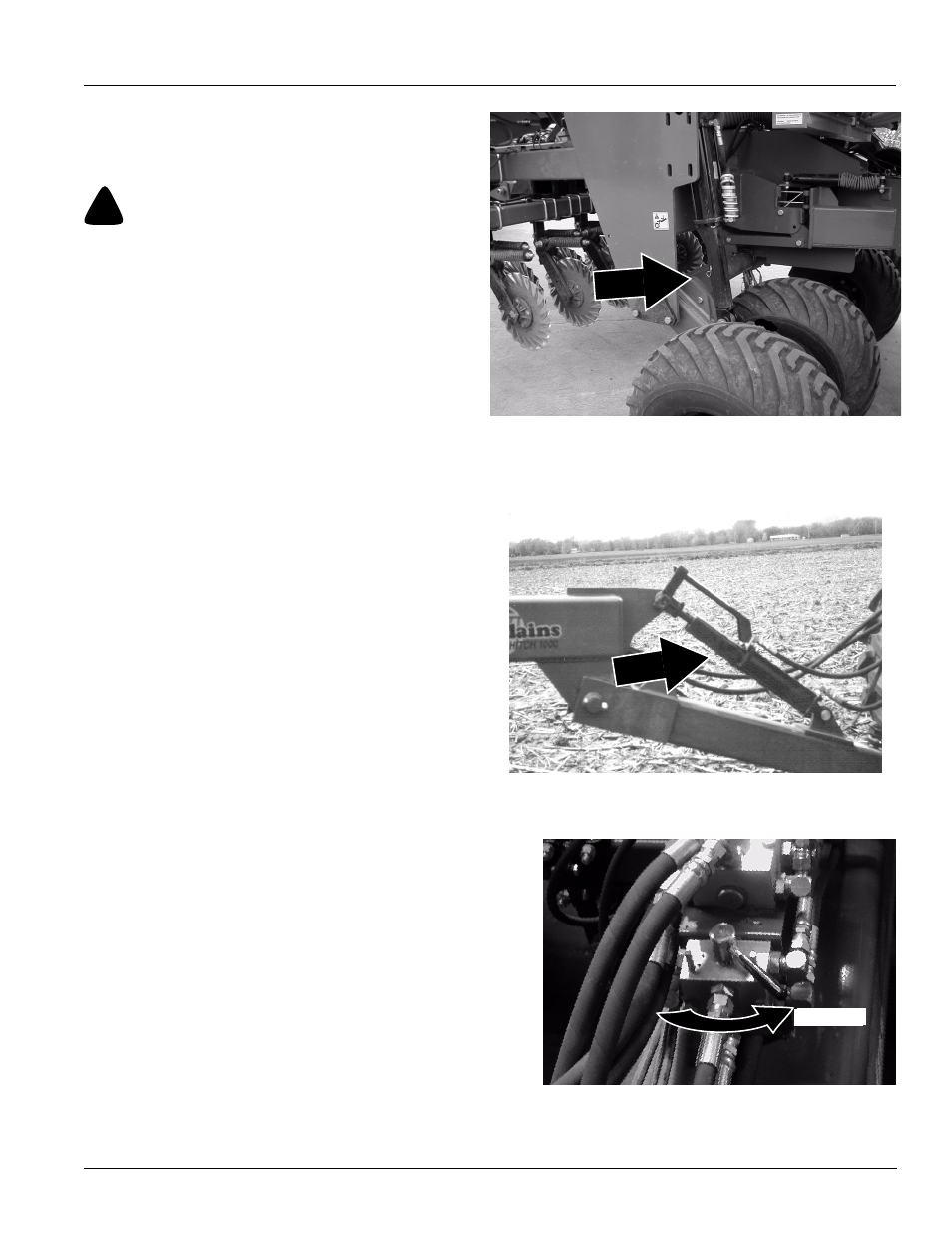

Figure 5
Lock Guard Installed
Figure 6
Lock Channel Installed
Figure 7
Valve
Folding
Folding the Drill
Fold the drill on level ground. Be aware of clearance
required to fold implement. Refer to “Specifications and
Capacities,” page 47.
!
WARNING!
Pinch Point and Crushing Hazard. To prevent serious injury or
death. Be certain the drill is hitched securely to your tractor
drawbar and the hitch safety chain is securely attached to the
tractor before raising or folding the drill.
• Always lift drill when before folding.
• Fold only if hydraulics are bled free of air and fully charged
with hydraulic oil.
• Keep away and keep others away when folding or unfolding
drill.
Note: Fold the drill on level ground with the tractor in neu-
tral.
1.
Hydraulically lift drill with transport-lift cylinders and
tongue cylinder.
Refer to Figure 5
2.
Install transport lock channels on the extended gauge
wheel cylinder rods.
Refer to Figure 6
3.
Install lock channel over extended tongue-cylinder
rod.
Refer to Figure 7
4.
Turn handle counterclockwise on valve to folding posi-
tion.
19733
17217
19732
