This section will help you prepare your tractor and imple-
ment for use.
Hitching Tractor to Implement
!
DANGER!
You may be severely injured or killed by being crushed be-
tween the tractor and drill. Do not stand or place any part of
your body between drill and moving tractor. Stop tractor en-
gine and set park brake before installing pins.

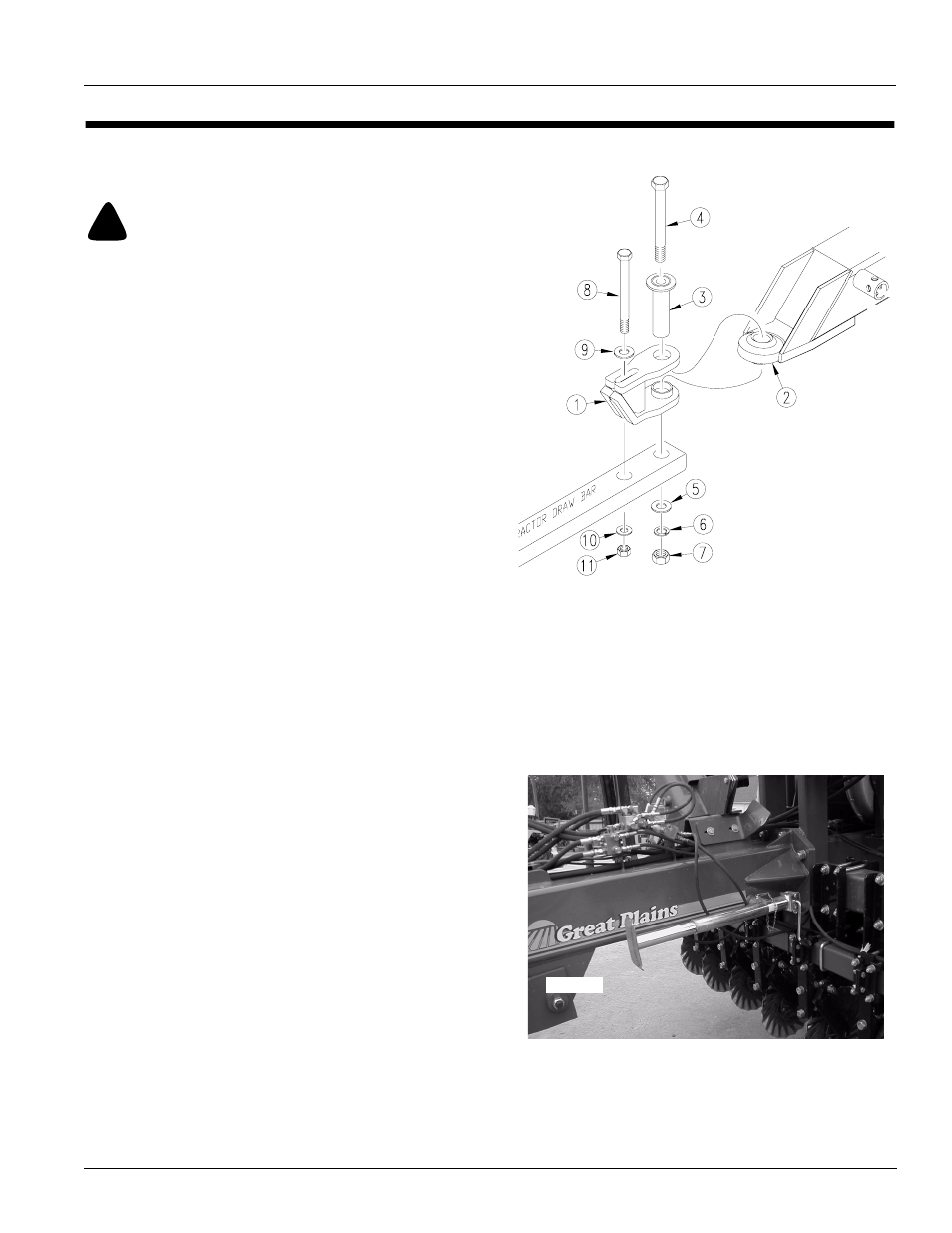

Refer to Figure 1
1. Place hitch weldment (1) over ball swivel on hitch
tongue (2). Hold hitch weldment in place by inserting
spacer tube (3) through hitch clevis and ball swivel.
2. Back tractor up to hitch and bolt hitch weldment to
tractor drawbar using 1” x 10" bolt (4), large flat
washer (5), lock washer (6), and nut (7).
3. Use 3/4” x 9" bolt (8) to bolt hitch weldment through
its slotted hole and onto secondary hole of tractor
drawbar. Install a 3/4” flat washer (9) next to top slot-
ted hole and fasten with a lock washer (10) and nut
(11). Tighten both bolts.
4. Securely attach safety chain to tractor-drawbar
frame.
5. Plug light harness and monitor leads into tractor con-
nections.
6. Connect hydraulic hoses to the tractor remotes.
Refer to Figure 2
7. Remove jack from stob on side of hitch tongue and
place in transport position on implement.
