14 NTA 2000D 148-632M 9/13/2006
Great Plains Mfg., Inc.
.

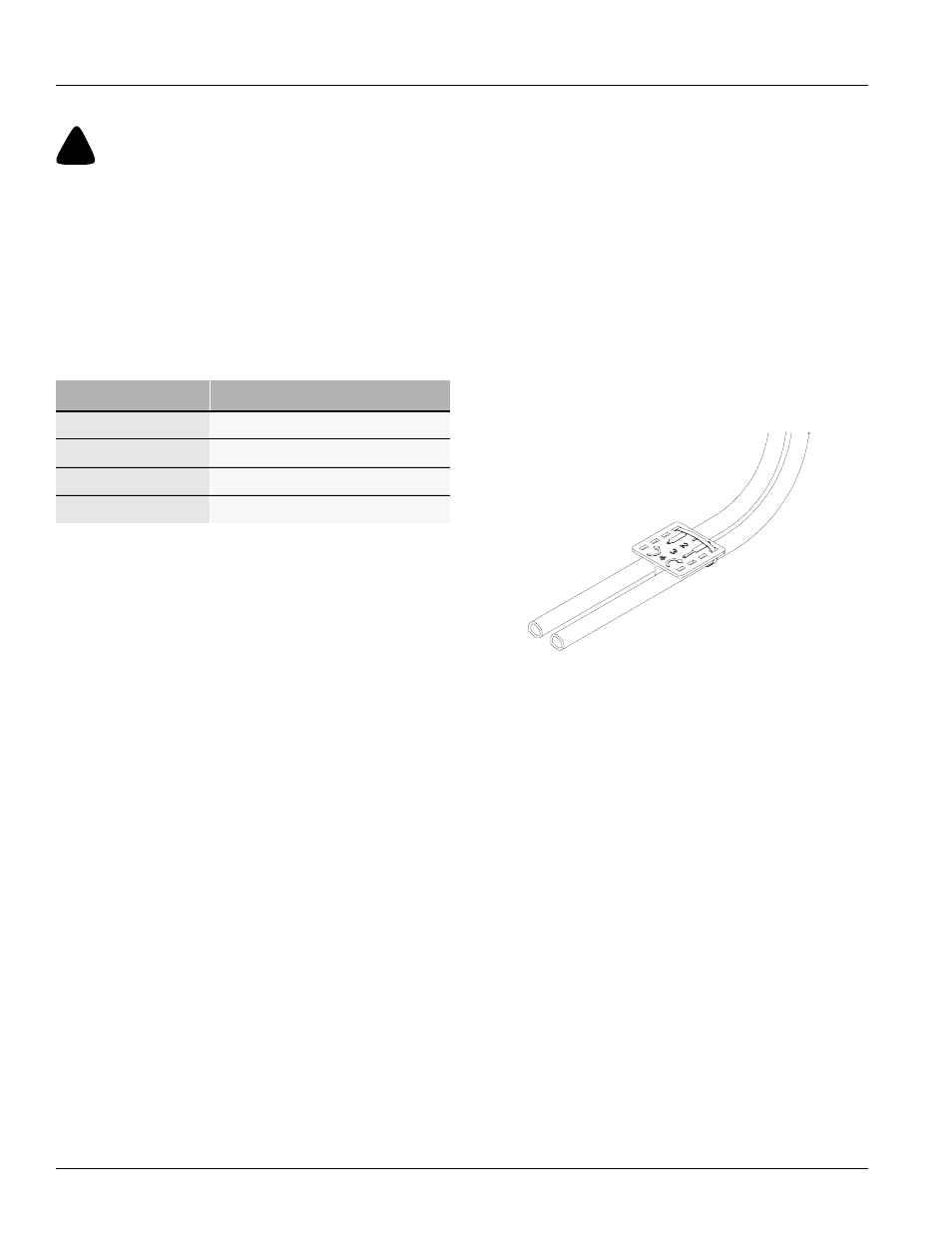

Figure 3
Hydraulic Hose Color Ties
Hydraulic Hook-up
!
WARNING!
Escaping fluid under pressure can have sufficient force to pene-
trate the skin. Check all hydraulic lines and hoses before apply-
ing pressure. Fluid escaping from a very small hole can be
almost invisible. Use paper or cardboard, not body parts, to
check for suspected leaks. If injured, seek medical assistance
from a doctor that is familiar with this kind of injury. Foreign
fluids in the tissue must be surgically removed within a few
hours or gangrene will result.
Great Plains hydraulic hoses are color coded to help you
hook-up hoses to your tractor outlets. Hoses that go to the
same remote valve are marked with the same color.
Refer to Figure 3
To distinguish hoses on the same hydraulic circuit, refer to
plastic hose holder. Connect hose under extended cylin-
der to outlet you choose for cylinder extension. Connect
hose under retracted symbol to outlet for cylinder
retraction.
Connect hydraulic hoses from tongue cylinder to one trac-
tor remote valve. Connect hoses from transport-lift
cylinders to another tractor remote valve.
Colour Hydraulic Function
Red Transport Lift Cylinders
Blue Tongue Cylinder
Yellow Fan and Fold
Orange Marker
17641
