8-10m Press Range

Operating Instructions

30

4.18 Checks

The working quality depends on the adjust-

ments and checks made prior to and during

work, as well as on regular servicing and

maintenance of the machine.

Before beginning work it is therefore impor-

tant to carry out any necessary servicing

and to lubricate the machine as required.

Checks prior to, and during

work:

• Is the machine correctly hitched up and the

coupling device locked?

• Have the hydraulic lines been connected

according to the colour coding?

• Is the machine in a level operating position

and the working depth set correctly?

Working Elements

• Are the discs and other cultivation tools in

a serviceable condition?

• Are the scrapers still operable, so that the

rolls do not jam?

4. Adjustment / Operation

4.17 Using Shims

Before using shims to alter machine settings

ensure the machine is stationary and the

tractor is turned off with the keys out. Ensure

that all operators are clear of the machine

and that no load is being held on any existing

shims in the cylinder.

To fit the shims hold them by the handle and,

using a firm action, clip them onto the rod

as shown in Fig. 4.12. They are removed by

using a finger to pull firmly on the handle.

Check the cylinders for damage

and debris before fitting shims.

Only attempt to add or remove

shims using the handle. Trying to

manipulate shims using the jaws

could result in injury.

When changing machine settings

ensure both sides of the machine

mirror each other. The left hand

cylinder should contain the same

amount of shims as the right, for

example. Failure to do this could

result in damage to the machine.

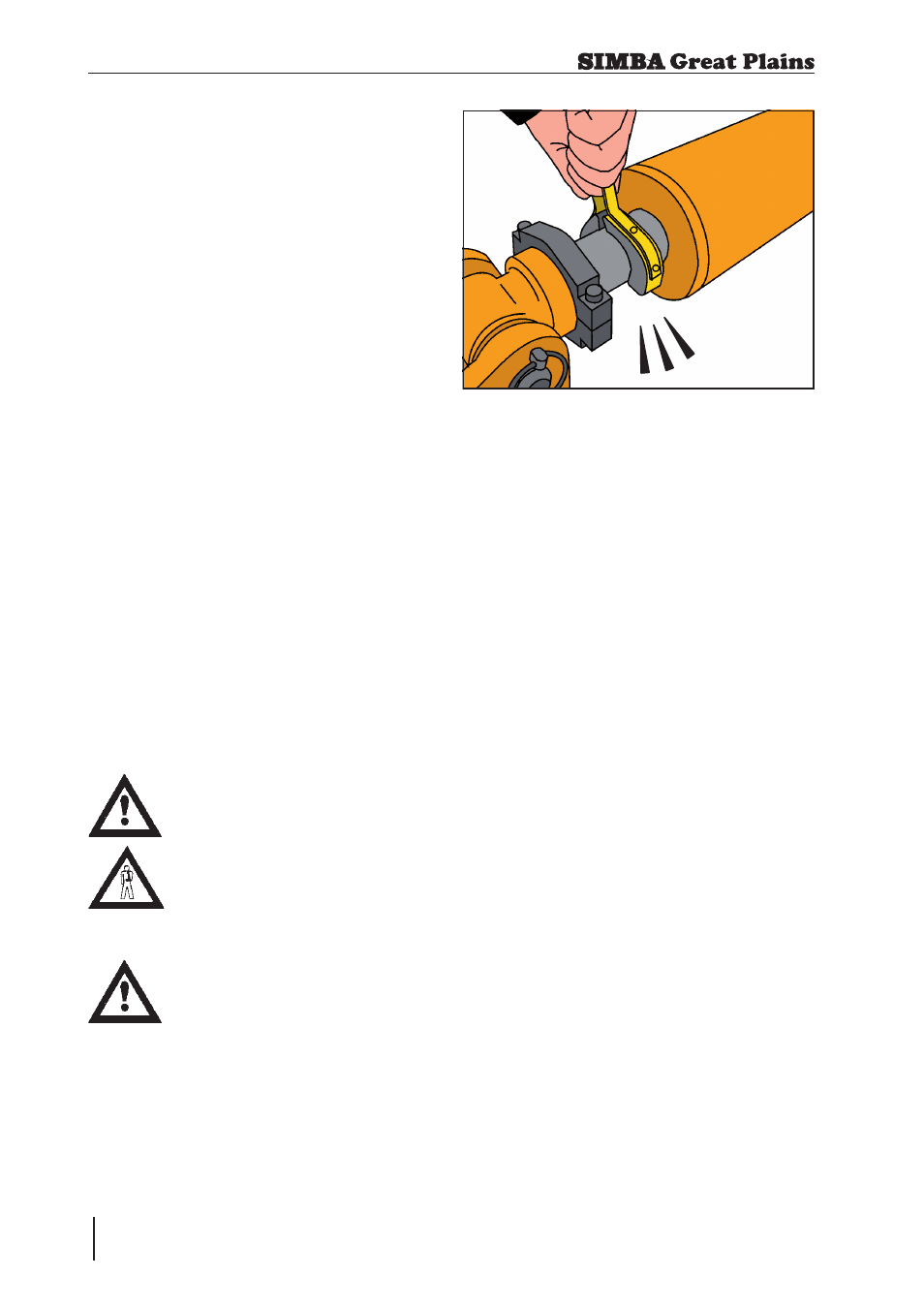

Fig. 4.12: Shims

Switch off the tractor. Swing the jack

into the work position.

Switch the tractor back on and operate

the hydraulic jack to raise the drawbar

from the jaw of the tractor and remove

the pin.

If the machine is being left folded on

the jack ensure the catcher arm tap

(YELLOW) is left closed. Depressurise

all hydraulic lines and remove pipes

and cables from tractor.

Slowly draw the tractor forward.
