8-10m Press Range

Operating Instructions

22

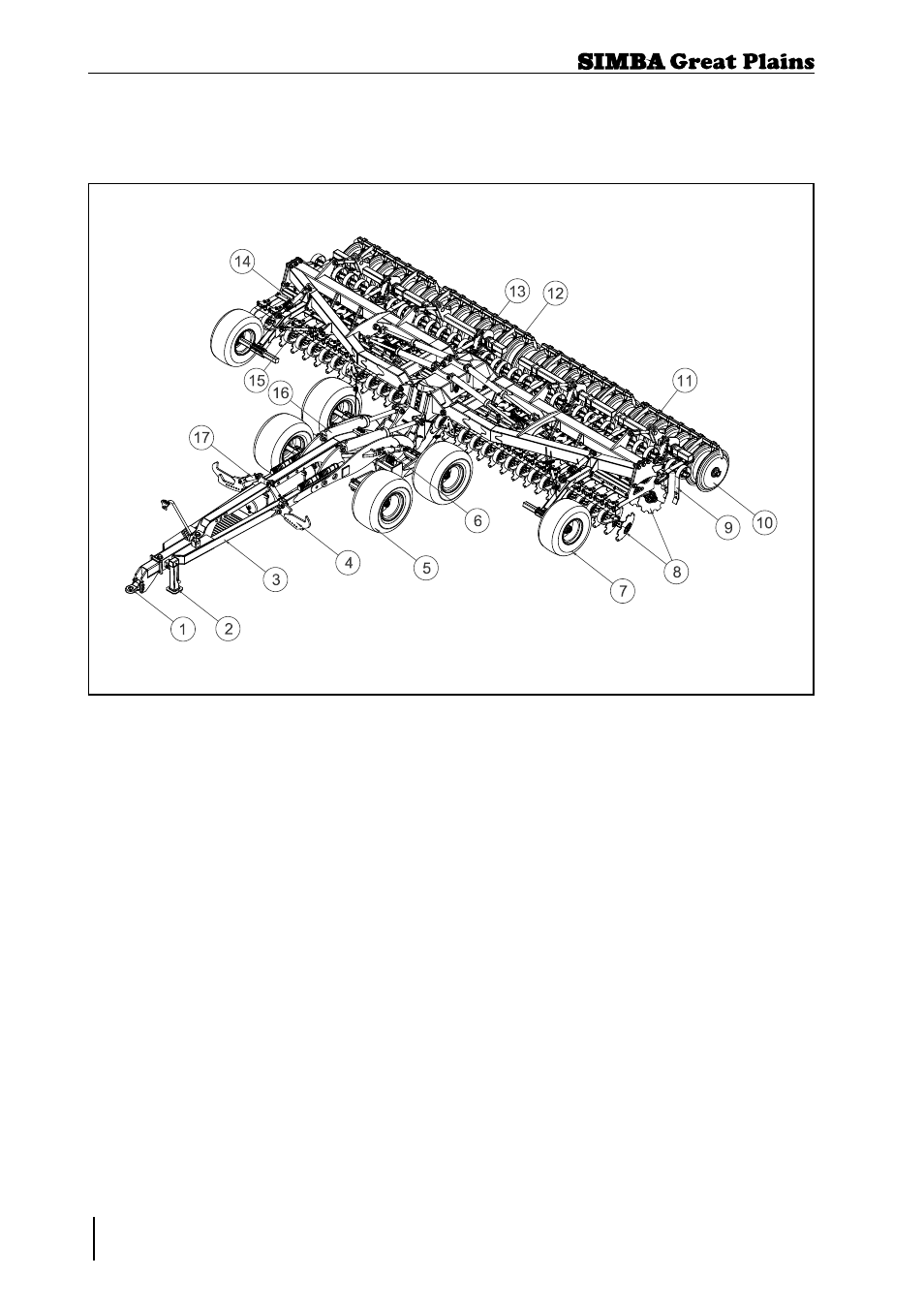

4.1.1 X-Press

1.

Hitch

2.

Parking Jack

3.

Drawbar

4.

Wing Catcher

5.

Transport Wheels

6.

Wheel Cylinders

7.

Out-Rigger Units

8.

Discs

9.

Levelling Board (if fitted)

10.

Single Row 700DD Roll

11.

Roll Depth Adjuster

12.

Wing Fold Cylinders

13.

Levelling Board Cylinders

14.

Out-Rigger Adjuster (Vertical)

15.

Out-Rigger Adjuster (Lateral)

16.

Main Tilt Cylinders

17.

Wing Catcher Cylinders

In the X-Press configuration the machine

can be used in reduced tillage systems

to incorporate stubble or to work down

ploughing on lighter soil types. Due to the

massive clearances throughout the machine

the X-Press can operate in situations

where high levels of surface trash exist .

The X-Press is designed for high speed

operation, 8-12 km/h with high volumes of

trash flow being added by the 700mm DD

roller at the rear.

4. Adjustment/Operation

4.1 Description

Fig. 4.01: Simba Great Plains 8-10m X-Press
