8-10m Press Range

Operating Instructions

4. Adjustment / Operation

4.1.2 CultiPress

1.

Hitch

2.

Parking Jack

3.

Drawbar

4.

Wing Catcher

5.

Transport Wheels

6.

Wheel Cylinders

7.

Out-Rigger Units

8.

Pro-Active Tines

9.

Levelling Board (if fitted)

10.

Intermeshed Twin Row 600DD

11.

Roll Depth Adjuster

12.

Roll Pitch Adjuster

13.

Wing Fold Cylinders

14.

Out-Rigger Adjuster (Vertical)

15.

Out-Rigger Adjuster (Lateral)

16.

Main Tilt Cylinders

17.

Wing Catcher Cylinders

In the CultiPress configuration the machine

can be used to work down ploughing in a

reduced tillage operation in heavy soil type

areas. With twin rows of Proactive tines, fol-

lowed by a hydraulically operated intermesh-

ing sprung-leaf levelling board ending in a

twin 600DD roll it offers a perfect cultivation

and consolidation tool.

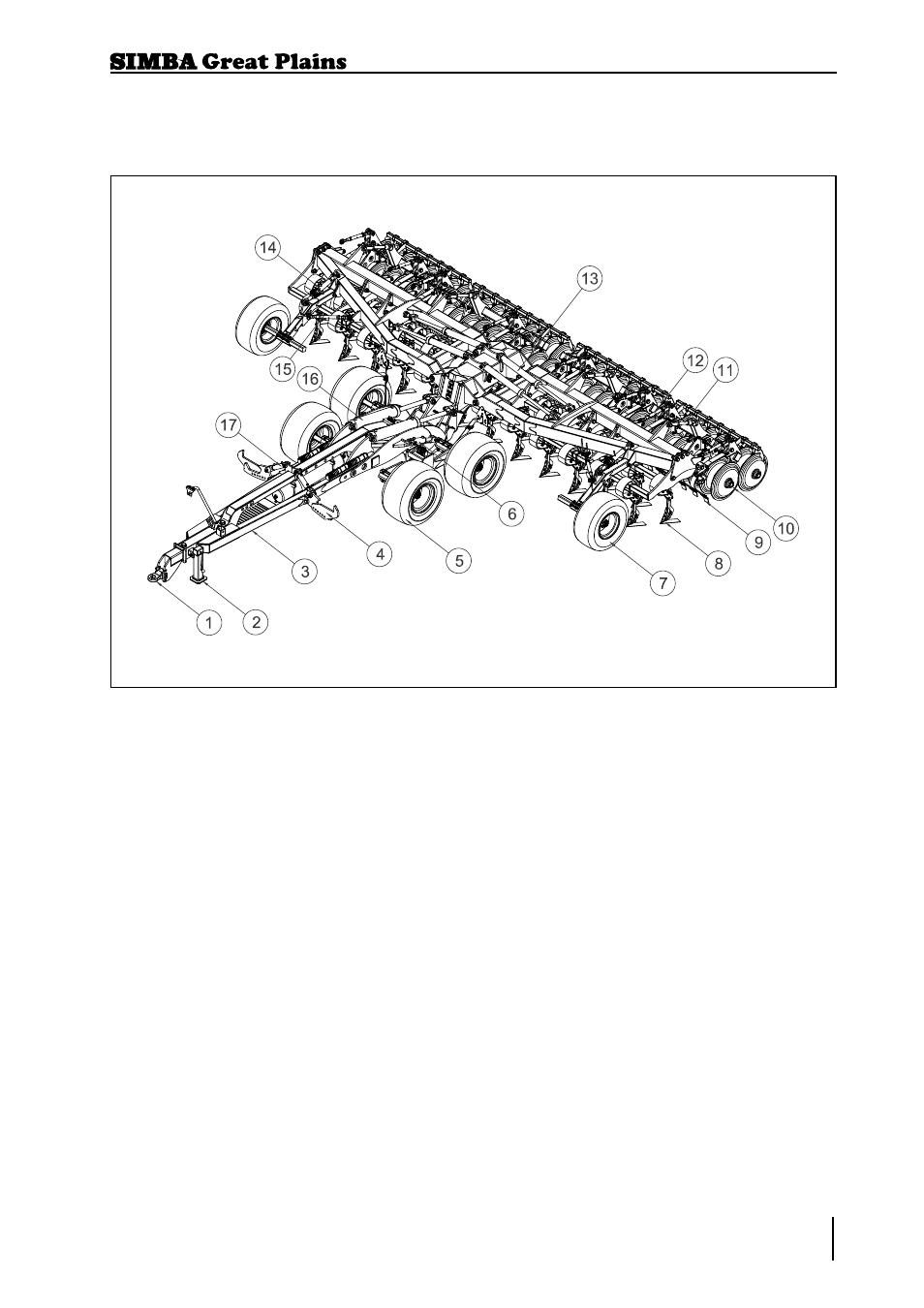

Fig. 4.02: Simba Great Plains 8-10m CultiPress
