Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 49
2012-08-01 Table of Contents Index 167-085M
Unloading Front Hopper
Refer to Figure 56 and Figure 57
11. Swing auger assembly out from cart and engage
mount lock pin . This prevents undesired
movement of the inner arm while positioning the
outer arm and auger tube.
12. Swing auger under the meter box clean-out door of
the front hopper. The clean-out door is the forward
door.
Refer to Figure 57 (which depicts the arm orientation when
the auger is positioned as shown in Figure 56)
13. Engage auger swing arm lock pin
.
14. Skip to step 19.

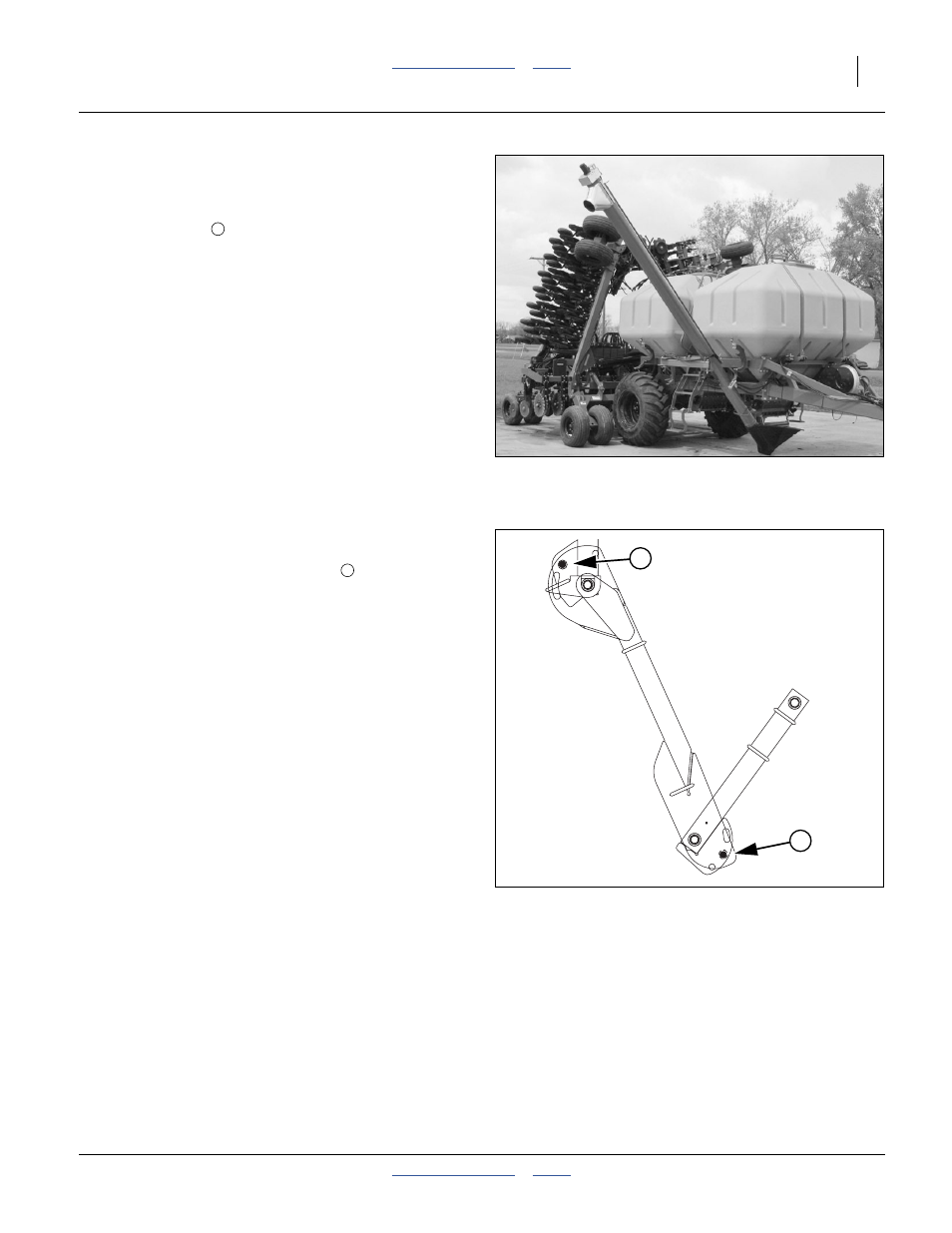

Figure 56
Auger Under Front Hopper
26356
1
Figure 57
Arm for Forward Unload
26353
1
2
2
