Make ADC2350B/BE Electrical Connections
The ADC2350B/BE has connections only in front. The
ADC2350/E cart has connections in front and back.
Refer to Figure 20
Make sure tractor is shut down with accessory power off
before making connections. All connections are made at
or above the seed hose bulkhead.
1. Mate the lighting plug to the leading implement
outlet connector, which is tied to the seed hose
bulkhead.
2. Mate the implement lift connector at the bulkhead.
3. Mate the seed monitor plug to the receptacle at
the bulkhead.
4. Secure cables so they are clear of moving parts at
the hitch.
Make ADC2350B/BE Hydraulic Connections
Only trained personnel should work on system hydraulics!
Current Style Color Coded Hose Handles
The air cart itself consumes hydraulic power for one or
two circuits, and has a low pressure sump return line.
When the cart trails the drill (ADC2350B/BE), only a
single shared auger/fan connection is necessary.
Great Plains hydraulic hoses have color coded handle
grips to help you hookup hoses to your tractor or drill
outlets. Hose connections are also passed through to a
rear panel when the air cart leads the drill. Hoses that go
to the same remote valve are marked with the same
color.
Refer to Figure 21
To distinguish hoses on the same hydraulic circuit, refer
to the symbol molded into the handle grip. Hoses with an
extended-cylinder symbol feed cylinder base ends.
Hoses with a retracted-cylinder symbol feed cylinder rod
ends.
Make sure all tractor levers are in neutral or float, or
tractor hydraulics are off, before making connections.
Fan Priority
If your tractor has a priority circuit for hydraulic motors,
connect the fan (Black) to this circuit.

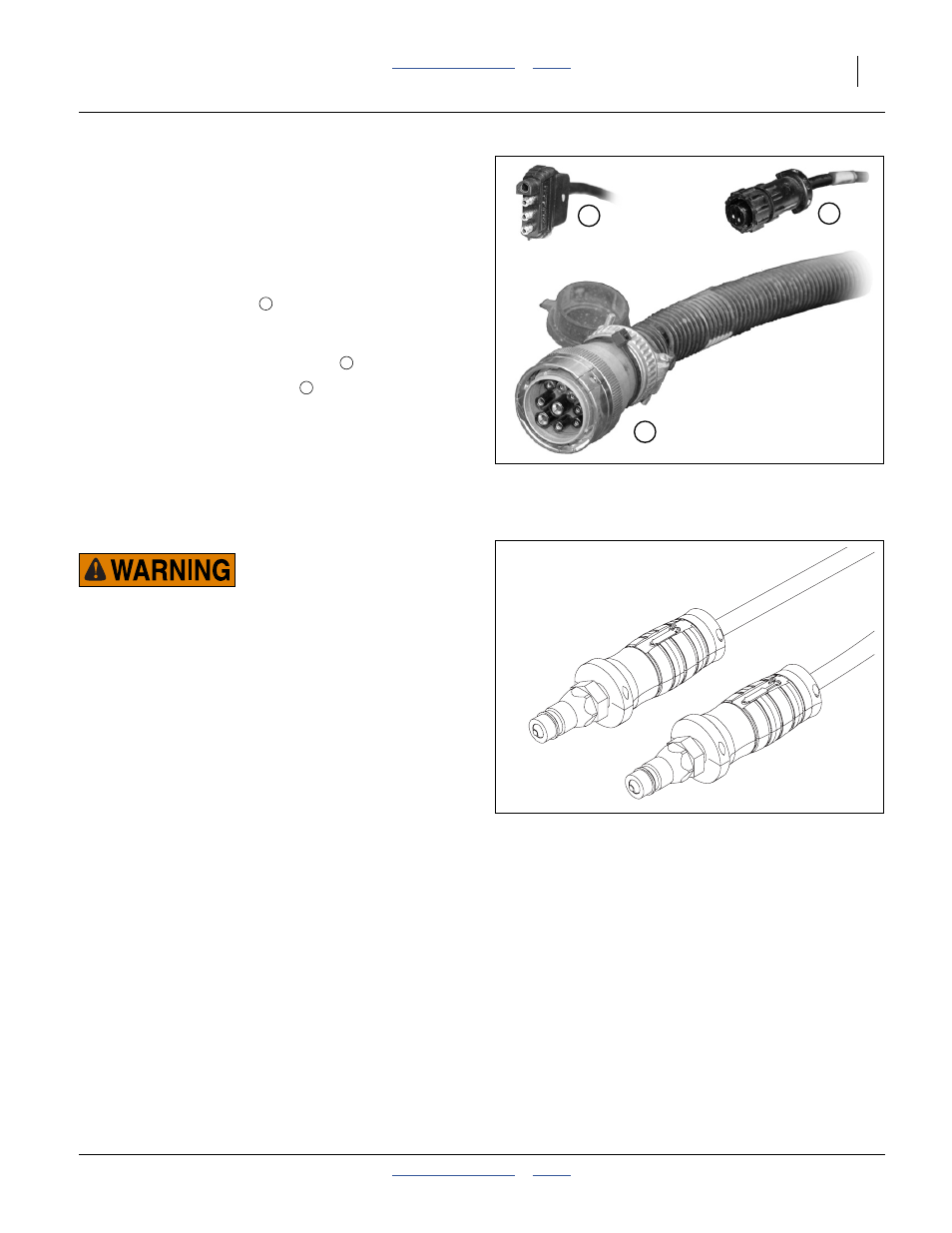

Figure 20 - ADC2350B/BE: Cart
Lighting, Lift Switch & Monitor
26144
27192
27193
1
3
2
1
2
3
Figure 21
Color Coded Hose Grips
31733
