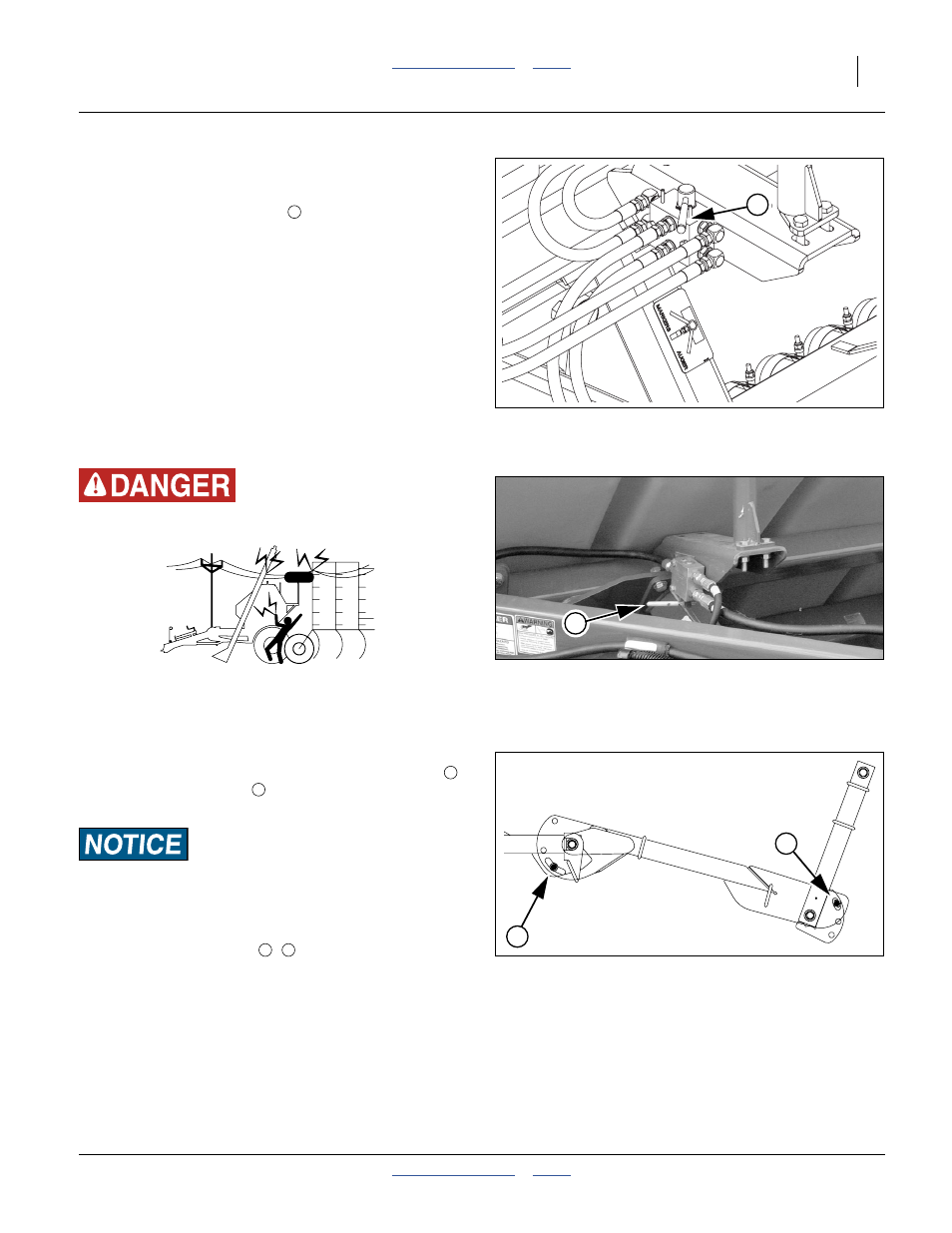

Cart Diverter Valve
Refer to Figure 47 or Figure 48
7.
Set the cart diverter valve to the forward (Auger)
position, as indicated by a decal near the valve. See
“Diverter Valve” on page 39.
8. Climb the ladder to the cart walkboard. Unlatch the
lid and pivot it fully open. See “Lid Opening” on
page 33.
Note: If you do not want to fully open lid until just before
moving material, at least unlatch the lid. The auger
nozzle may be in the way of unlatching if you wait
until after auger positioning.
9. Check that the strainer basket is in place in the top of
the bin. Remove any foreign material from the
basket.
Electrocution Hazard:
Keep clear of overhead power lines when positioning auger.
10. Un-pin and un-clamp the auger, and swing the inlet
end to the ground. See “Deploying Auger” on
page 38.
Refer to Figure 50
11. Extend the auger swing arms until the mount pin
and the arm joint pin align with the curved slots in
the locking plates.
Equipment Damage Risk:
If the trailing implement is folded, mind the outlet end of the
auger, as the auger can strike components of a folded trailing
implement.
12. Release the arm pins , into the plate slots.
Figure 47
ADC2350/E Diverter Valve (to Auger)
26417
1
1
Figure 48
ADC2350B/BE Diverter Valve (to
Fan)
29127
1
Figure 49
Arm for Material Loading
26352
1
2
1
2
1 2
