46 ADC2350/E and ADC2350B/BE Table of Contents Index Great Plains Manufacturing, Inc.
167-085M Table of Contents Index 2012-08-01

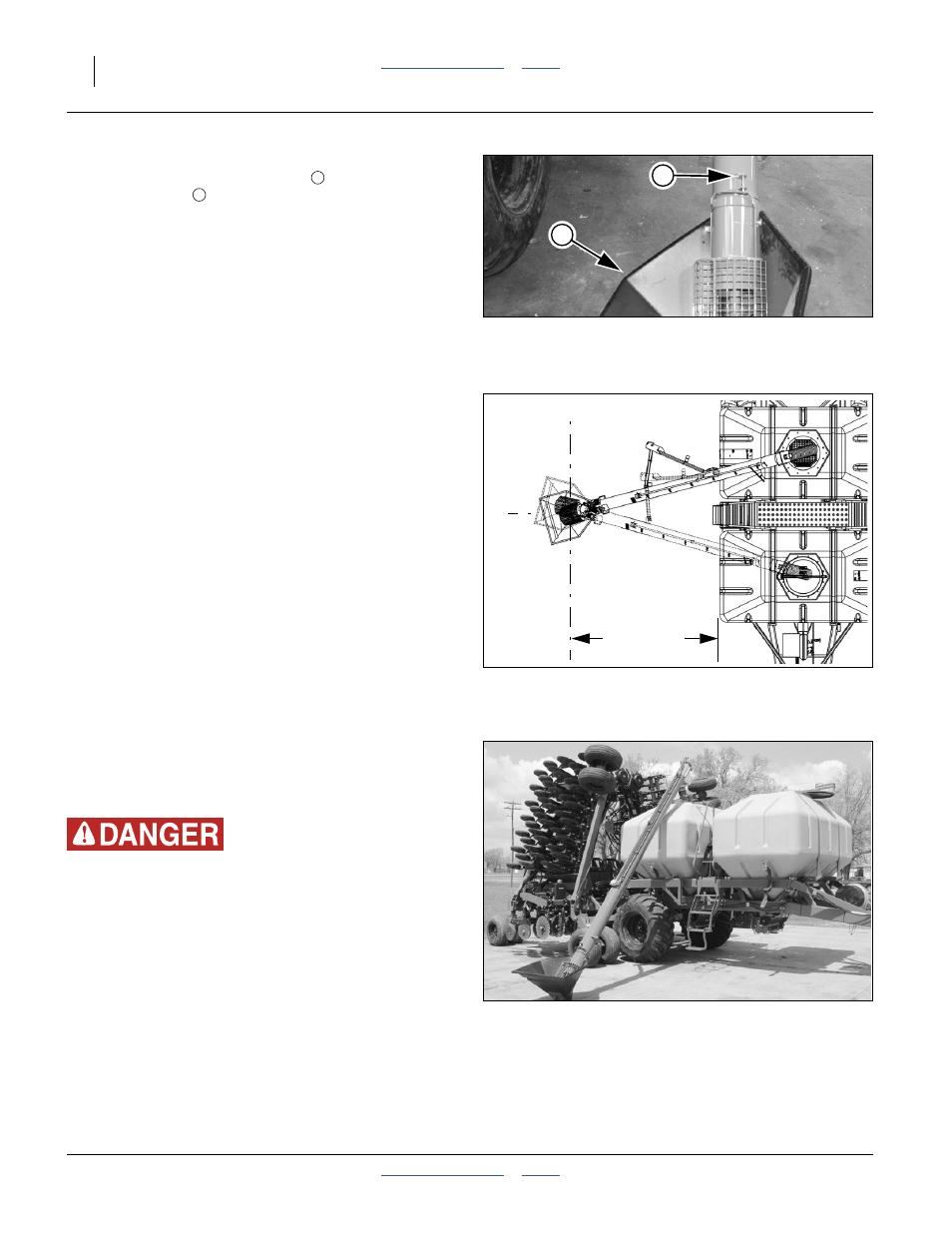

Refer to Figure 50
13. Pull up on the hopper snap pin
and pivot the
auger hopper until its opening is facing up, and
the snap pin is captured in a locking hole.
Refer to Figure 51
With the pins latched in the arm pivot slots, both front
and rear hopper can be loaded from a single distribution
point (inlet hopper location) at 100 inches (2.54 m) out
from the hoppers and centered between the hoppers.
The outlet end can be swung from hopper to hopper by a
single operator on the walkboard.
Refer to Figure 52
14. Swing the auger so the spout is centered over the
hopper opening. Position your grain container for
unloading into the auger hopper.
Rotating auger. To prevent serious injury or death:
▲ Read instructions and safety information before operation.
▲ Keep hands, feet, hair and clothing away from rotating
auger.
▲ Do not remove or modify any guards.
▲ Keep children well clear of work area.
15. Energize tractor hydraulics for auger. You may need
to tie the control lever in place or adjust the detent
pressure on your tractor.
Figure 50
Auger Hopper Loading
26331
1
2
1
2
Figure 51
Single-Point Loading
26438
100 inches
Figure 52
Loading Rear Hopper
26355
