Page 26
22
ADC2350/E and ADC2350B/BE
Great Plains Manufacturing, Inc.
167-085M
2012-08-01
Make ADC2350/E Seed Hose Connections
ADC2350/E seed hose connections are made at the
back of the cart and are clamped. ADC2350B/BE seed
hose connections (page 26) are made at the front of the
cart, and are couplers.
Refer to Figure 12 and Figure 13
Connect primary seed hoses (tower feed hoses) from
drill to their respective outlets on the cart meter box, in
left to right order.
Skip any capped outlets
on the meter. Do not move
caps; the meter shaft at capped outlets has fillers, and no
flutes for metering seed.
At extreme outside outlets on cart model ADC2350/E,
orient jackscrew hose clamps so that screw hardware
does not interfere with operation of meter box door
handles.
Leave enough slack so that drill can be fully raised,
lowered, folded and unfolded.

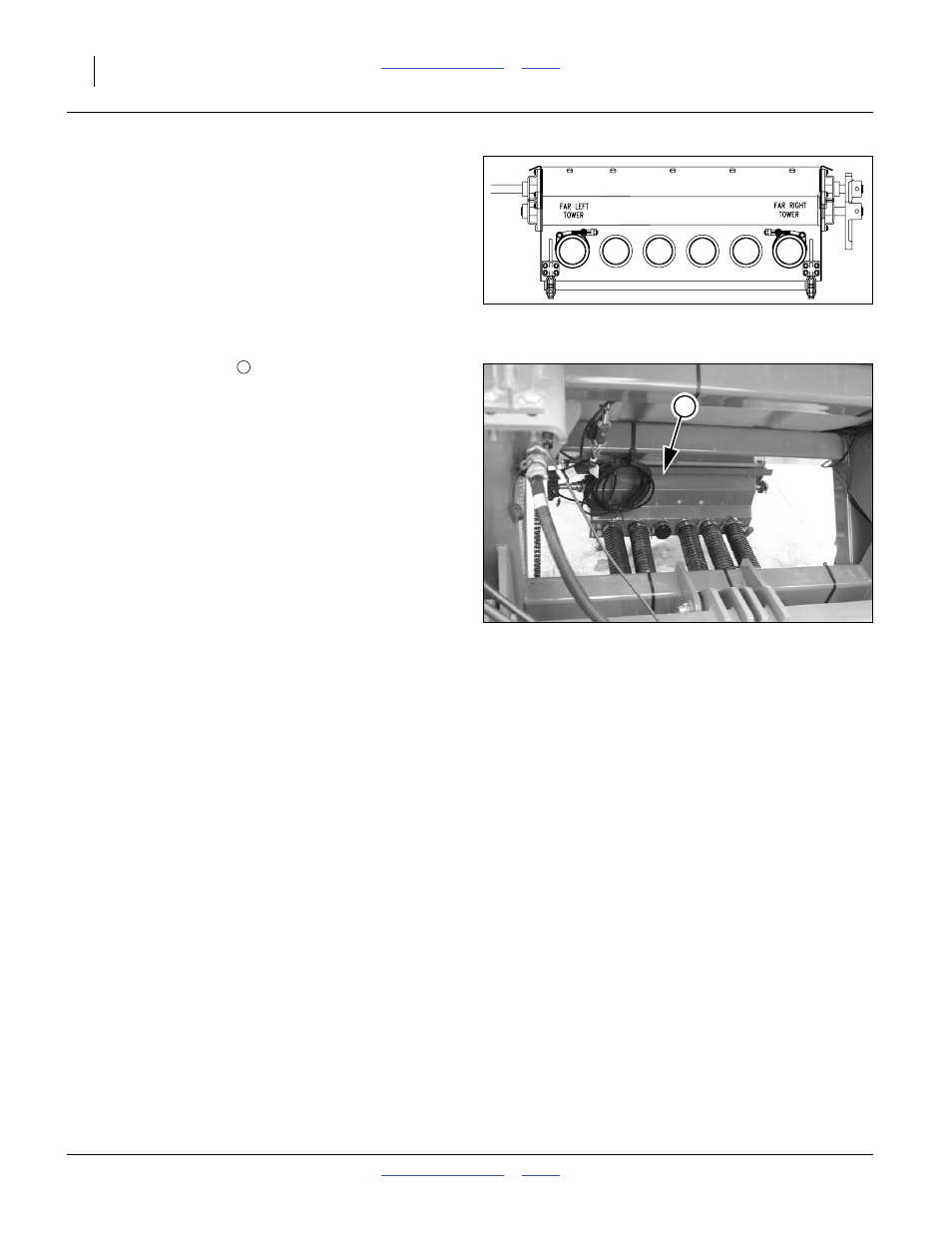

Figure 12
ADC2350/E Seed Hose Outlets
26302
Figure 13
ADC2350/E Seed Hoses Connected
26403
1
1
