Make ADC2350/E Electrical Connections
The ADC2350/E cart has connections in front and back.
The ADC2350B/BE has connections only in front.
ADC2350/E Front Electrical Connections
Refer to Figure 14
Make sure tractor is shut down with accessory power off
before making connections.
1. Mate the lighting plug to the outlet connector on
the tractor. This connection is also passed through to
the back of the cart for the trailing drill.
2. Mate the seed monitor plug to the outlet
connector on the tractor. This connection is also
passed through to the back of the cart.
3. Secure cables so they are clear of moving parts at
the hitch.
ADC2350/E Rear Electrical Connections
Before making electric or hose connections between cart
and trailing drill, first make the rear cart-drill mechanical
hitch connection. Refer to the drill manual.
For a trailing implement,
a lighting and
an implement lift switch connector
are always present.
A monitor connection may or may not also be present,
depending on implement options.
Consult the implement manual for drill-cart connections.

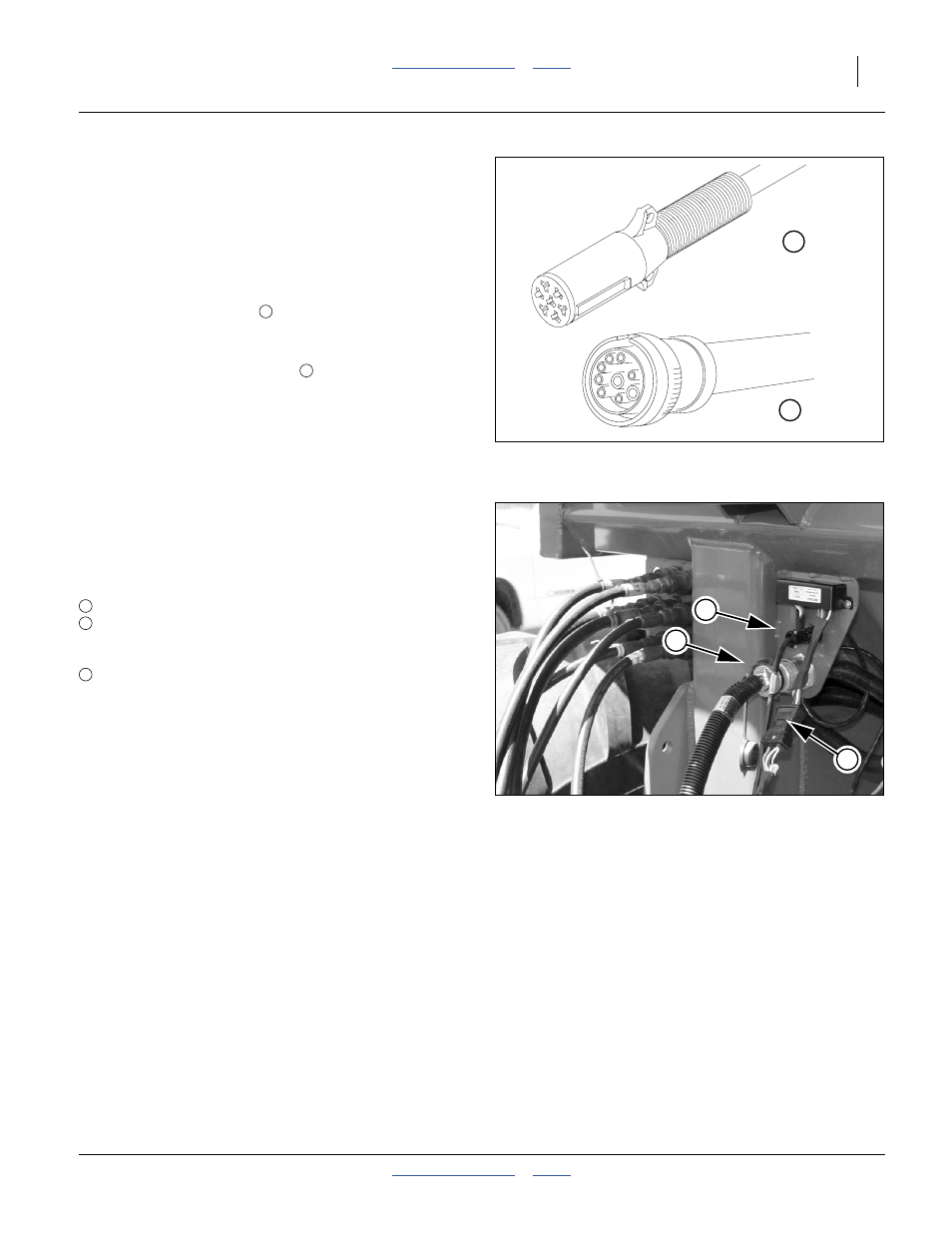

Figure 14
Cart Lighting & Monitor
26467
27080
1
2
1
2
Figure 15
Implement Electrical Cables
26439
2
3
1
1
2
3
