Seed Flap Replacement (s/n DD1497+)

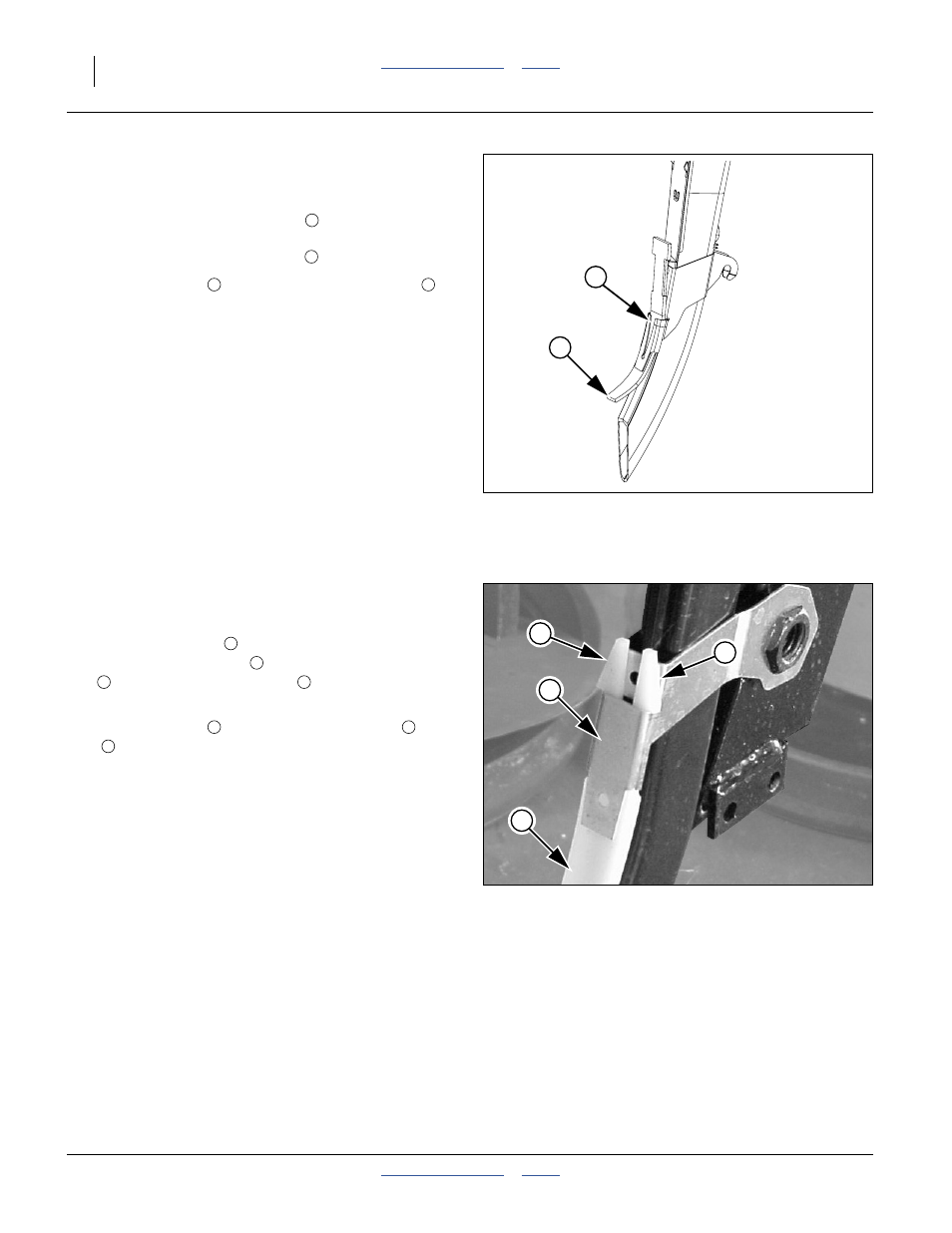

Refer to Figure 97
To replace an 816-302C seed flap
use a needle nose
pliers or similar tool to grasp “T” top of flap. Pull upward
to pull flap up out of metal bracket
.
Push new seed flap down through metal bracket
until flap snaps into place with “T” top resting on top of
bracket.
Seed Flap Replacement (s/n DD1496-)
Refer to Figure 98
To replace a seed flap
use a needle nose or similar
tool and squeeze the tabs together. Pull plastic seed
flap down out of metal bracket .
If replacing with 817-349C:
Push new seed flap
up through metal bracket until
tabs on seed flap snap in place.
4
Figure 97
816-302C Seed Tube Flap
31047
5
4
5
4 5
Figure 98
817-349C Seed Tube Flap
19398
3
2
1
2
1
2
1 3
1 3
2
