Introduction
Great Plains welcomes you to its growing family of new
product owners. Your 26-Foot Two-Section Folding HD
Drill has been designed with care and built by skilled
workers using quality materials. Proper setup, mainte-
nance, and safe operating practices will help you get
years of satisfactory use from the machine.
Document Family
195-069M Owner’s Manual (this document)
195-069P 2S-2600HD Parts Manual
195-069B Seed Rate Manual
Description of Unit
The 2S-2600HD is a towed seeding implement. This two
section drill has a working width of 26 feet (8m). The drill
has straight arm, double disk heavy duty openers. The
opener disks make a seed bed, and seed tubes mounted
between the disks place seed in the furrow. Press
wheels following the opener disks close the furrow and
gauge opener seeding depth. A T-handle on the opener
body is for seeding depth adjustments. Seeding rates are
adjustable with the seed rate adjustment handle and
sprocket changes.
The 2S-2600HD features active hydraulic down pressure
on the opener frames. When used on a tractor with
closed-center hydraulics, constant down pressure
ensures even opener penetration in uneven ground.
Hydraulic down pressure is adjustable at a single point.
Intended Usage
Use this implement to seed production-agriculture crops
in conventional or minimum tillage applications.
Models Covered
HD Models have 00HD Series Heavy Duty openers and
a main seed box used entirely for seed. HDF Models add
fertilizer meters and divide the main box for this purpose.
Standard HD models may add optional Small Seeds
capability.
2S-2600HD-3210 32-row, 10in (24.5cm)
2S-2600HD-4275 42-row, 7.5in (19cm)
2S-2600HD-5206 52-row, 6in (15cm)
2S2600HDF-3210 32-row, 10in (24.5cm)
2S2600HDF-4275 42-row, 7.5in (19cm)
2S2600HDF-5206 52-row, 6in (15cm)

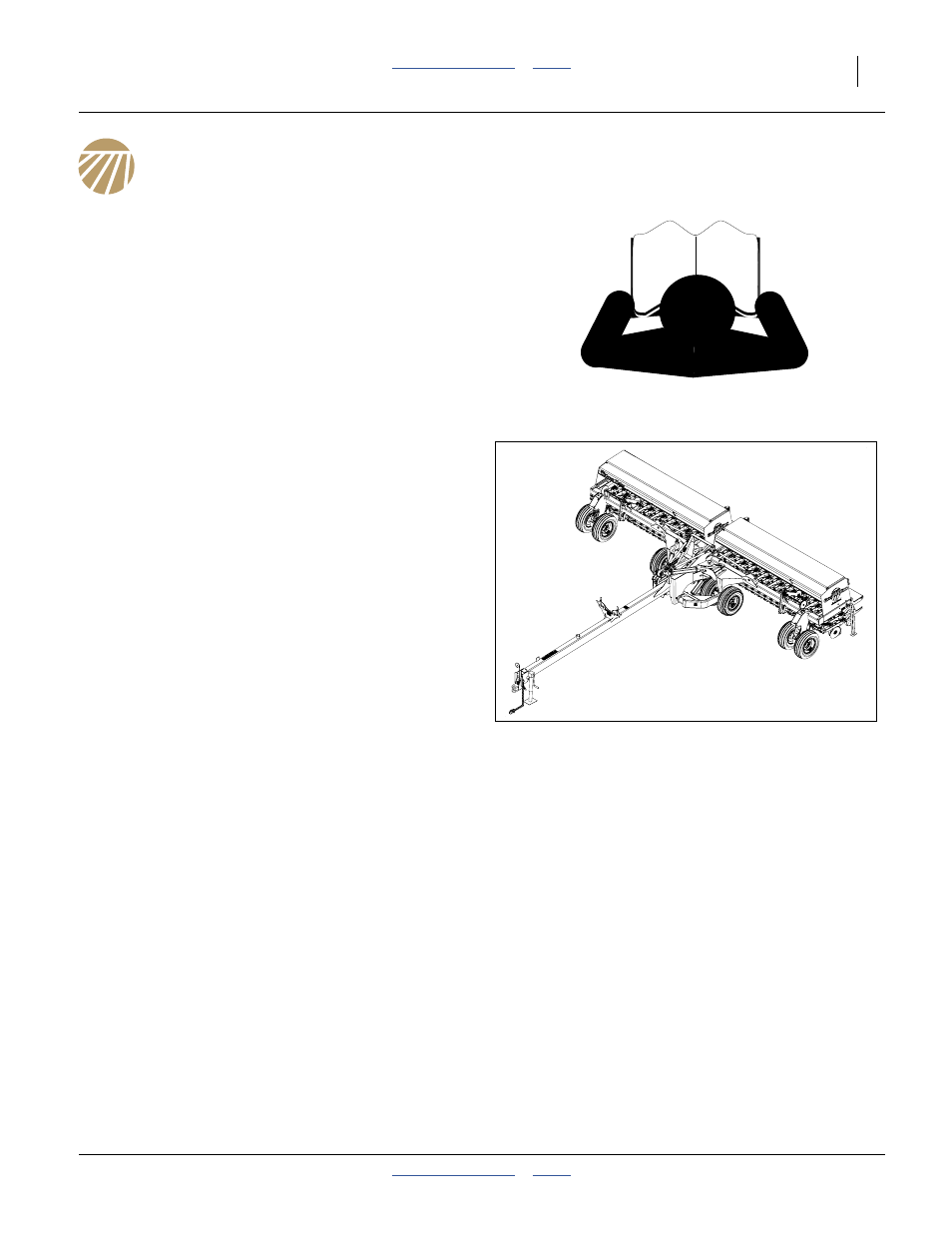

Figure 1
2S-2600HD Drill
17254
