Lowering Drill (Transport Lift)
Lowering from Transport Lift may be done only when the
drill is unfolded.
Transport Lift is on a dedicated hydraulic circuit. The
main frame raises and lowers independently of the
opener sub-frames (which are raised and lowered by the
Opener Lift circuit).
Transport Lower
1. Unfold drill. See “Unfolding” on page 30.
2. If the Two Outlet conversion kit is installed, confirm
that the selector valve, located near the hitch, is set
for Transport Lift operations. See “Lift Selector
Valve Operation” on page 42.
3. Slowly extended the Transport Lift circuit lever until
both Transport Lift circuit cylinders are fully
extended. Set circuit lever to off or neutral (not float).
Refer to Figure 29
4.
Rotate cylinder lock channels down and forward off
transport lift cylinders.
5. Slowly reverse the lift circuit lever and begin lowering
the drill. Keep the circuit engaged until both cylinders
are completely retracted. Set circuit to off or neutral.

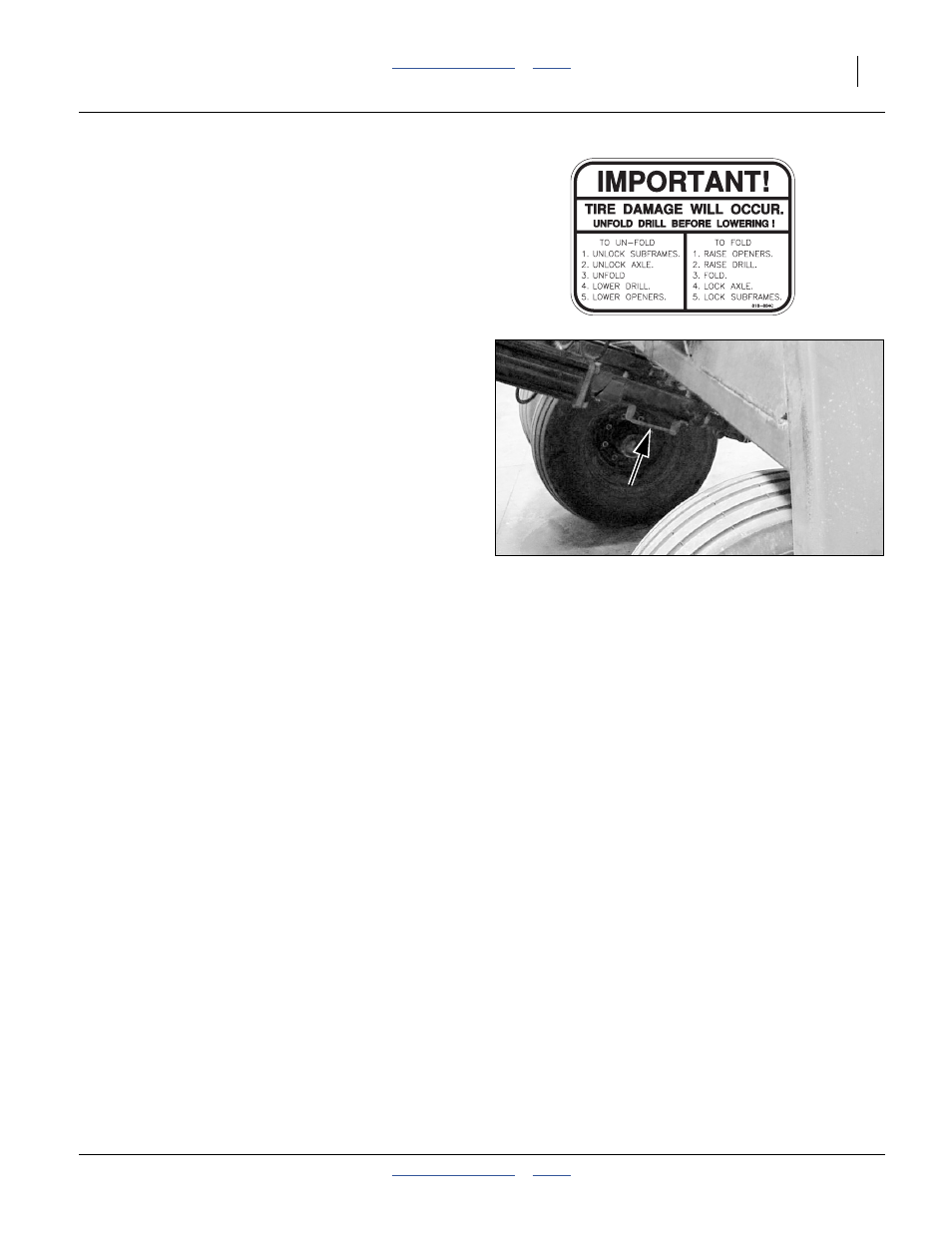

Figure 29
Transport Lift Cylinder Lock
18960
