Marker Disk Adjustment
Sharp Object Hazard:
Marker disks may be sharp. Use caution when making adjust-
ments in this area.
Mark Width

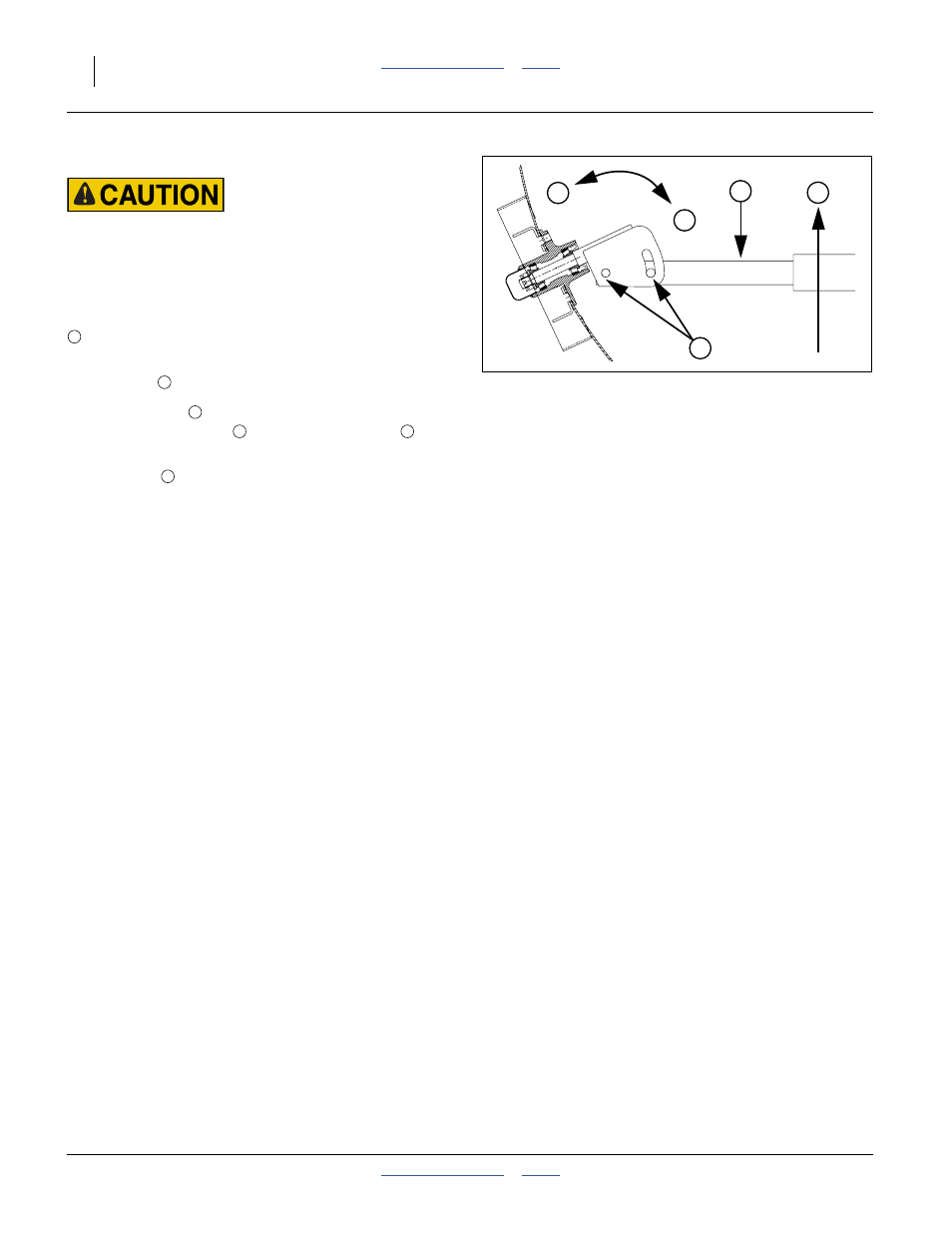

Refer to Figure 74
is the direction of travel.
To change angle of cut, and the width of the mark, loosen
1 ⁄
2
-inch bolts holding the disk assembly.
For a wider mark , increase the angle of the marker
with respect to the tube . For a narrower mark ,
reduce the angle.
Tighten bolts .
Figure 74
Marker Disk Angle
11757
T
2
1
N
W T
T
2
W
1 N
2
