Seeding with Both Compartments
1. Clean out boxes. See “Main Box Seed Meter
Clean-Out” on page 89 and “Fertilizer Box
Clean-Out” on page 89.
Refer to Figure 38
2.
Open divider door between seed and fertilizer com-
partments. To open door, loosen knobs
. Loosen
knobs until bent clips can be turned away from door
.
3. When all bent clips have been turned, lift vinyl dew
shield (not shown) and flip the flap
backward over
fertilizer-tray openings .
Refer to Figure 39
4.
With seed/fertilizer flap covering fertilizer open-
ings, lower vinyl dew shield to hold flap over fertil-
izer openings and away from divider.
5. To avoid unnecessary wear, remove both fertilizer
Range drive chains. “Setting Fertilizer Drive
Range” on page 54.

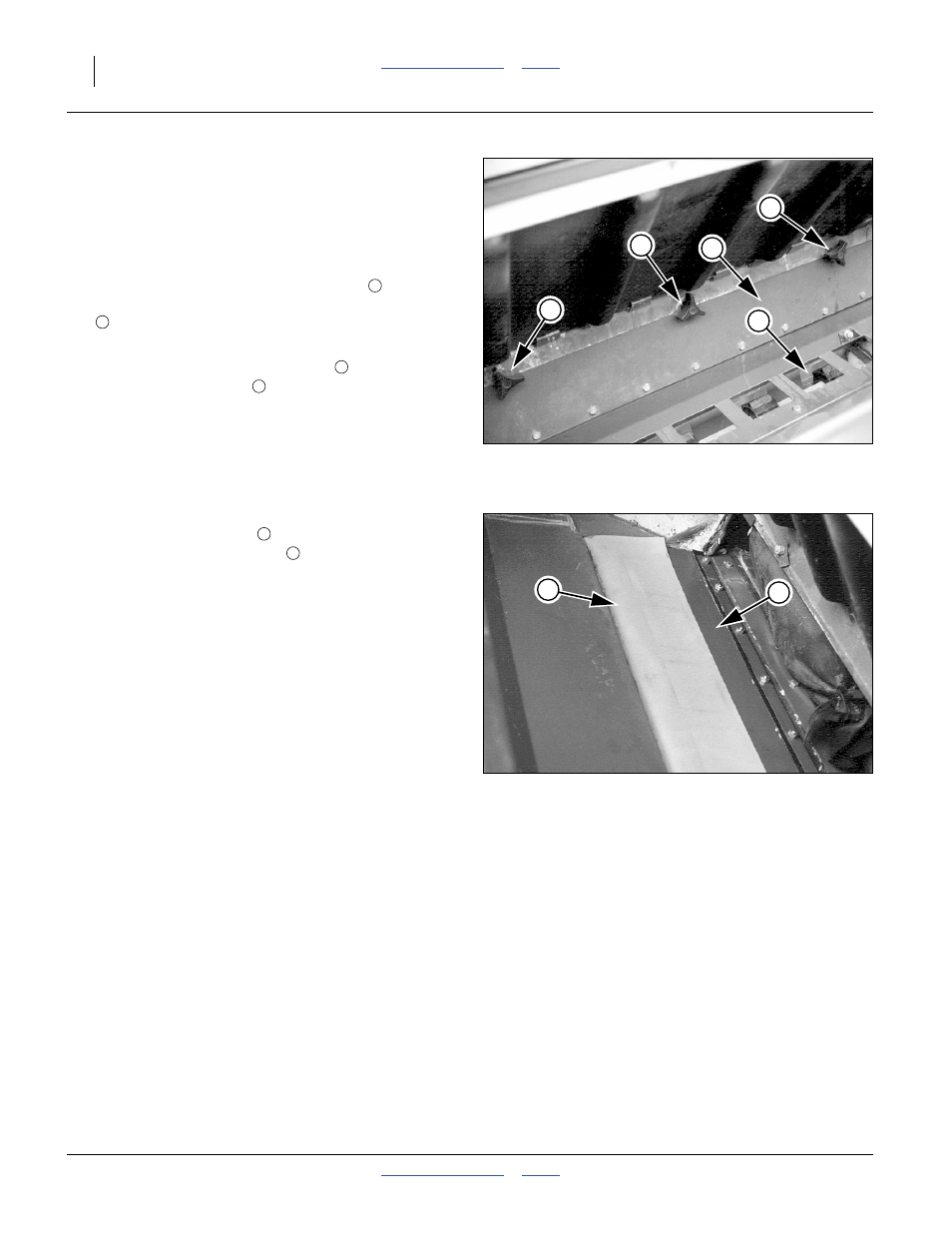

Figure 38
Open Seed/Fertilizer Flap
16383
1
1
1
2
3
1
1
2
3
Figure 39
Flap Secured
16380
4 2
2
4
