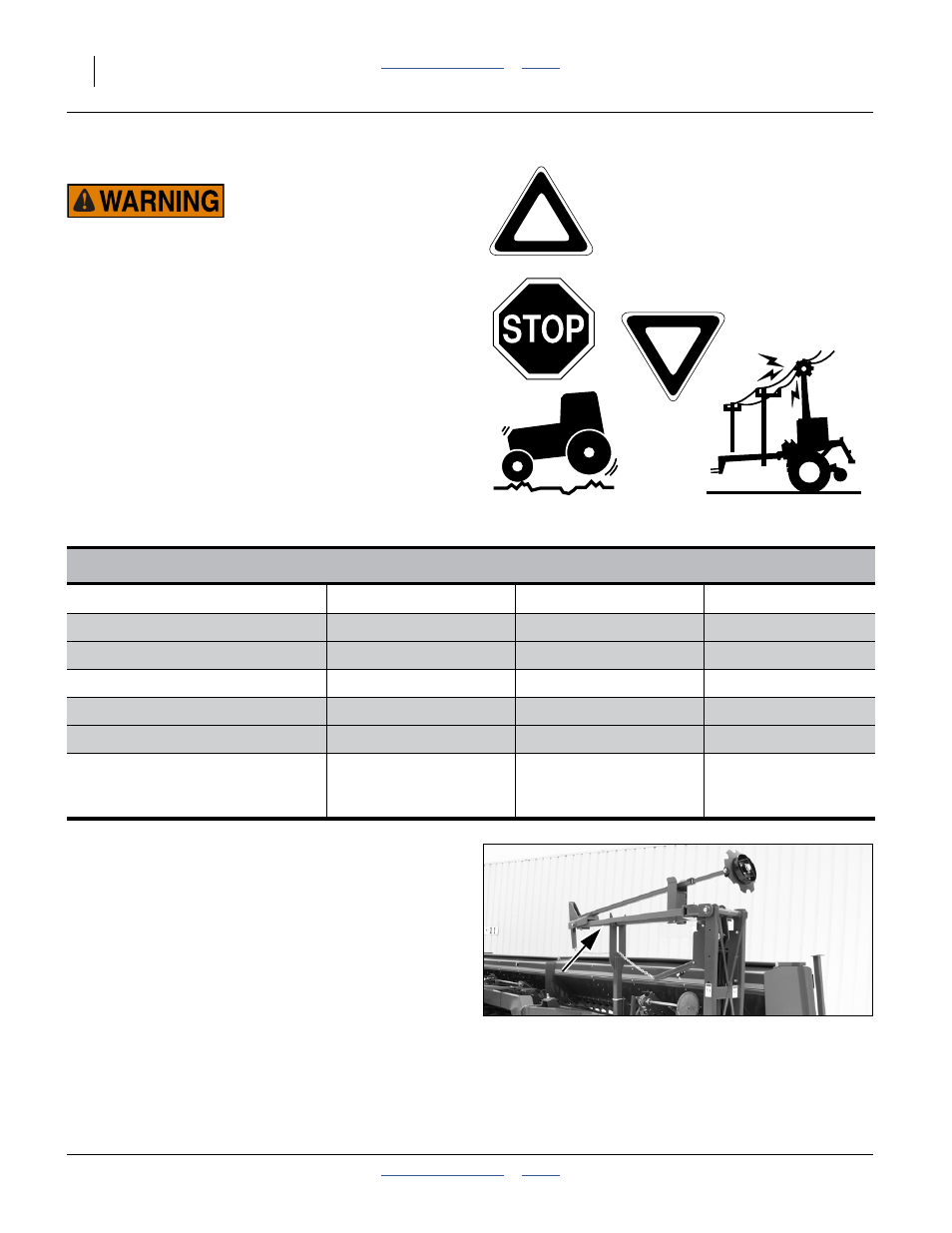

Transport
Loss of Control Hazard:
Towing the drill at high speeds or with a vehicle that is not
heavy enough could lead to loss of vehicle control. Loss of
vehicle control could lead to serious road accidents, injury
and death. To reduce the hazard:
Do not exceed 20 mph.
Do not tow a drill that, when fully loaded, weighs more than
1.5 times the weight of the towing vehicle.
In the following table, multiply the total drill weight by
0.67 (
2 ⁄
3
) to determine minimum tractor weight.
Weights for Tractor Requirements
Marker Transportation
Refer to Figure 26
Always transport markers folded flat. Make sure second
marker section rests securely on transport carrier.
Drill Weight (Pounds / Kilograms)
Drill Model 2S-2600HD-5206 2S-2600HD-4275 2S-2600HD-3210
Standard “HD” Drill 10423 lbs / 4728 kg 10404 lbs / 4719 kg 10386 lbs / 4711 kg
For “HDF” Model, add... +910 lbs / +413 kg +889 lbs / +403 kg +869 lbs / +394 kg
With Dual Markers, add... +887 lbs / +402 kg +887 lbs / +402 kg +887 lbs / +402 kg
For Full Main Box Seed Load, add... +5389 lbs / +2444 kg +5389 lbs / +2444 kg +5389 lbs / +2444 kg
Small Seeds Option +619 lbs / +281 kg +603 lbs / +273 kg +586 lbs / +266 kg
Maximum Configuration:
(HDF, Dual Markers, Seed Loaded,
Small Seeds)
18228 lbs / 8268 kg 18172 lbs / 8243 kg 18117 lbs / 8218 kg
Figure 26
Marker in Transport Cradle
