Divided Capacities
Divider Removal
Refer to Figure 34 (which depicts a smaller 9ft box for clarity
- the 13ft box has four partitions)
a.
Remove 5 ⁄
16
in bolts and flange nuts from tabs
at each end of drill box (2 locations).
b. Remove 5 ⁄
16
in bolts (4) and nuts (5) from
lid-hinge brackets (3 locations).
c. Loosen but do not remove 1 ⁄
4
in bolts and nuts that
clamp the lid assembly angle irons to the plastic
dividers .
d. Lift lid assembly out of drill box. Lift dividers out
of drill box. Reinstall standard or offset dividers.
e. Reinstall lid assembly by reversing step d through
step a.
Refer to Figure 35
6.
Check that the seed/fertilizer flap is closed so seed
and fertilizer cannot pass between compartments.
Flap flips forward to block passage. The flap top
edge is secured to the dividers. Rotate the bent clips
to engage the edge of the flap, and tighten the
knobs.
Capacity Ratio Total Capacity
Divider Seed Fertilizer Seed Fertilizer
None 100% 0% 86.4 bu
3045 ltr.
0
Standard 60% 40% 51.8 bu
1827 ltr.
34.6 bu
1218 ltr.
Offset
to rear 68% 32% 57.8 bu
2070 ltr.
27.6 bu
974 ltr.
Offset
to front 55% 45% 47.5 bu
1675 ltr.
38.9 bu
1370 ltr.

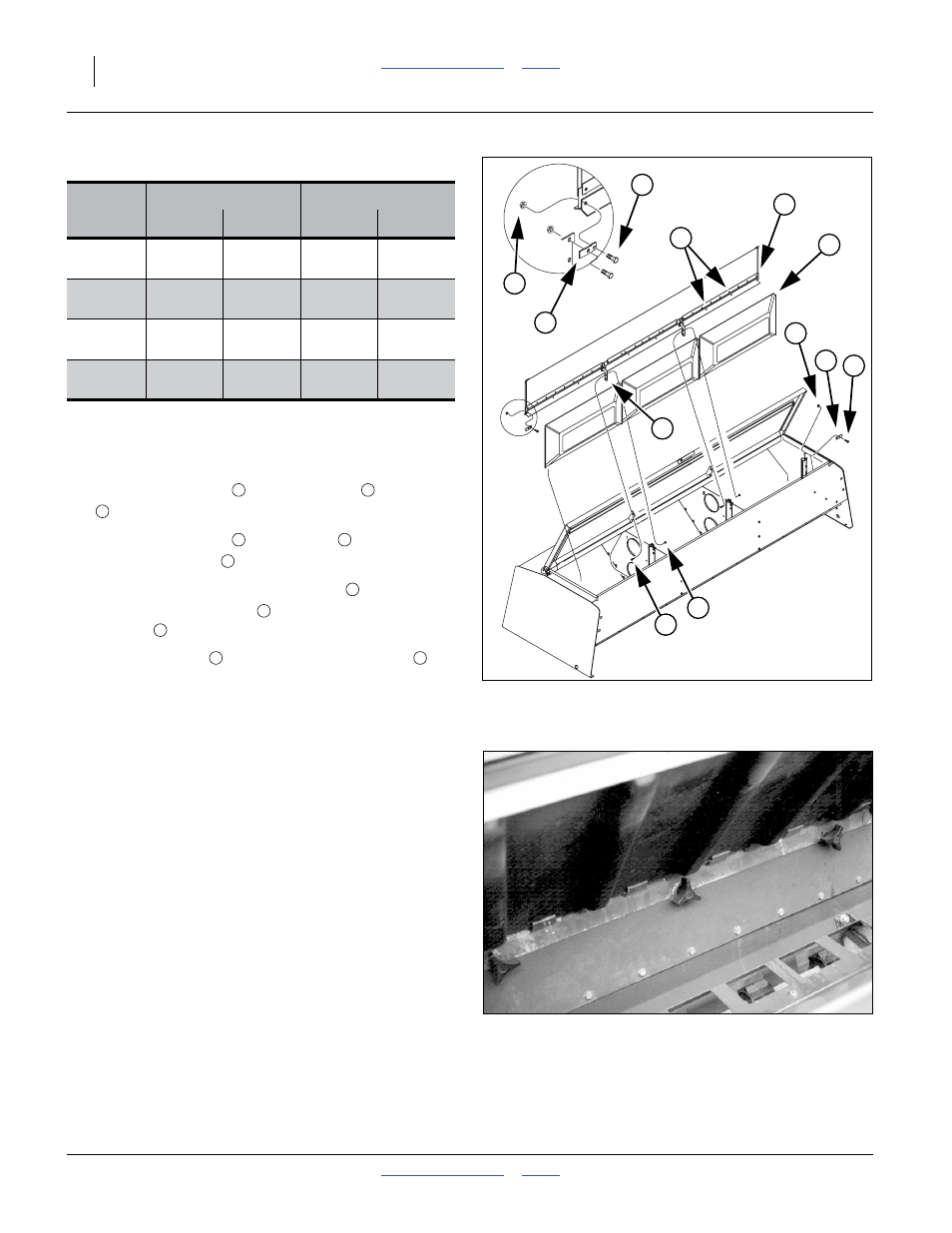

Figure 34
Box Divider Removal
27050
1
3
2
3
2
1
4
5
6
7
8
9
1 2
3
4 5
6
7
8
9
8 9
Figure 35
Seed/Fertilizer Flap Closed
16383
