Refer to Figure 36
7.
Check that fertilizer clean-out door is latched
securely
as shown. Close all door latches before
loading fertilizer compartment.
Refer to Figure 37
8.
Open main seed box lid.
9. Raise spill flap over fertilizer compartment and swing
it forward until it rests against open drill-box lid. The
spill flap serves as a spill guard to keep fertilizer out
of the seed compartment.
10. Fill fertilizer compartment.
11. Calibrate fertilizer-application rate as explained
under “Fertilizer Rate Calibration” on page 56.

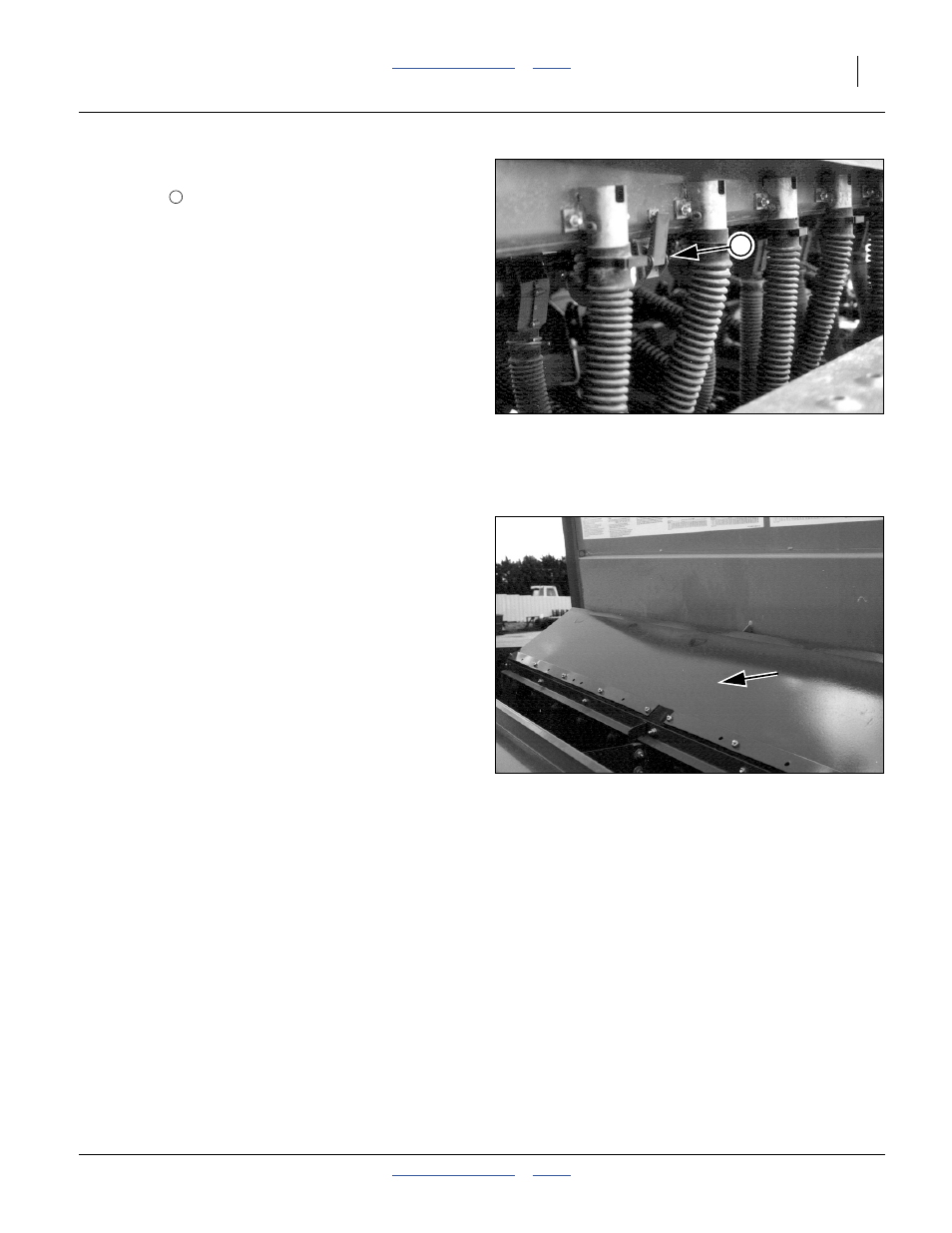

Figure 36
Cleanout Door Latch
16377
1
1
Figure 37
Spill Flap Open to Fertilizer
14875
