22 / INSTALLATION
INSTALLING IMPLEMENT HARNESS AND
SENSORS
The implement harness provides custom fit and functions required by the
implement. Each harness branch is labeled for location (row 1, row 2, etc.)
or sensor (lift switch) for routed connection. Some sensors may require
special adapters for connection.

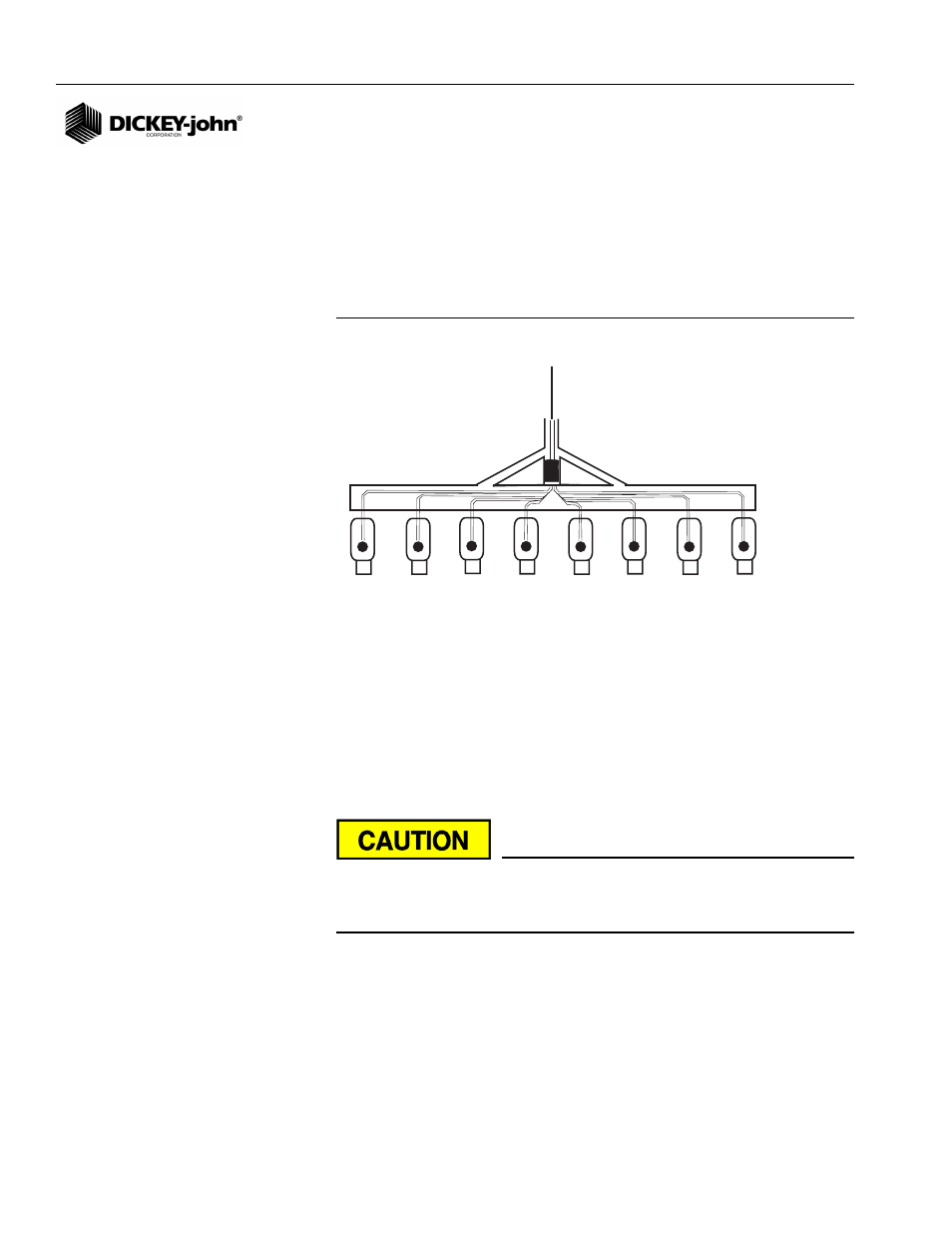

Figure 12
Implement Harness/Sensors
1. Install sensors onto seed tubes using tie-wraps.
2. Route implement harness to the appropriate locations; provide slack
near moving parts to allow for movement. Attach harness to the
implement using tie-wraps.
3. Make sure the hitch connections will connect to the tractor connections
with the proper amount of slack for implement movement.
The harnesses must not obstruct moving parts of the tractor or
implement. Take care when routing harnesses to retain them at
proper locations with adequate slack for movement.
Row
1
Row
2
Row
3
Row
4
Row
5
Row
6
Row
7
Row
8
Implement connector(s)
rows and accessories
Seed sensors
