Rim installation instructions (continued), Profile series exit device – SARGENT Profile Series Exit Devices User Manual
Page 8
6
800-810-WIRE (9473) • www.sargentlock.com • A7455B
Profile Series Exit Device
Copyright © 2003, 2008, Sargent Manufacturing Company
, an A
SSA ABL
O
Y
Group company
. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Wires & connector
go through fire
stop plate
Rim Installation Instructions (Continued)

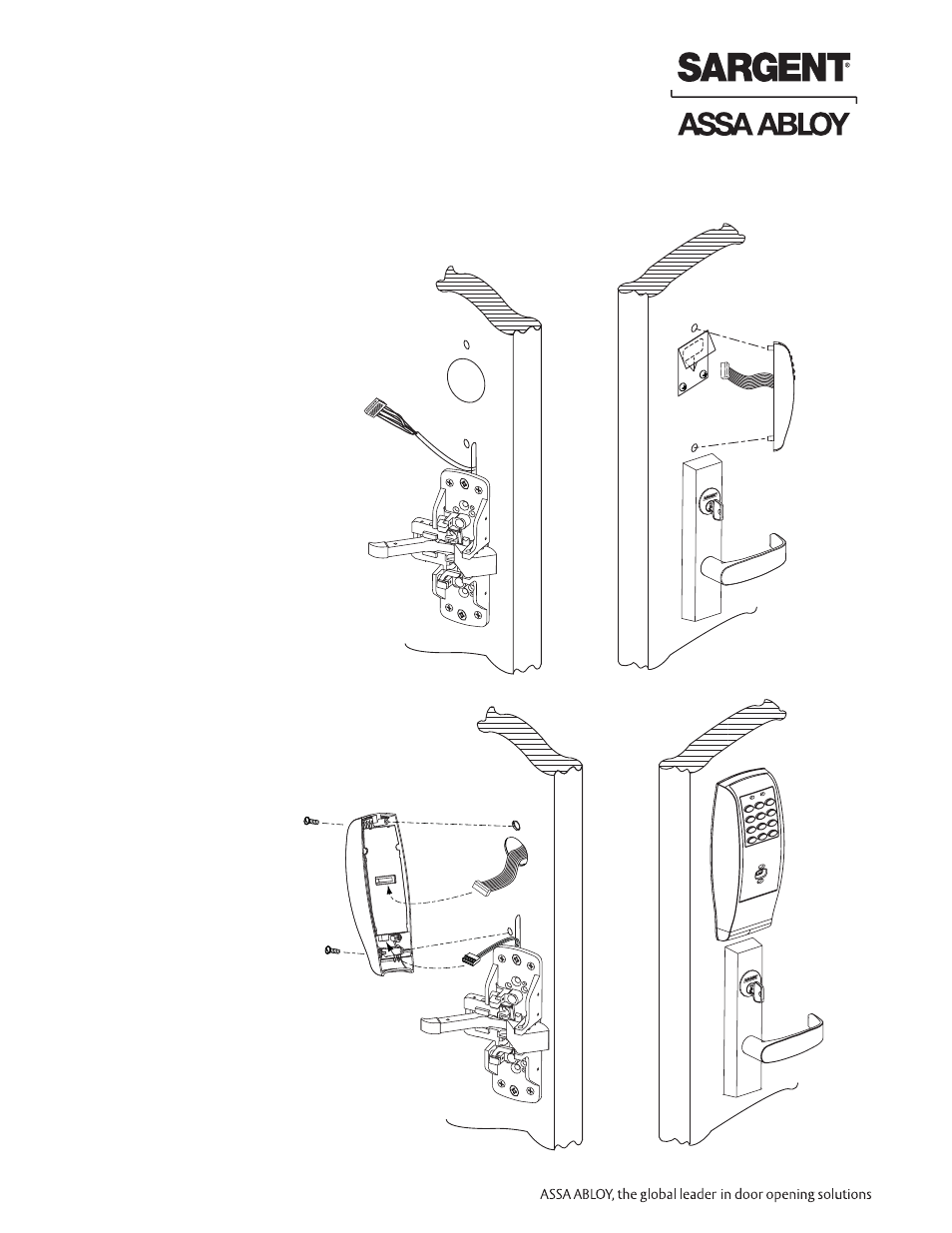

Step #4 – Installation of Outside and Inside Escutcheon
1. Insert wires and connector from the
outside of the door, through the fire
stop plate (if required)
•
For non-12- exit devices, feed wire
harness from keypad assembly through
hole in door
• Straighten keypad
escutcheon and tighten
the #8-32 x 1-1/4"
pan head screw
Outside
of door
IInside
of door
