Profile Series Exit Device
Copyright © 2003, 2008, Sargent Manufacturing Company
, an A
SSA ABL
O
Y
Group company
. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Door Name
• If SofLink™ Plus is used, door name must be changed via PC
Sequence Number
• Single digit - 0-9
• Latest transaction - 0
• Oldest transaction - 9
User Number
• Three digits - 001 through 099
• User numbers assigned at time of programming
Transaction Descriptions
• Will vary
Optional Equipment
• Printer Paper (6 Rolls) - 52-0034 used for infrared
printers
• Infrared Printer - 52-2069 - used to download the
user and transaction type.
• Remote Unlocking - 52-2071 - used for remote
unlocking of low profile mortise lock. When the
deadbolt is thrown and the remote unlocking feature
is used, both the latchbolt and deadbolt can be
retracted by turning the lever handle.
Transaction Log 8
To output the last 15 or 1000 transactions, enter 99 # Supervisory or
Master Code * 70 # 0 # 0 # **.
• Examples on this page are for
the 100 user, 15 transaction unit
To LED
location
Infrared
Printer
(52-2069)
Door Name 5666
Seq User Trans
0 001 —
1 003 —
2 003 —
3 020 —
4 003 —
Transaction
Number Transaction
Type
User
Number
Door
Name
Note: Seq. # 0 is the programming
request to output the entries.
Sequence numbers 1-9 are
the actual entries.

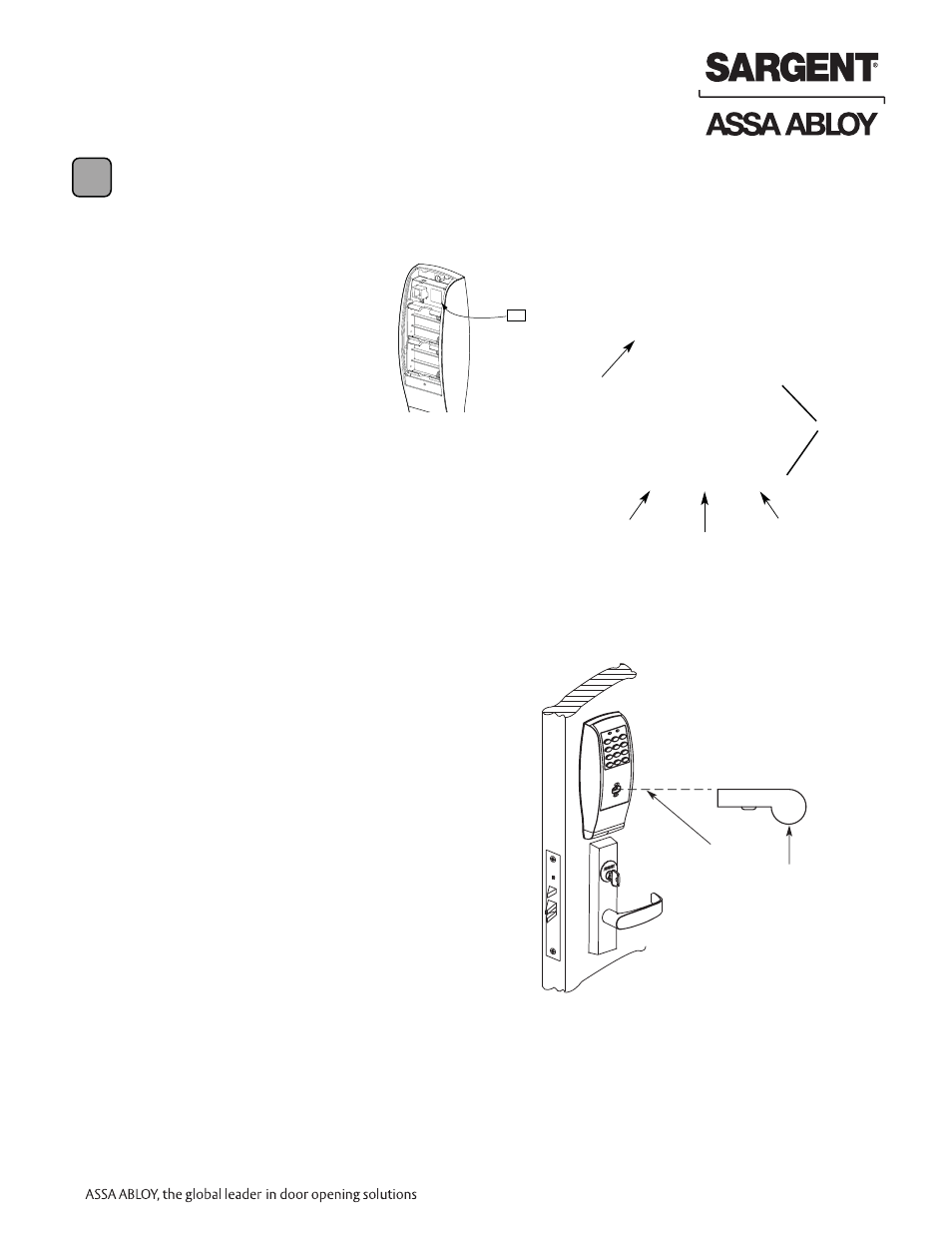

Hold an infrared printer up to the infrared
LED (as shown). An HP82240B Infrared
Printer can be used to download information
from the keypad to a printout.
-
+
-
+
-
+
-
+
+
-
+
-
LK
Varies
