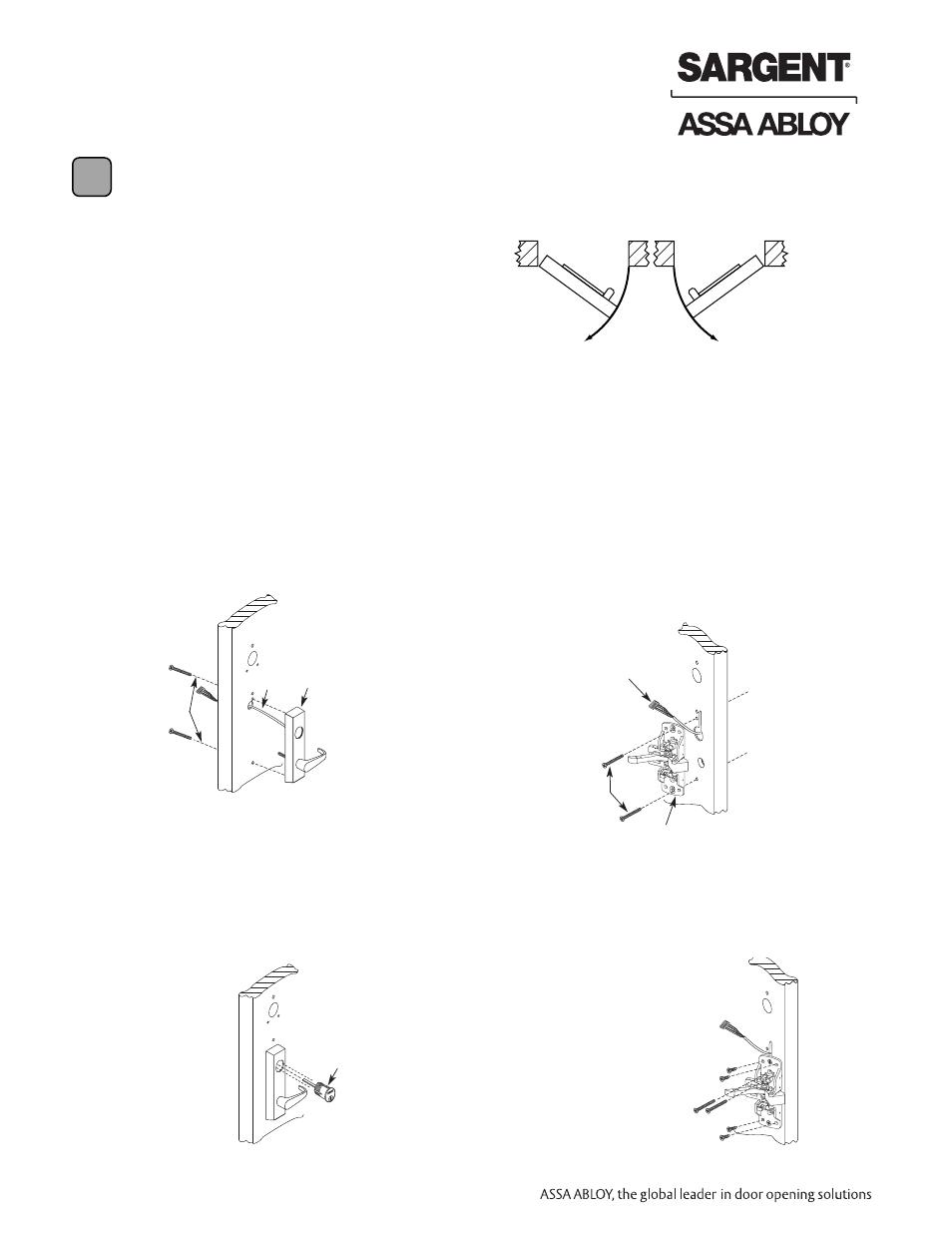

Rim Installation Instructions for Rim Type
Exit Device 8877/8878 3
Inside
Outside
Left Hand
Reverse Bevel
"LHRB"
Right Hand
Reverse Bevel
"RHRB"
NOTE: BEFORE STARTING
• This device is non handed
• Door should be fitted and hung
• Verify box label for size of exit device,
function and hand
• Install mullion in frame, if used
Step #1 – Exit Hardware & Door Prep
Prep Door according to Exit installation instructions A6770
Step #2 – Installation of Outside and Inside Trim
2. Inside Trim
• Route “ET” harness along track cutout for wood doors and
access hole for metal doors
• Mount exit chassis carefully. DO NOT PINCH HARNESS WIRES
• “ET” spindle will engage into the hub of exit device chassis
• Secure chassis with (2) 1/4-20 x 2 3/8" flat head
machine screws
1. Outside Trim
• Route harness through under cut of cylinder hole
and out to other side of door
• Mount “ET” control onto door
4. Securing Cylinder
• Secure cylinder to exit chassis using
(2) #12-24 x 1 7/8" connecting screws
• Fasten exit chassis to door using (4) #10 wood
screws or #10-24 machine screws
3. Cylinder Installation
• Insert cylinder into “ET” control
• Mate cylinder tailpiece into hub of exit device
chassis
• Make sure “ET” harness is clear of cylinder and
cylinder tailpiece
(#34)
Cylinder
ET Control
Wire
harness
Center line for
(2) 1/4 - 20 x 2 3/8’’
flat head
machine screws
Wire harness
(2) 1/4-20 x 2-3/8’’
Flat head
machine screws
secures ET
Exit Chassis
(2) #12-24 x 1-7/8’’
Flat head
connecting
screws for
cylinders
(4) #10 Wood
screws or #10-24
machine screws
Outside
of door
Inside
of door
Outside
of door
Inside
of door
