Passport 1000 PG Cylindrical Lock

6 – Remove Outside Lever Only

1. Insert key, rotate 45° clockwise and hold (Fig. 6A).
2. Depress lever retainer with push pin tool (provided).

7 – Securing the Lock to Door

1. Feed wire and connector:
- For wood door, feed wires up through the

routed channel as shown (Fig. 7A).
- For metal door (not shown), feed wire and

connector through inside of door and out

hole on outside of door (not shown).
2. Attach inside rose assembly and secure

with screws, as shown (Fig. 7A).
3. Finish securing latch by tightening (2)
#8-32 x 3/4”combination screws
(see Fig. 7A & 4A).

8 – How to Change Cylinder

(If Necessary)

1. With outside lever in hand, use standard

pliers to pull out cylinder retainer.
2. Remove key and cylinder from lever.
3. Insert new cylinder.
4. Secure by pressing cylinder retainer flush.

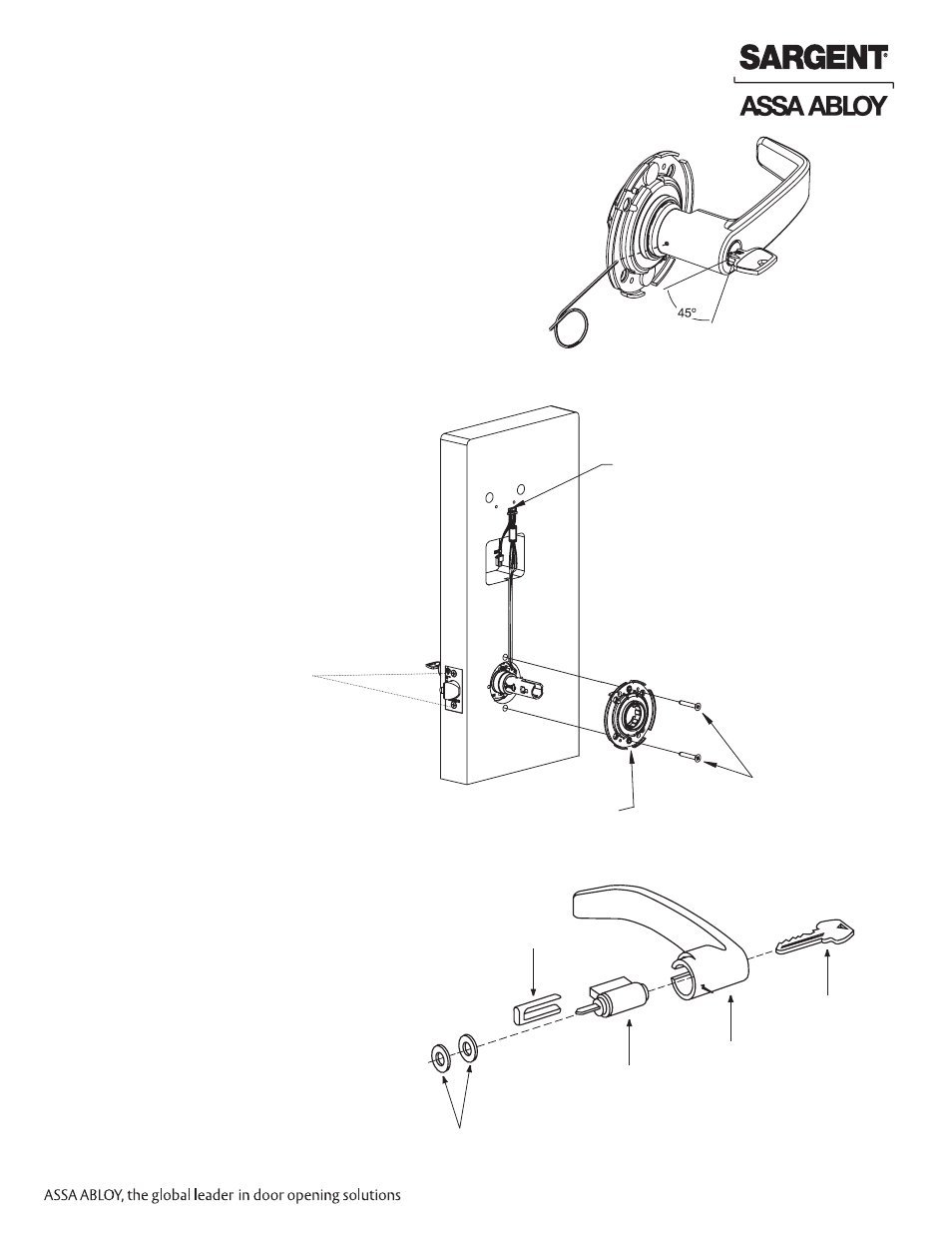

Fig. 6A

Fig. 8A

Inside of door

Fig. 7A

Wire Harness
(From Lock body)

(2) #10-32 x 1-1/4”
Flat Head Machine
Screws (Secures
outer spring housing)

Spring housing assembly

Washers (Only 30- Prefix)

Cylinder

Outside Lever

Key

Cylinder Retainer

(2) #8-32 x 3/4”
Combination Screws
