Passport 1000 PG Cylindrical Lock

9 – Assemble Trim

1. Verify cylinder spacer is inserted into horizontal slot

of lock body.
2. Place rose scalp over shaft of lock body against

surface of door (Fig. 9A); hand-tighten (clockwise).
3. Attach lever (push until engaged).

10 – Installation of Wire Cover Plate

(Wood Door Only)

1. Align wire cover plate with chassis side against exit

chassis cover and mark hole positions.
2. Ensure stamped side of plate goes against door.
3. Drill (2) 3/32” diameter by 1/2” deep holes (Fig. 10A).
4. Cover wires with cover plate by securing plate to

door directly above rose (note orientation) using

(2) #6 x 1/2” flat head security torx wood screws (Fig.10A).
NOTE: Position lower edge of cover plate against the

rose to ensure no wires are visible (Fig. 10B).

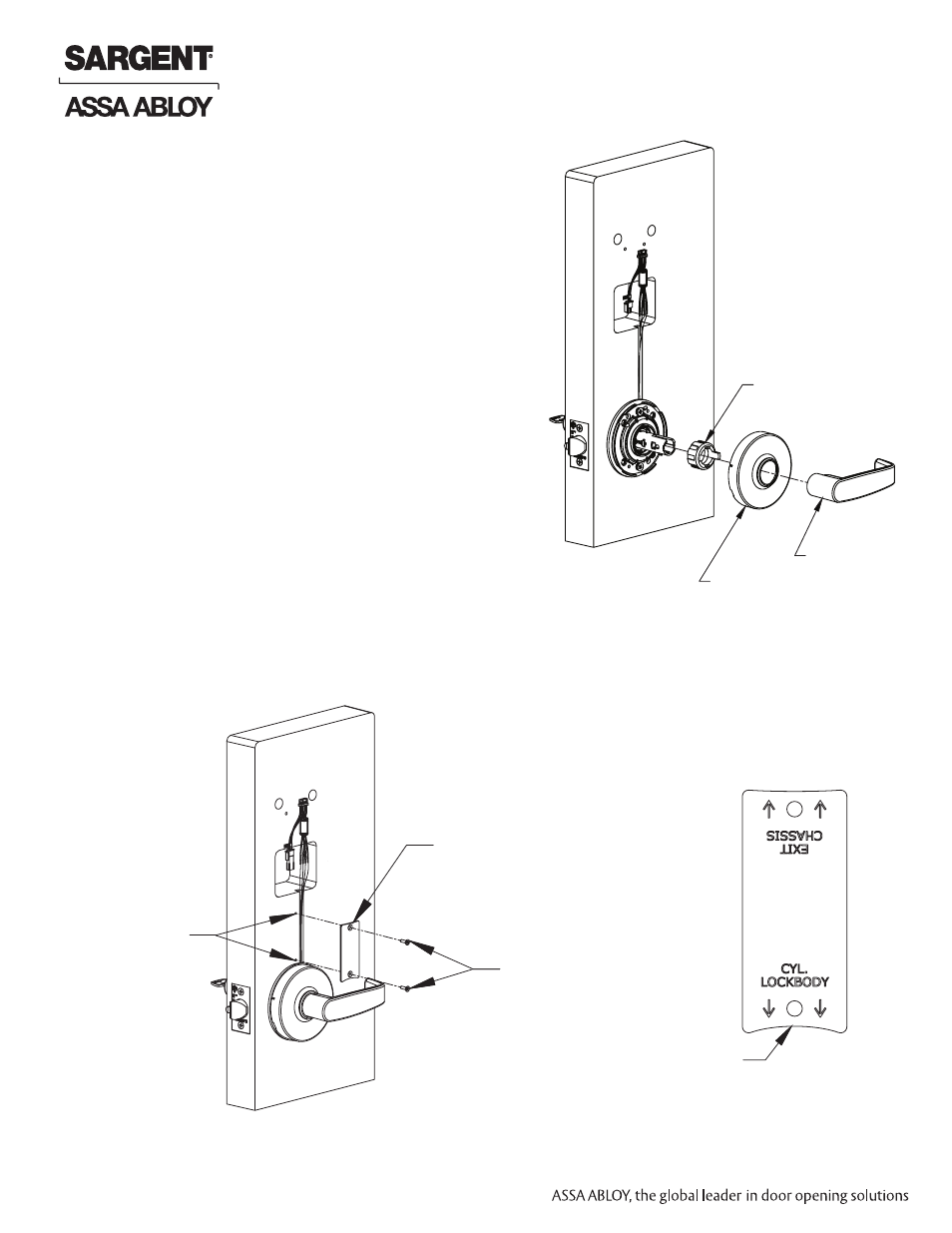

Fig. 9A

Fig. 10A

Fig. 10B Detail

Bushing

Inside lever

Rose scalp

(2) 3/32” dia.
by 1/2” deep
holes

This side down

(2) #6 x 1/2” flat
head security
torx wood screws

Wire
cover
