Passport 1000 PG Cylindrical Lock
Installation Instructions
6

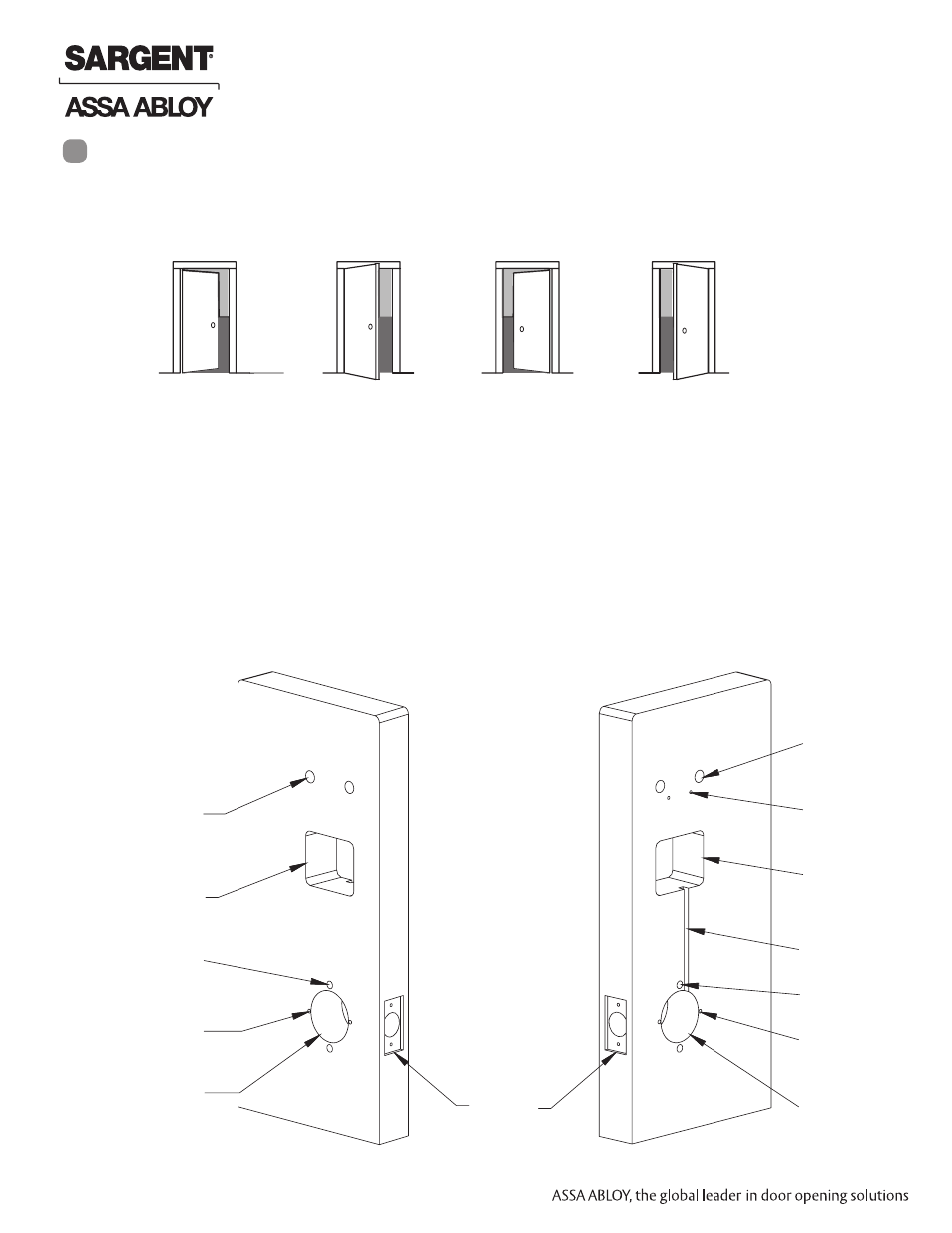

1 - Verify Hand and Bevel of Door
LH
Left Hand
Hinges Left
Open Inward
LHRB
Left Hand
Reverse Bevel
Hinges Left
Open Outward
RH
Right Hand
Hinges Right
Open Inward
RHRB
Right Hand
Reverse Bevel
Hinges Right
Open Outward
Stand on outside/locked side of door when determining the door hand.
2 – Door Preparation
Prior to installation, all holes must be free of burrs, debris and sharp edges.
If doors are not properly reinforced per ANSI 115.2, commercially available reinforcements should be installed.
Prepare door according to appropriate template:
• Field template A7949 (or wood doors).
• Manufacturer’s template 4629 (for metal doors).
Outside of Door Inside of Door
Through- Bolt Holes
Controller Cutout
Post Holes
Alignment Holes
Lock Body Holes
Mortise
Pocket and
Latch Hole
Through Bolt Holes
Backplate Mount Holes
Controller Cutout
Wire Run Channel
Post Holes
Alignment Holes
Lock Body Holes
