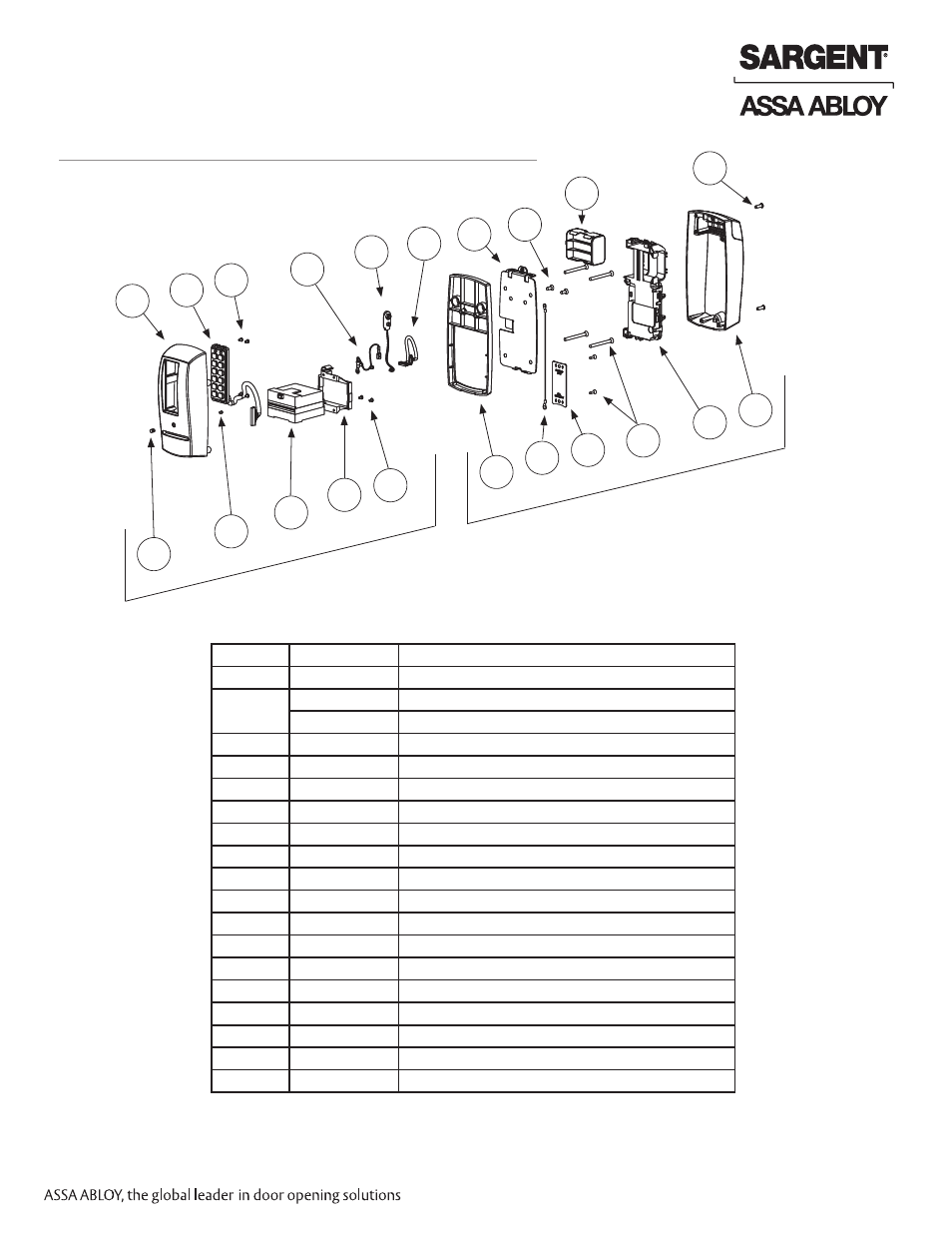

PG Standalone With Card Insert and/or Keypad
ITEM PART No. DESCRIPTION
1 52-0757 Lens (Cliplite)
2
52-0736 Outside Passport Escutcheon (With Keypad)
52-0737 Outside Passport Escutcheon (Without Keypad)
3 52-3593 Slim Style Keypad Assembly (KP-PG Only)
4 52-0760 Light Pipe (Cliplite)
5 01-9299 4-40 X 3/16 Machine Screw
6 52-0741 LCU Card Reader
7 52-0742 Card Reader Mount
8 52-2501 Grounding Harness
9 52-3597 9V Battery Harness
10 52-3599 Wire Harness LCU to Inteface PCB
11 52-0875 PG Passport 1000 Spacer (Included only with 1-3/8” thick doors)
12 52-0748 Inside Mounting Plate
13 52-3804 Screw Pack
14 52-3906 Grounding Harness
15 52-0871 Wire Cover Plate
16 52-0751 Battery Cartridge
17 52-4245 Modular Component
18 52-3592 Inside Escutcheon Assembly
2
3
5
8
9
10
12
13
1
4
6
7
5
11
13
16
18
14
17
13
15
10/31/12
A7809B 4
