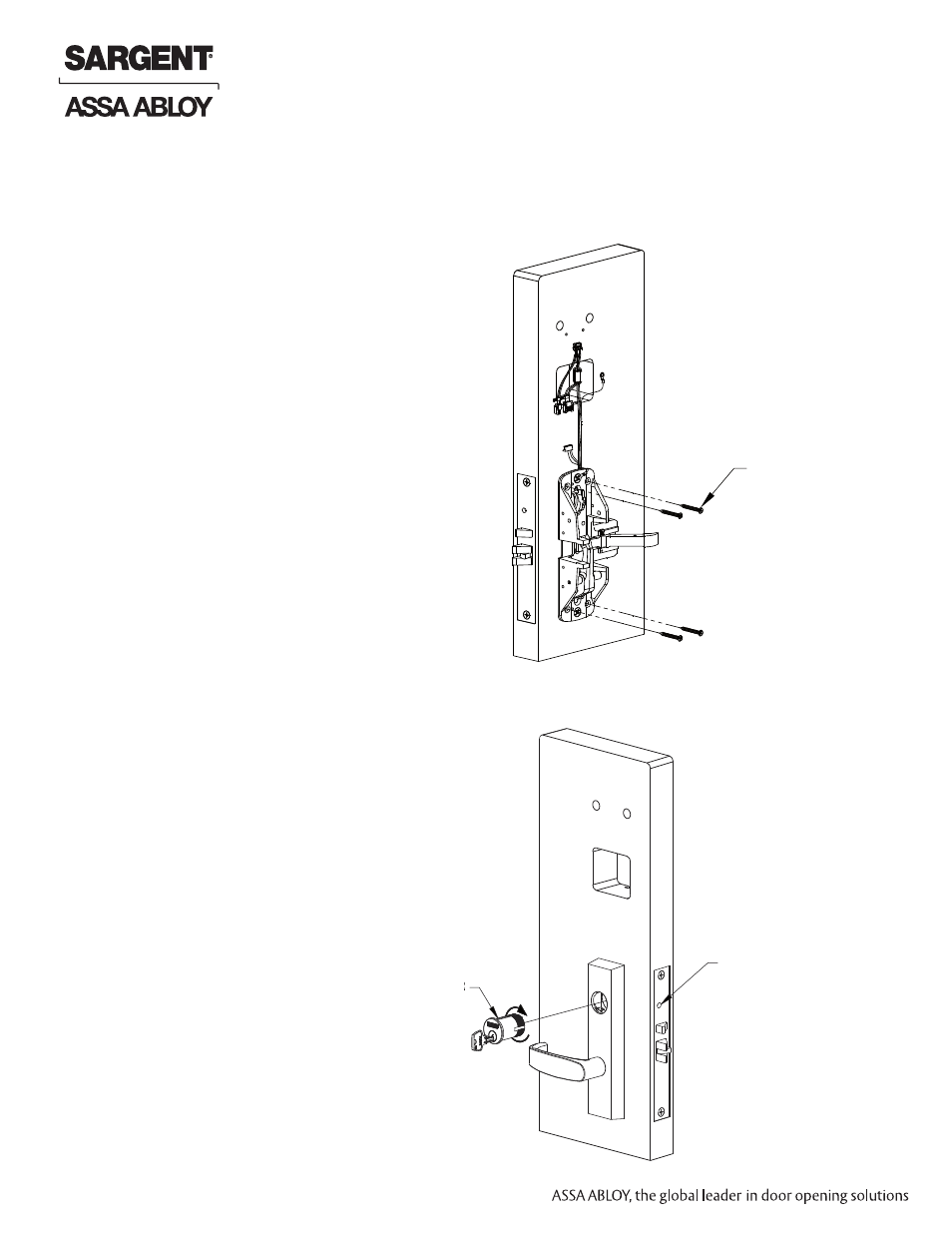

Fig. 2B3
(2) #14 x 2-3/8”
flat head machine
screws (Secures ET)
#46 Cylinder
Outside of
door
Fig. 2C
Mortise Installation Instructions (Continued)
2 – Installation of Outside Trim,
Exit Chassis and Cylinder (Continued)
B. Exit Chassis (Continued):
Fasten exit chassis to door using (4) #10
wood screws or #10-24 machine screws
(Fig. 2B3).
C. Cylinder Installation
Note: For devices without cylinders, skip this section.
1. Back cylinder set screw out of mortise lock.
2. Insert cylinder through “ET” control and thread into
mortise lock until cylinder is flush with “ET”.
3. Tighten cylinder set screw.
Cylinder set
screw
