3-7 SM-QRC-2000 inStAllAtion And opeRAtion
SECTION 3:
INSTALLATION AND OPERATION
3.01 Installation
The Tweco ® Robotics QRC TM -2000 Nozzle Cleaning Station
is easy to install. The following are instructions to aid in
mounting and making all necessary connections to your
cleaning station. If you have any questions concerning
these instructions, contact Tweco ® Robotics Technical
Services for further assistance.
3.02 Mounting the QRC TM -2000 Nozzle
Cleaning Station
Install the nozzle cleaning station inside the robot work
cell to make it easy to access. The nozzle cleaning station
should be mounted to allow easy access to the robot arm,
but in a manner that will not interfere with other operations

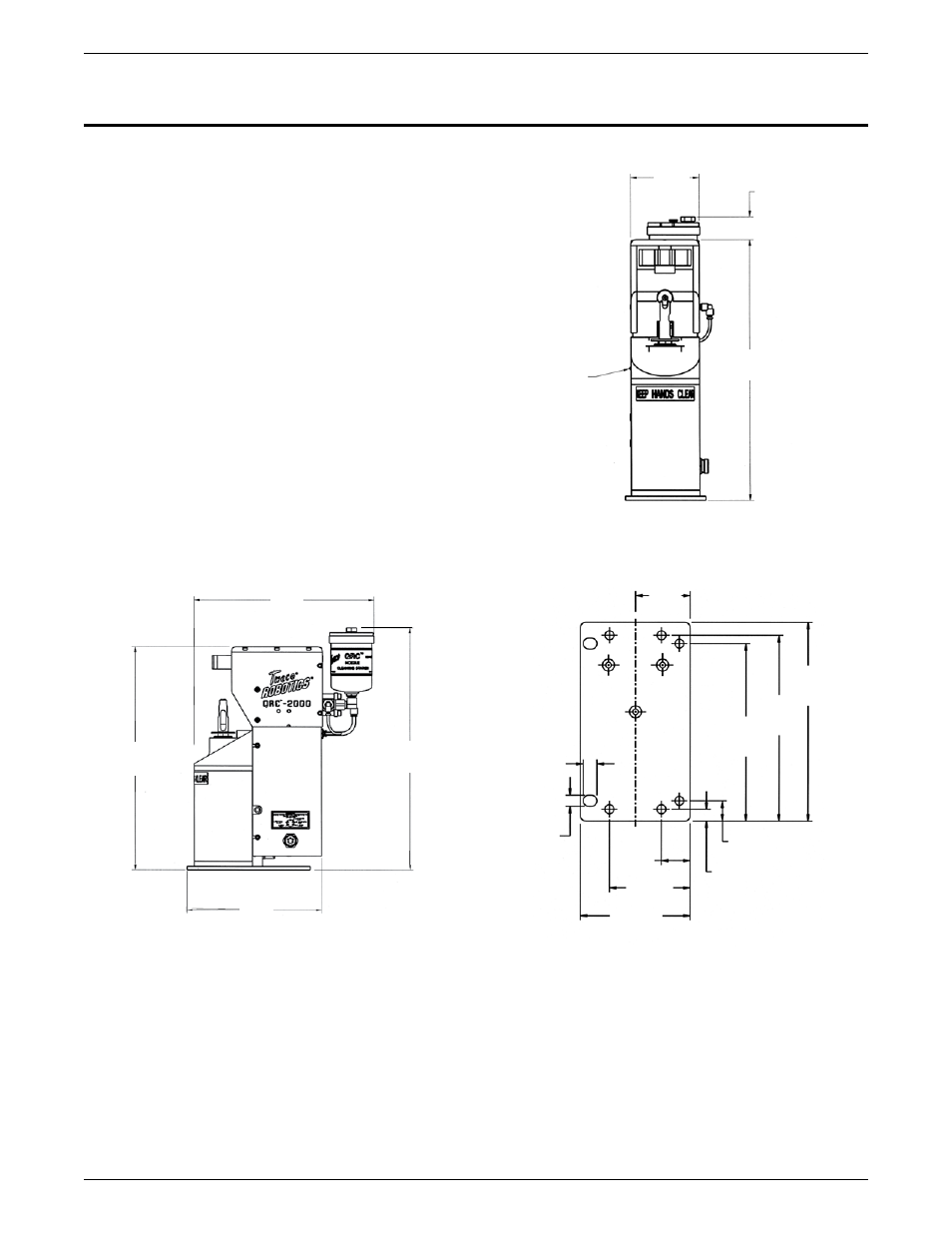

like loading and unloading fixtures. The drawing shows the
hole pattern required to mount the QRC TM -2000 as well as
important clearance dimensions.
The nozzle cleaning station is mounted using four 3/8”
diameter bolts in the holes provided on the base. The unit
should be leveled.
13.1
[334]
16.4
[416] 17.8
[452]
9.8
[249]
4.3
[108]
1.4
[36]
RESET
SWITCH
16.4
[416]
IN
[
mm ]
.625
[15,88]
.500
[12,7]
5.000
[127]
36.81
[93,5]
1.319
[33,5]
.535
[13.59]
8.032
[204,01]
8.410
[213,61]
9.000
[228,6]
IN
[
mm ]
.912
[23,16]
2.500
[63.5]
Figure 1
IN
[
mm ]
