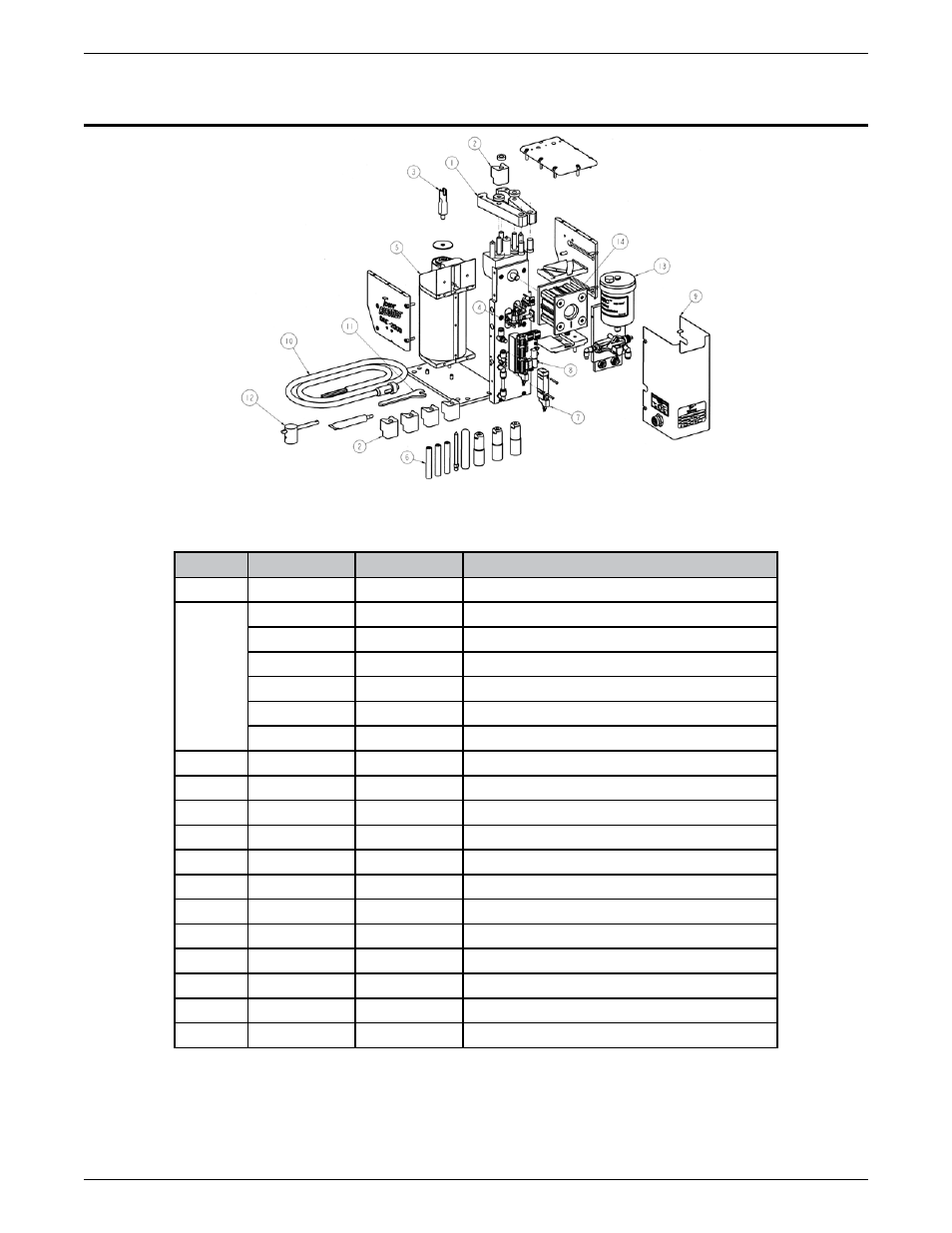

7-19 SM-QRC-2000 ReplACeMent pARtS
SECTION 7:
REPLACEMENT PARTS
Item No. Part No. Stock No. Description
1 QRC-2103 3500-1268 Jaws Assembly
2
QRC-2102A 3500-1205 Clamp Block 0.938” (23,8mm).O.D. Nozzles
QRC-2102B 3500-1206 Clamp Block 1.000” (25,4mm).O.D. Nozzles
QRC-2102C 3500-1207 Clamp Block 1.062” (27,0mm).O.D. Nozzles
QRC-2102D 3500-1208 Clamp Block 1.125” (28,6mm).O.D. Nozzles
QRC-2102E 3500-1209 Clamp Block 0.875” (22,2mm).O.D. Nozzles
QRC-2102F 3500-1349 Clamp Block .787” (20mm) O.D. Nozzle
3 See Table 1 See Table 1 Reamer Blades
4 QRC-2205 3500-1266 Limit Switch Kit (4 Switches Included)
5 QRC-2300 3500-1269 Drive Lift Assembly
6 QRC-PG2 3500-1272 Programming Sleeve and Gauges
7 QRC-2213 3500-1263 Solenoid Valve Assembly
8 QRC-2204 3500-1249 Circuit Board
9 QRC-2222 3500-1270 Shroud and.Screws
10 QRC-2225 3500-1264 Interface Power Cord
11 QRC-440 3500-1242 9/16” (14mm) Flat Wrench
12 QRC-441 3500-1243 “T” Wrench
13 QRC-417 3500-1226 10 fl. oz. (292 ml) Lubricator Reservoir
14 QRC-2118 3500-1271 Clamp Cylinder
Table 5: QRC TM -2000 Replacement Parts
Figure 23
1 ea. QRC TM 2000
1 ea. Lubricator Oil Reservoir Assembly
1 ea. QRC TM -PG2 Programing Sleeves and Gauges
1 ea. Set of Clamp Blocks (A,B,C, D, and E).
1 ea. QRC TM -440 9/16” (14mm) Wrench
•
•
•
•
•
1 ea. QRC TM -441 “T” Wrench
1 ea. SuperLube ®
1 ea. Yellow Power Cable
Safeguards, Assembly, and Operation Manual
•
•
•
•
QRC TM -2000 Packaging List
