Tweco 350 4R Wirefeeder - Manual (Page 54)

weldskill 250, 350 appendix
Appendix A-2 Manual 0-5182
1
2
8
3
5
12
13
11
15
14
4
6
9
10
7
Art # A-10329_AB
16
18
17

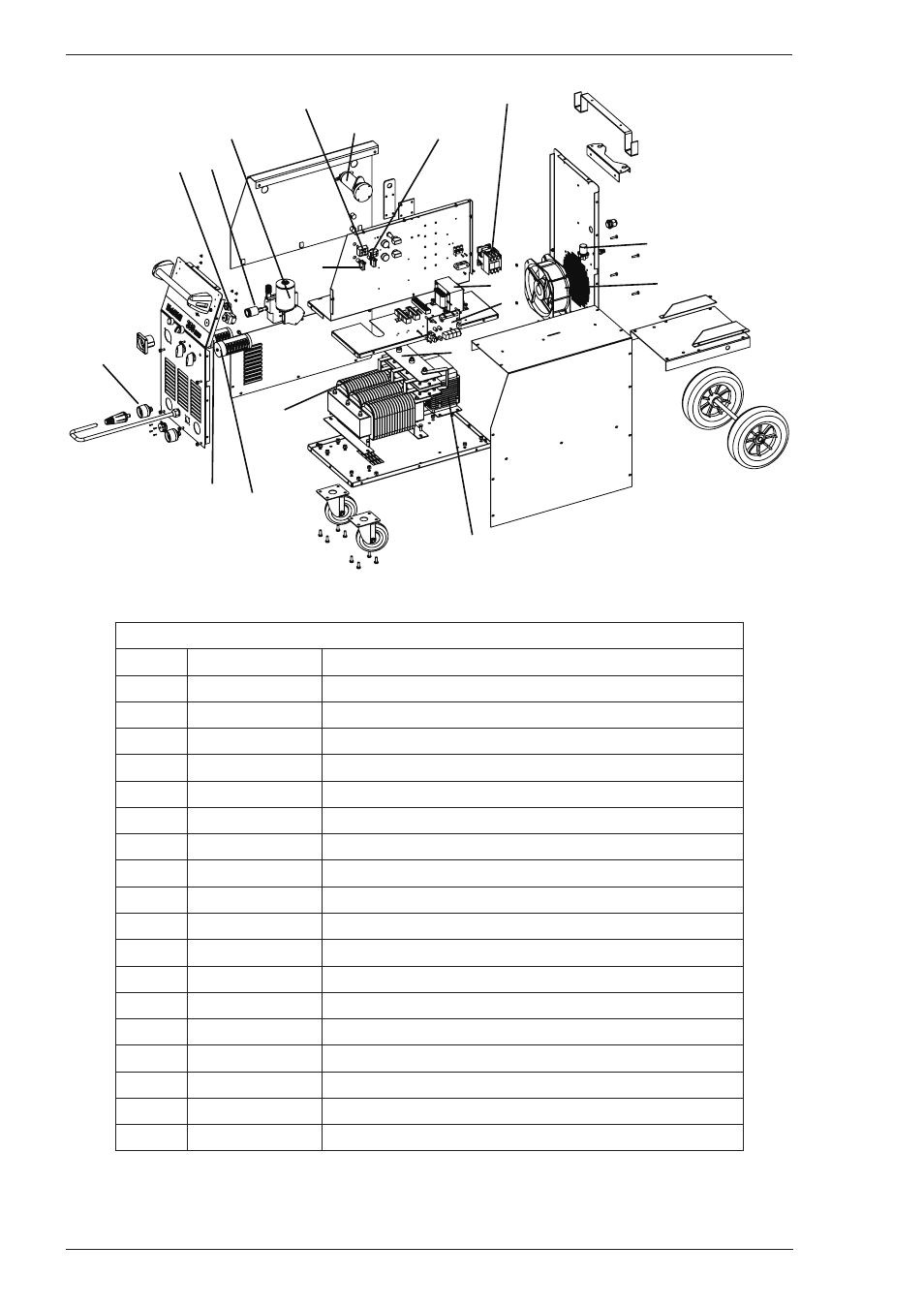

WELDSKILL 350 MIG SPARE PARTS
WELDSKILL 350 MIG SPARE PARTS
Seq. Part No Description
1 W7004501 Contactor
2 W7004502 PCB Control
3 W7004503 Solenoid Valve, 36VAC
4 W7004505 Switch, On/Off, 415V
5 W7004506 Fan Assembly, 220V
6 W7004540 Wire Drive Assembly
7 W7004541 Local Remote Switch
8 W7004537 Control Transformer
9 W7004515 Inch/Purge Switch
10 W7004518 Switch 2T/4T/Spot
11 W7004500 Main Transformer
12 W7004507 Inductor Assembly
13 W7004508 Rectifier Assembly (includes thermostat) 400A
14 W7004509 Switch, Coarse Voltage
15 W7004510 Switch, Fine Voltage
16 W7004504 Wire Reel Hub
17 W7004512 Socket Dinse, 50mm
18 W7004542 Euro Adaptor, (includes rear stem assembly)
