operation weldskill 250, 350
Operation
SECTION 4:
OPERATION
4.01 Power Source Front Panel

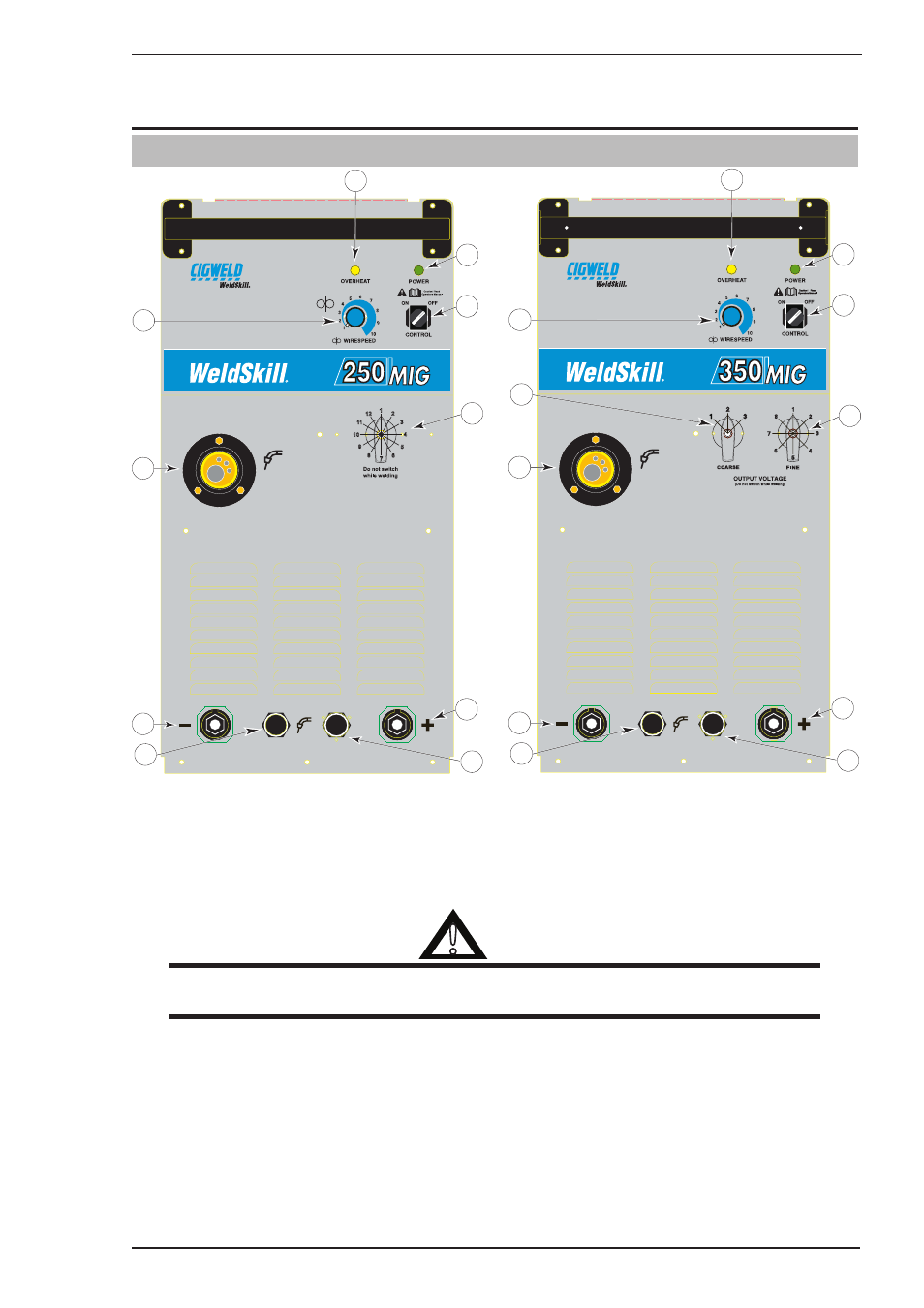

Figure 4-1 WeldSkill 250 & 350 MIG Front Panel
1. POWER ON INDICATOR/MAIN POWER CONTROL SWITCH
The Power ON Indicator illuminates when the Main Power Control Switch ON/OFF knob is in the ON posi-
tion and the correct mains voltage is present.
!
WARNING
When the light is lit, the machine is connected to the Mains supply voltage and the internal electrical
components are at Mains voltage potential.
2. WIRESPEED CONTROL
The Wirespeed Control knob controls the welding current via the electrode wirefeed rate. ie the speed of
the wirefeed motor.
