APPENDIX 1:
KEY SPARE PARTS
1
2
8
5
3
11
15
12
13
4
14
6
9
7
10
Art # A-10328_AB
16
17
19
18

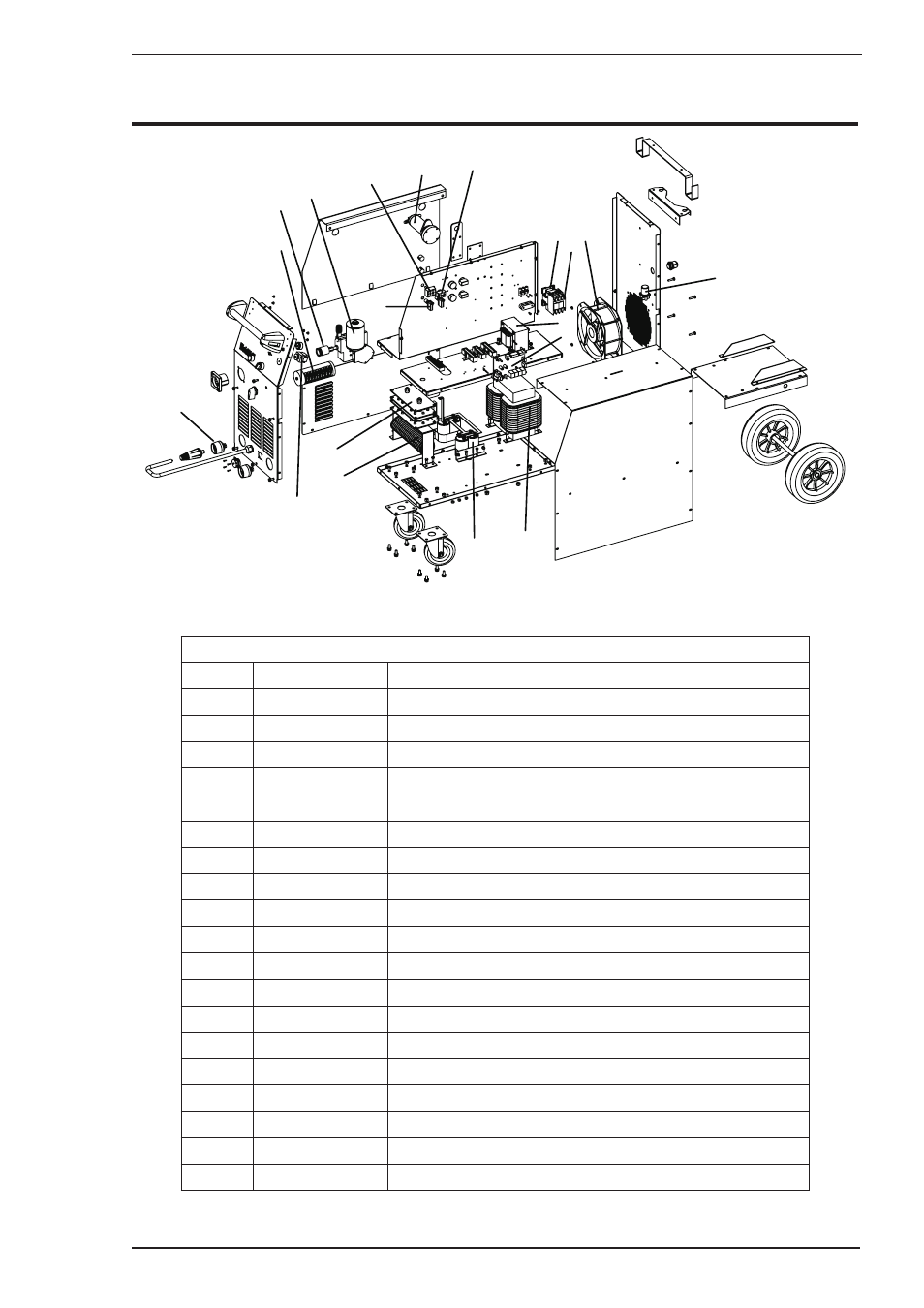

WELDSKILL 250 MIG SPARE PARTS
WELDSKILL 250 MIG SPARE PARTS
Seq. Part No Description
1 W7004501 Contactor
2 W7004502 PCB Control
3 W7004503 Solenoid Valve, 36VAC
4 W7004505 Switch, On/Off, 415V
5 W7004506 Fan Assembly, 220V
6 W7004540 Wire Drive Assembly
7 W7004541 Local Remote Switch
8 W7004513 Control Transformer
9 W7004515 Inch/Purge Switch
10 W7004518 Switch 2T/4T/Spot
11 W7004526 Main Transformer
12 W7004528 Inductor
13 W7004529 Rectifier Assembly (includes thermostat) 300A
14 W7004530 Switch Voltage 12 Position
15 W7004531 Capacitor 22000uF, 110V
16 W7004527 Auxiliary Contact
17 W7004504 Wire Reel Hub
18 W7004512 Socket Dinse, 50mm
19 W7004542 Euro Adaptor, (includes rear stem assembly)
