EXCEL ARC 6045 INTRODUCTION
Manual 0-5213 2-2 August 26, 2011
2.04 Description
The Excel Arc ® 6045 (CC/CV) is a combination constant-current and constant-voltage transformer-rectifi er type
conventional DC welding machine that provides excellent welding characteristic for STICK (SMAW), LIFT TIG (GTAW),
submerged arc & GMAW/FCAW welding as well as carbon arc gouging (CAG).
Applications include Shipbuilding, Fabrication & Construction, Heavy Manufacturing, Rental Fleets, Pipe Welding,
Refi neries & Foundries, Railcar Manufacturing, Earth-Moving Equipment Manufacturing, Pressure Tank/Vessel
Fabrication.
NOTE
Volt-Ampere curves show the maximum Voltage and Amperage output capabilities of the welding power
source. Curves of other settings will fall between the curves shown.
0
5
10
15
20
25
30
35
40
45
50
VOLT-AMP CURVES FOR CV MODE
50%
MIN.
MAX.
DC VOL
TS
DC AMPS
0 100 200 300 400 500 600 700 800 900
Art# A-10914
0
10
20
30
40
50
60
70
0 100 200 300 400 500 600 700
50%
VOLT-AMP CURVES FOR CC STICK MODE
DC VOL
TS
DC AMPS
MIN. ARC
FORCE
MAX.

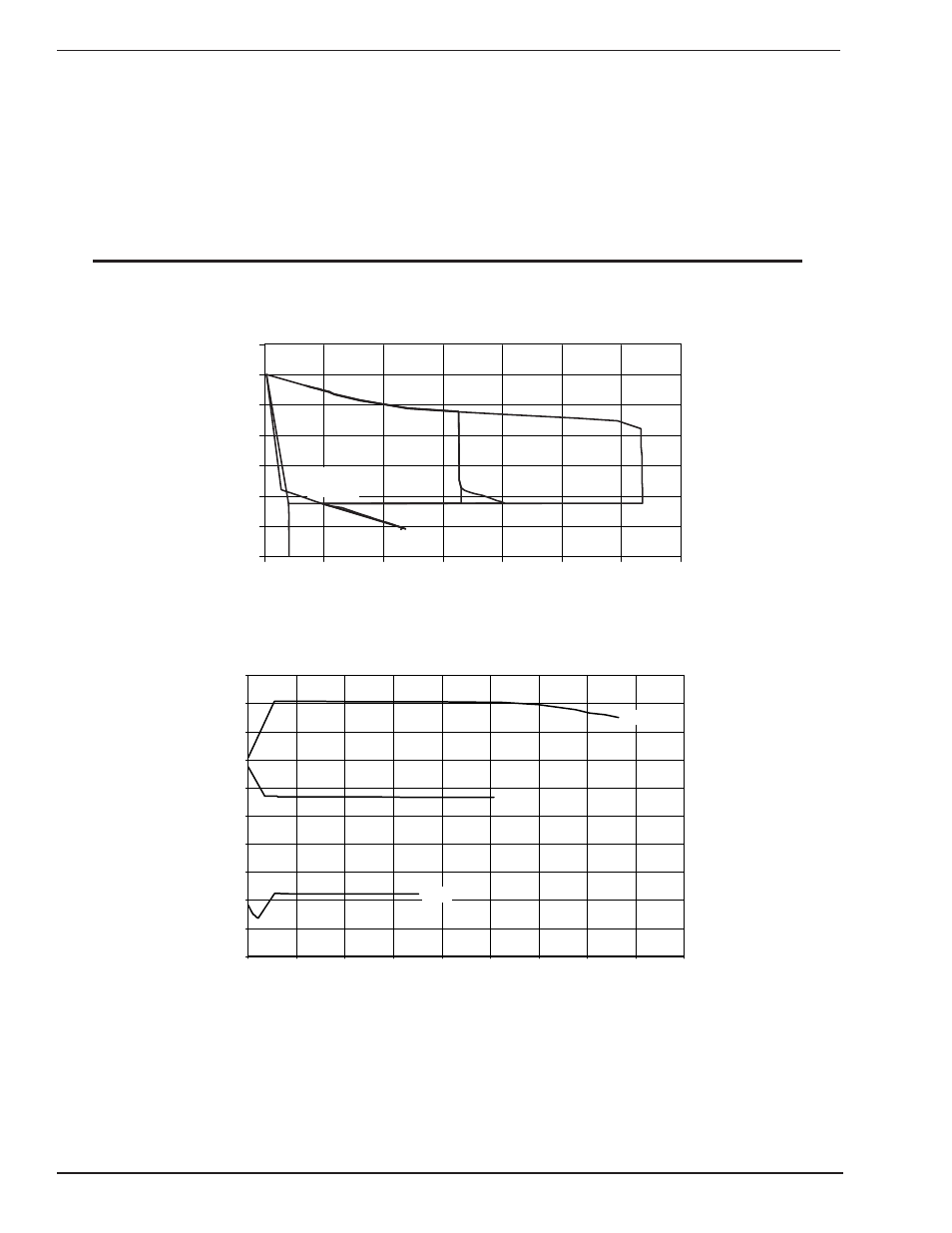

Figure 2-1: Excel Arc ® 6045 Volt-Ampere Curves
