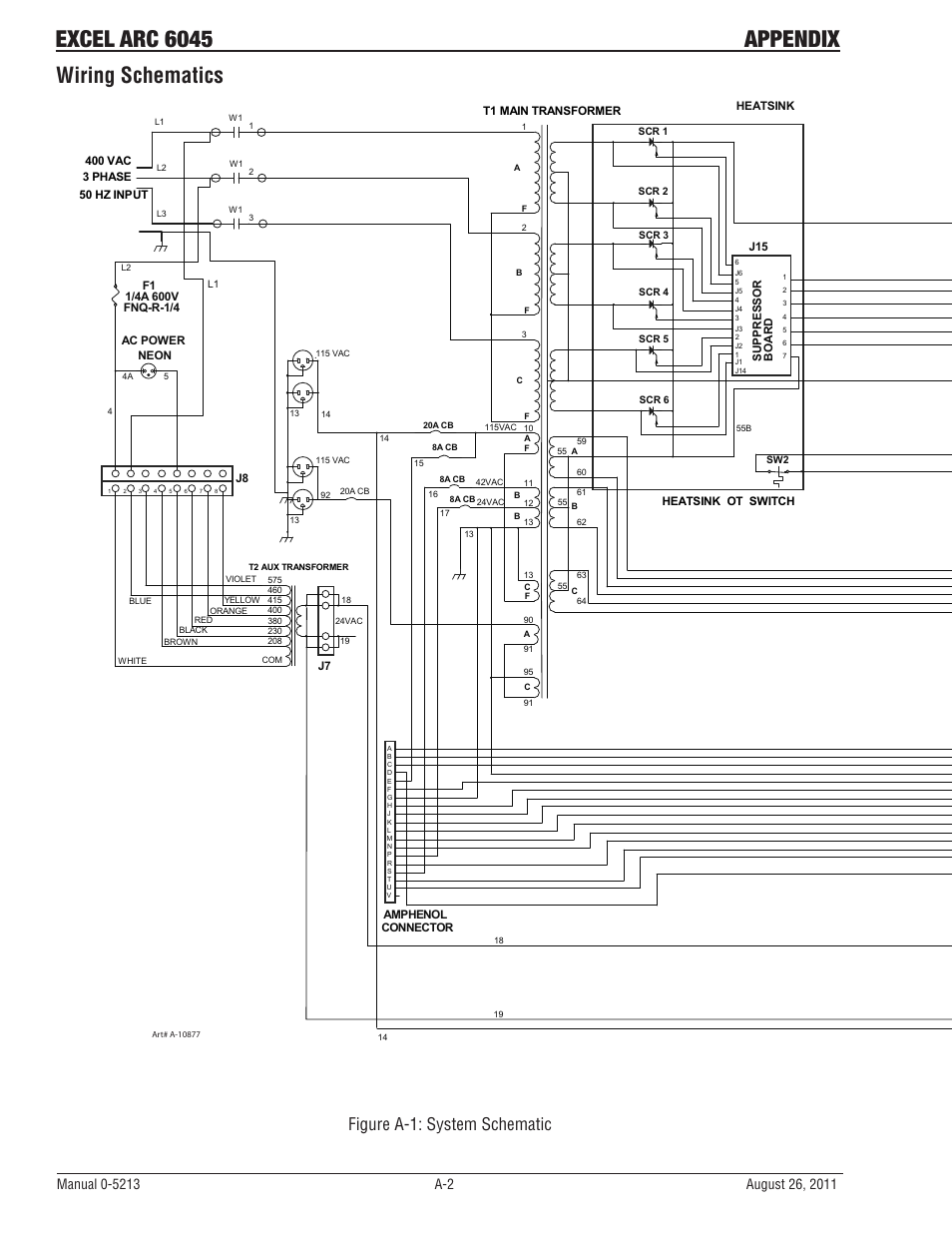

Wiring schematics, Excel arc 6045 appendix, Figure a-1: system schematic – Tweco 6045 Excel Arc User Manual
Page 40
