ULTRA-CUT 100 XT
Manual 0-5272 INSTALLATION 3-25
3.18 Install Remote Arc Starter
Site Location
Select a clean, dry location with good ventilation and adequate working space around all components.
Review the safety precautions in the front of this manual to be sure that the location meets all safety requirements.
Interconnecting cables and hoses attach to the Arc Starter. There must be adequate space around the Arc Starter for
these connections without excessive kinking or bending.

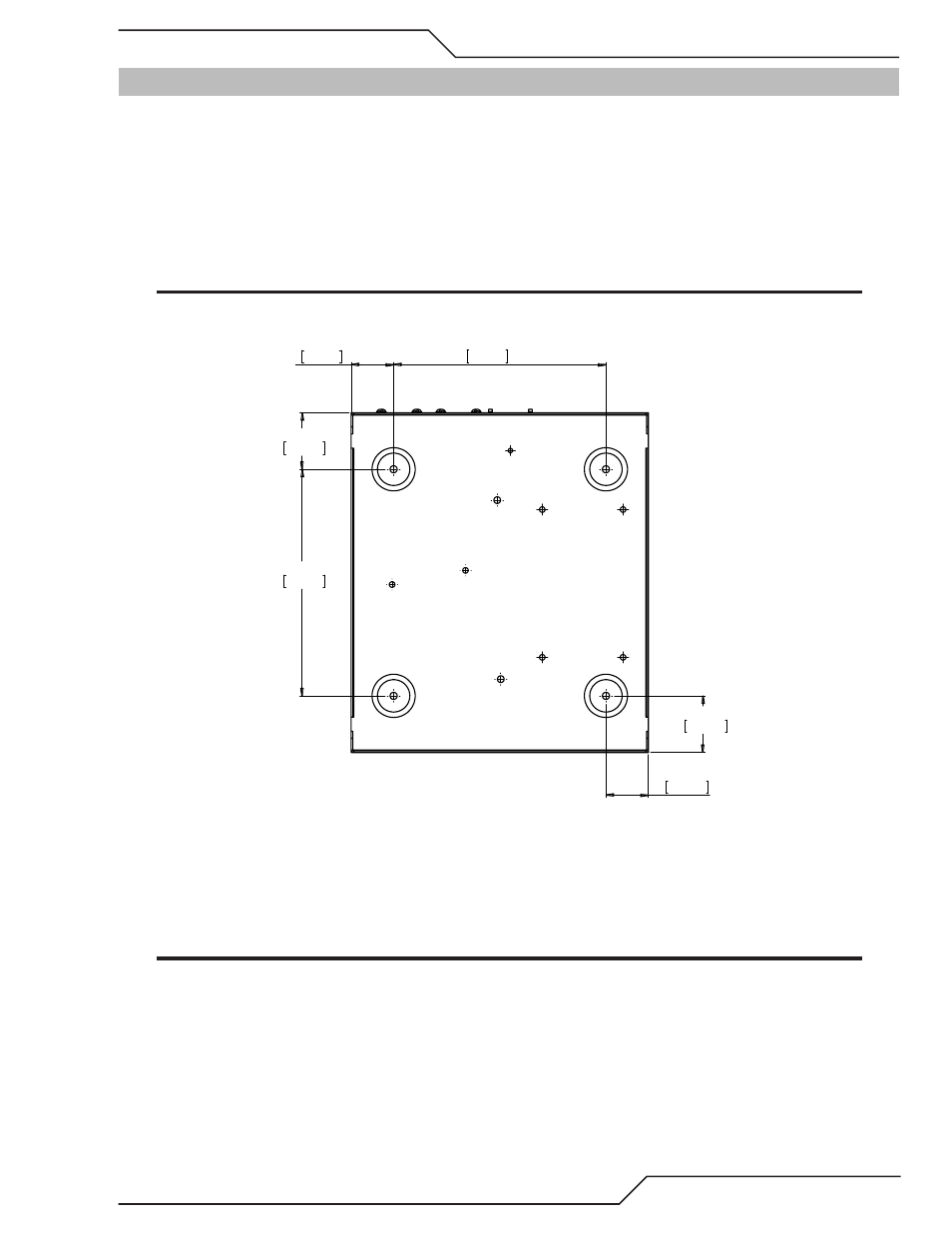

Mounting Dimensions
NOTE
Height not shown is 7.375” ( 187mm )
38.10mm
1.50in
190.50mm
7.50in
50.80mm
2.00in
203.20mm
8.00in
50.80mm
2.00in
38.10mm
1.50in
Art # A-12058
Installation
The Remote Arc Starter must be installed in a suitable location near the torch head. If the Arc Starter is mounted
to a gantry or to any other support subject to motion or vibration, fasten the Arc Starter to the support securely.
1. Loosen, but do not remove, the lower screws securing the cover to the Arc Starter. Remove the upper screws
securing the Cover Panel to the Arc Starter.
NOTE
A ground wire connects the cover to the Arc Starter base. This wire must remain in place.
