ULTRA-CUT 100 XT
Manual 0-5272 INSTALLATION 3-17

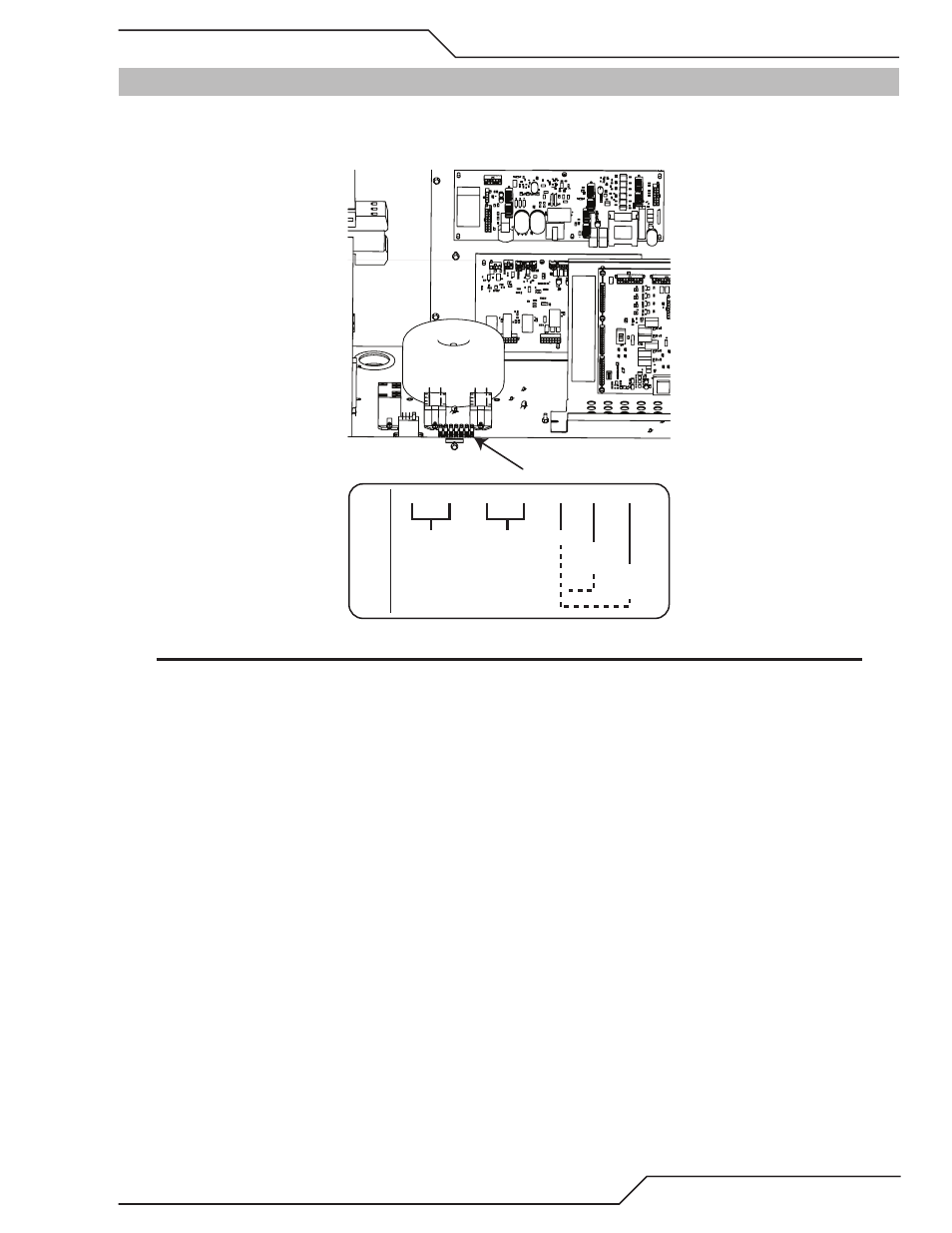

3.13 Height Control Connections
The terminal strip provides connections to negative Arc Volts (Torch or electrode), Tip Volts (Pilot) and Work.
These are for a height control that requires connection to the full non-divided arc voltage. Also available on the
terminal strip are 120VAC and 24 VAC. The allowable current draw is 100ma @ 120VAC and 1Amp @ 24 VAC.
Art # A-11900
24 VAC
@ 1A
TB4 1 2 3 4 5 6 7
120 VAC
@ 100 ma.
Work
Tip Volts
(Pilot)
Arc Volts
(Torch)
Art # A-11954
NOTE
There are holes added in the rear panel for customer wiring. This, rather than the one in the CCM will be the pre-
ferred place for customer added wiring (and strain relief) for connections to height controls, etc..
