PARTS LISTS 6-2 Manual 0-2479

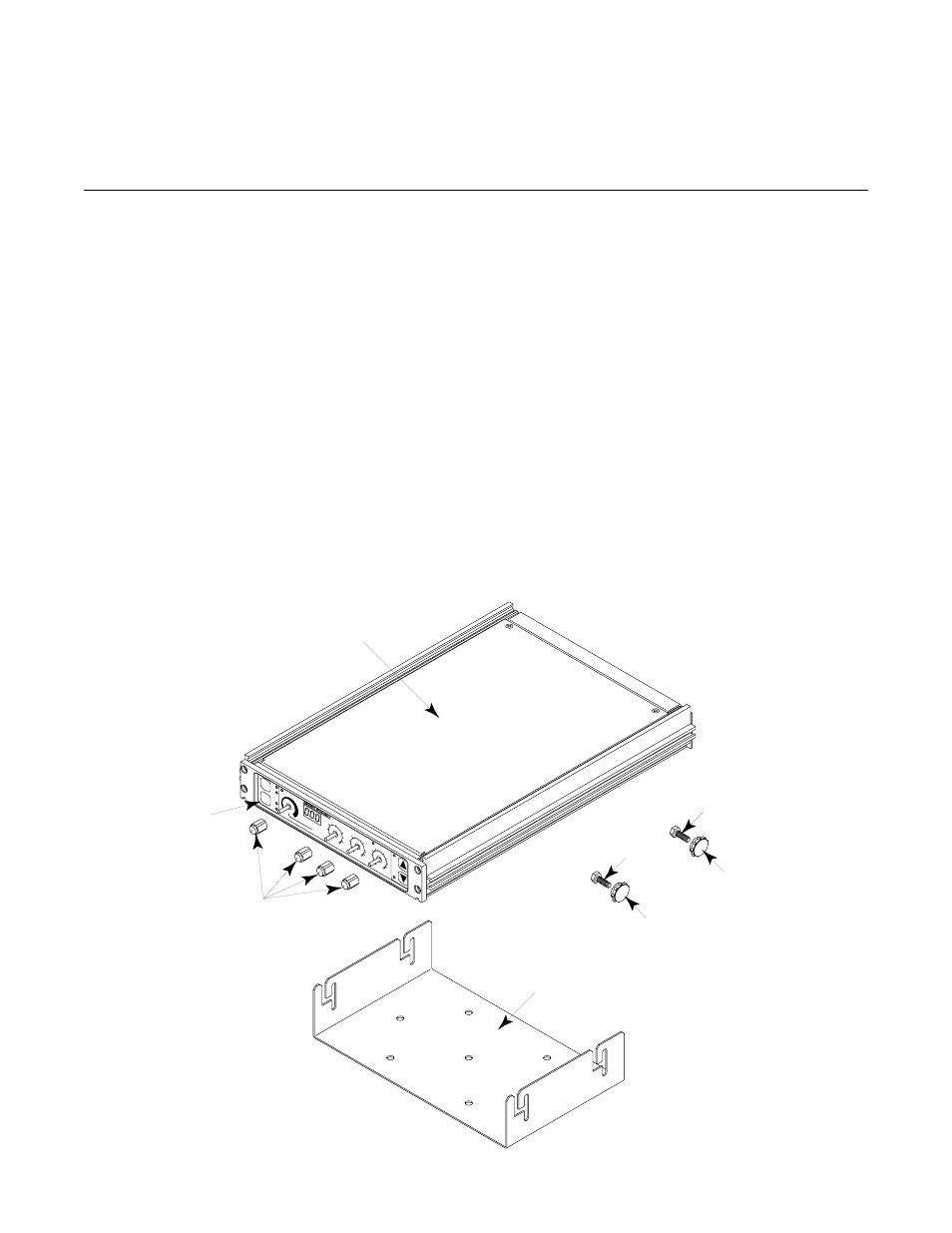

6.03 Standoff Control Assembly Parts
The replacement parts are limited as the SC10 Standoff Control Accessory is designed as a complete replacement if
failures occur.
Item # Qty Description Catalog #
1 Standoff Control Assembly
1 Complete Standoff Control Assembly With Lifter Motor 7-3405
1 Standoff Control Assembly With Items #2 - 6 3-6110
1 Standoff Control Assembly With Item #5 - 6 3-6108
2 1 Mounting Bracket 8-3483
3 4 Clamping Knob 8-3480
4 4 Machine Screw, #10-32 x 3/8", Plain Hex Head See Note
5 4 Knob, With Pointer and Skirt, Gray, 1/8" Shaft 8-3284
6 1 Front Panel Assembly includes Front Panel Bezel and Keypad 9-8604
The following parts are used with TD-750 Cutting Systems Only and are not shown:
1 Internal Ribbon Cable to Remote Control (RC6010) 9-8662
1 Voltage Divider PC Board With Wires and Cables 7-3510
1 Voltage Divider PC Board 8-3375
1 Wiring Harness 8-3374
NOTE: Item can be purchased locally.
A-00692
1
2
3
4
3
4
5
PLASMA ON
AR C V OL TS
REM OT E S TA NDO FF C ONTR
OL
T.H.C. ACTIVE PIE RCE HT (in ches)
0.1
0.3
0.4
0.5
0.2
END OF C UT RETR ACT (% )
0
25
75
100
UP
DN
TORCH TORCH
MODE MODE
LIFTER LIFTER
SPEED SPEED
PIE RCE DEL AY (s ec)
0.5
1
2 3
0.75 0.25
0.1
AUTO HT FIND HT
HI
LO
