DDS Service Configuration
WPIM-T1/DDS User’s Guide 4-9
4.3 DDS SERVICE CONFIGURATION
This section provides step-by-step instructions for connecting the
WPIM-T1/DDS to a Digital Data Service circuit in a PPP or Frame Relay
environment. This example assumes the setup shown in
Figure 4-4 using
two CSX400s with WPIM-T1/DDS modules installed.

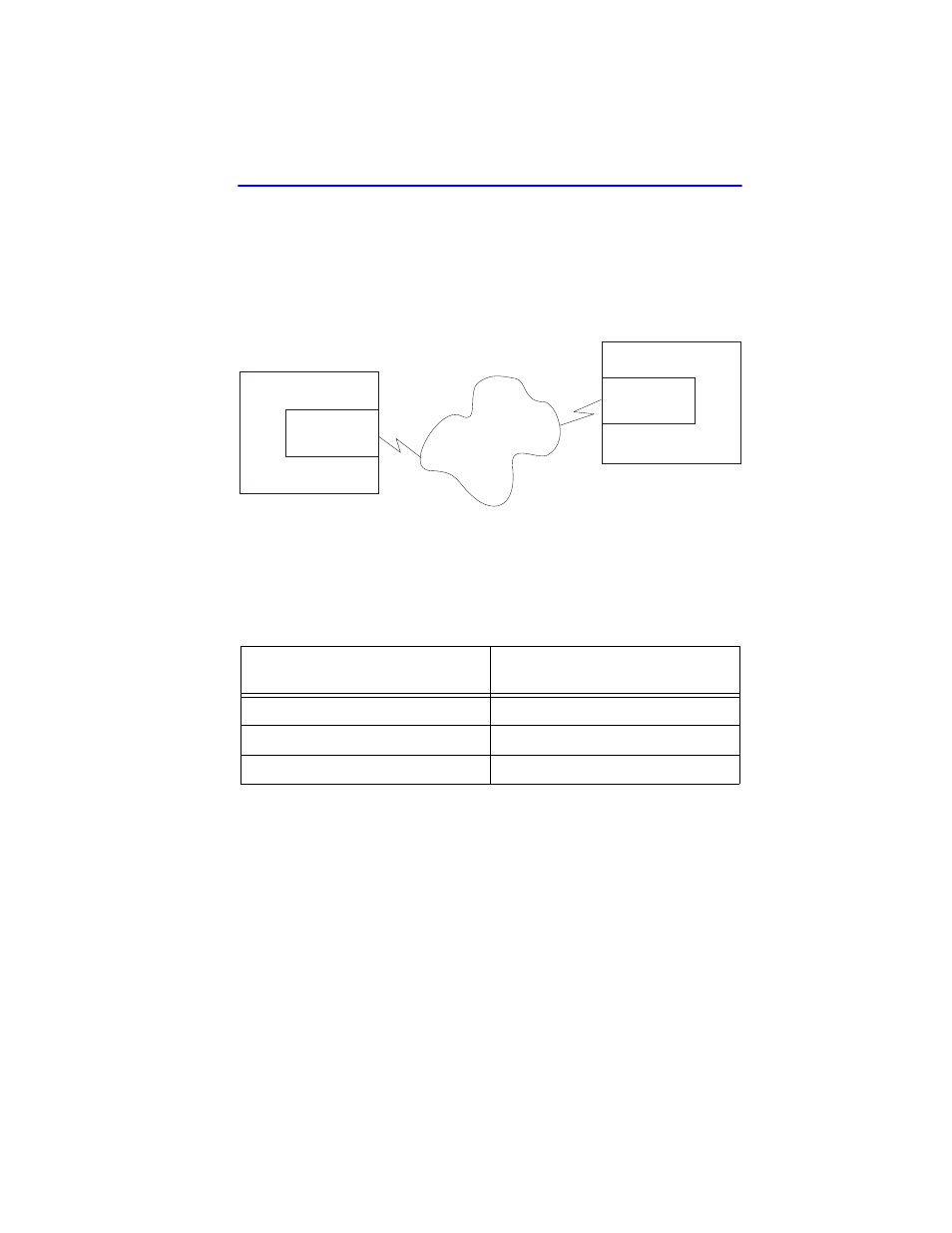

Figure 4-4 WPIM-DDS Interface Configuration for PPP
The line configuration information shown in Table 4-1 , must be supplied
by the service provider.
4.3.1 DDS Service Physical Configuration
Begin the DDS configuration by accessing the WAN Physical
Configuration screen (
Figure 4-1 ) through Local Management. To access
the WAN Physical Configuration screen, use the arrow keys to highlight
the WAN Setup option, then press ENTER. The screen shown in
Figure 4-1 displays. Proceed with the following steps:
1. Use the arrow keys to highlight the WPIM X field at the bottom of the
screen. Press the SPACE bar to select the number of the WPIM being
configured, then press ENTER.
Table 4-1 Telco Configuration Information
Configuration Information
Required By User Configuration Information
Supplied By Service Provider
Clock Source Telco provided or no clock source
Line Mode Primary or Clear Channel
FR-LMP (Frame Relay Only) Telco provided or user requested
Telco Cloud
2750_03
WPIM-T1/ DDS
in DDS mode
WPIM-T1/ DDS
in DDS mode
Host Platform
Site #1
Host Platform
Site #2
